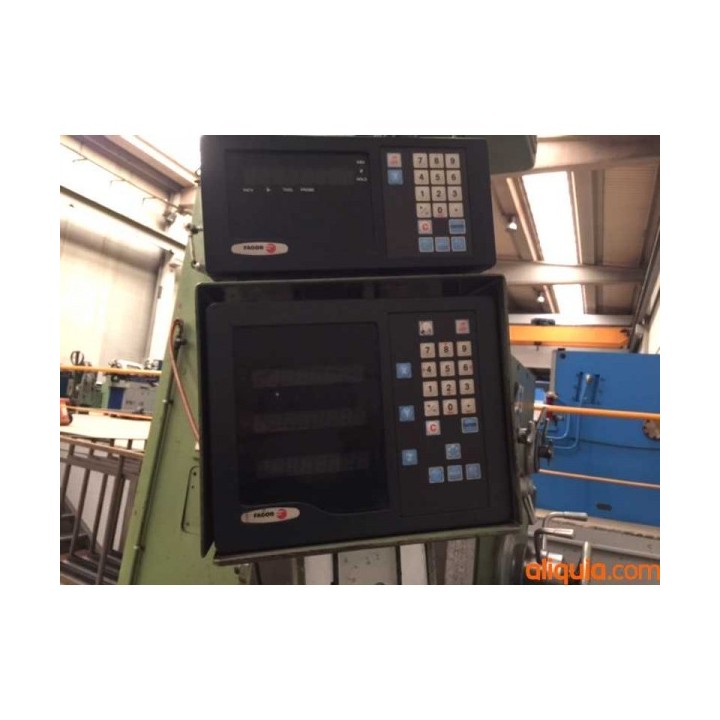

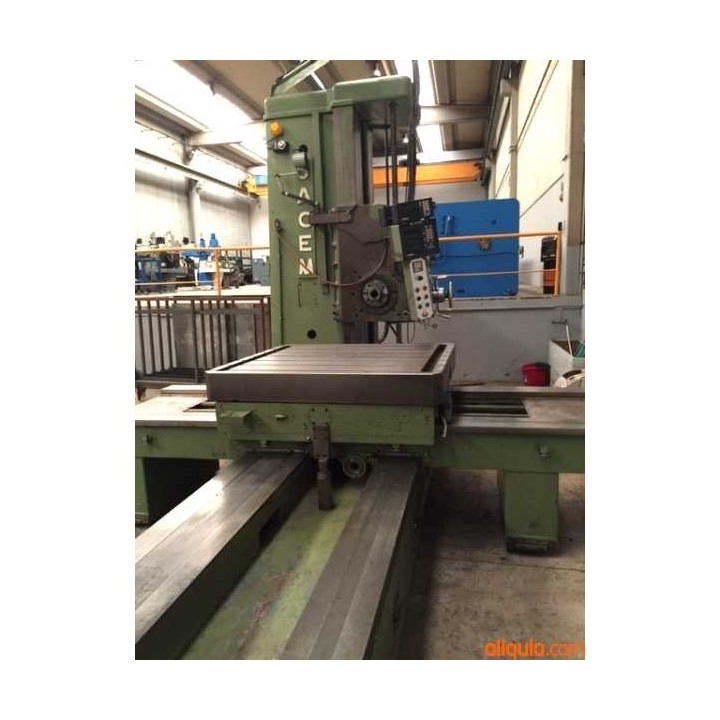

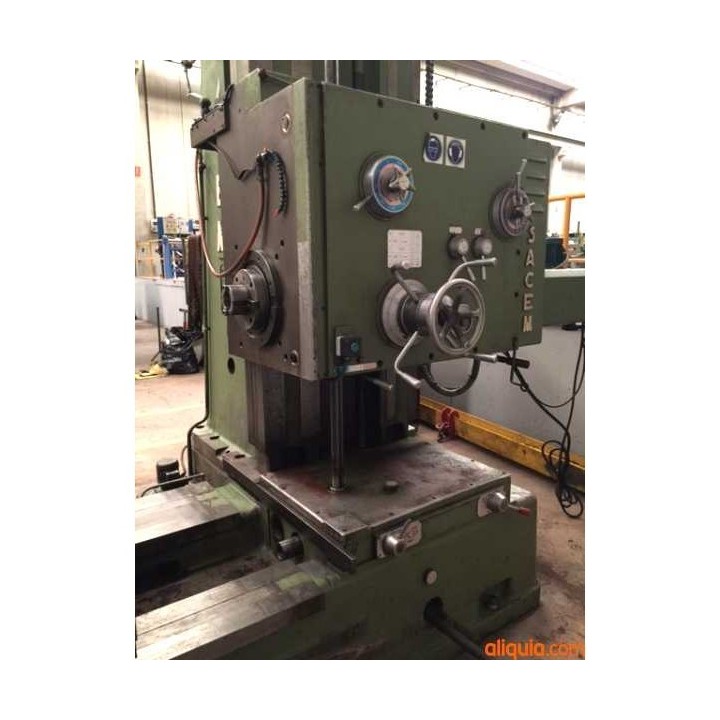

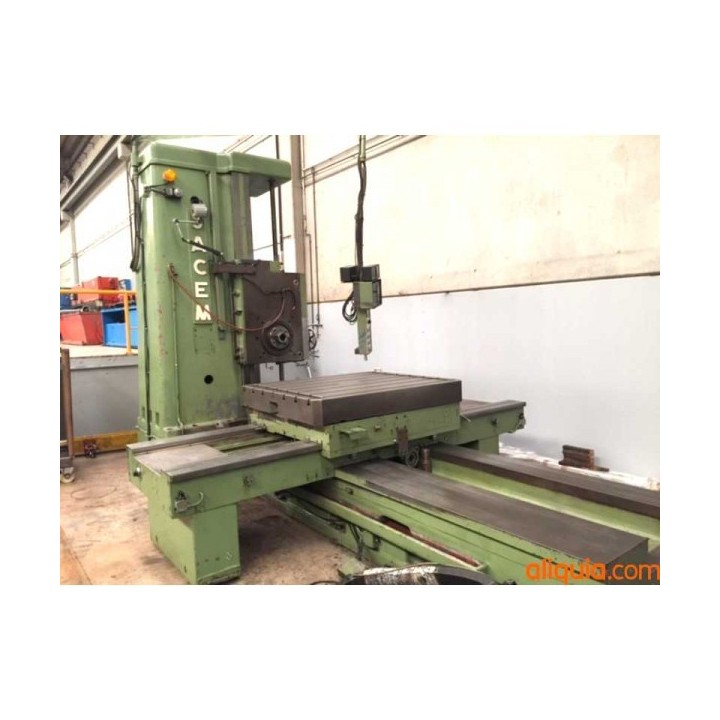

Mandrinadora SACEM, visualizador FAGOR

Features:

Diameter of the spindle main: 110 mm.
Inner cone of the main spindle: ISO 50.
Longitudinal displacement of the main spindle (shank): 900 mm
The spindle vertical course: 18.
Speed minimum and maximum: 5 to 1000.
Dimensions of the table rotating: 1.260 x 1,400 mm.
Quick March to the axes X, Y, Z and w: 5000 mm/min.
Transverse table course: 2,000 mm
Course longitudinal of the table: 1,500 mm.
March fast in all the movements: 2,000 mm/min.
Admitted on the table weight: 8.000 Kg vertical head course: 1,400 mm.
The drive motor power: 25 HP
