HVM-2300

Name: HVM-2300
Brand: ANAYAK
SKU: 3873

ANAYAK

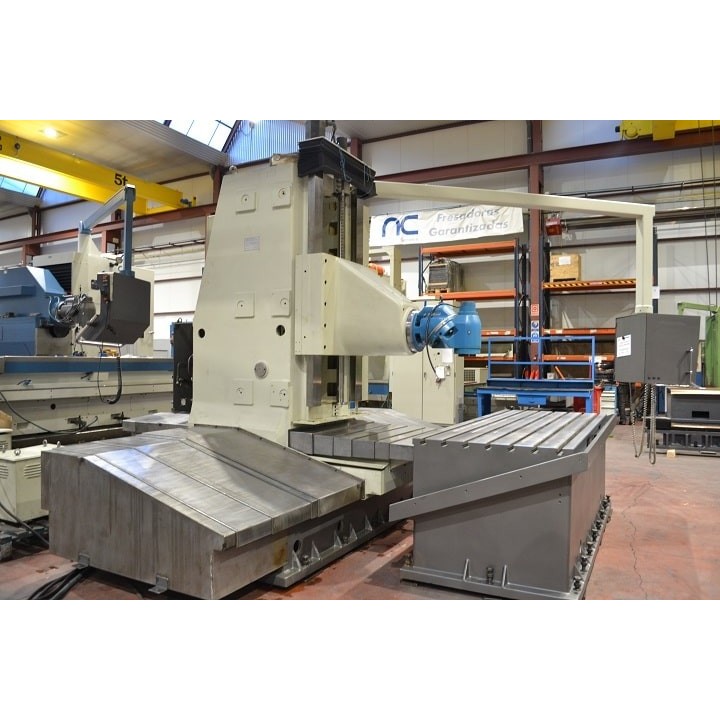

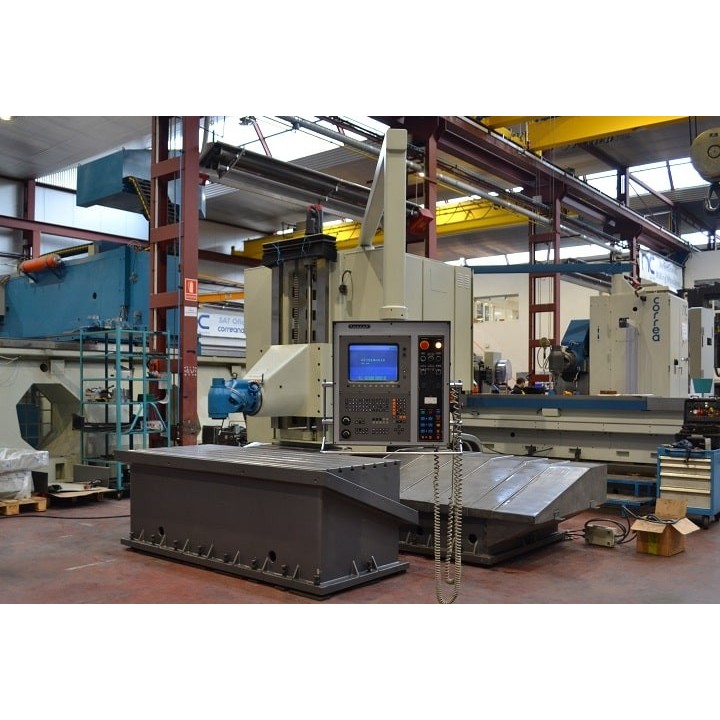

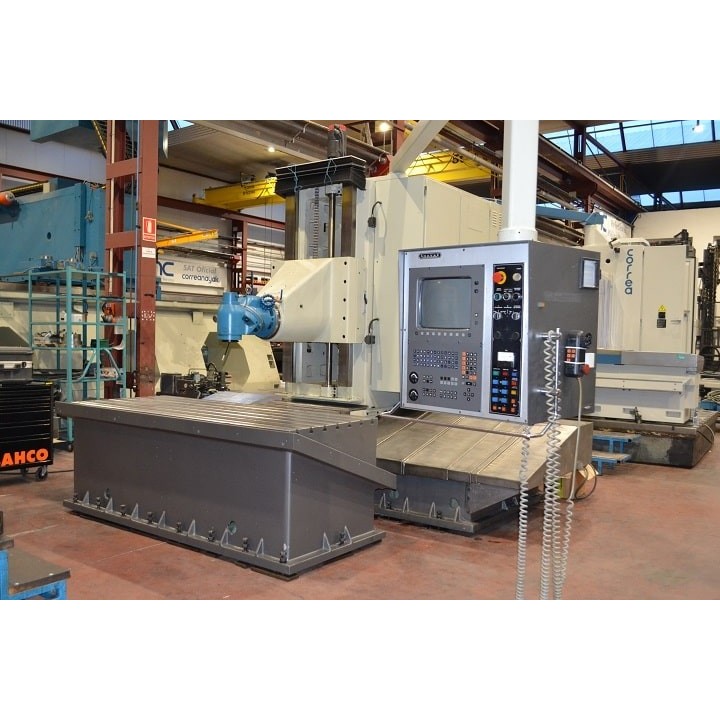

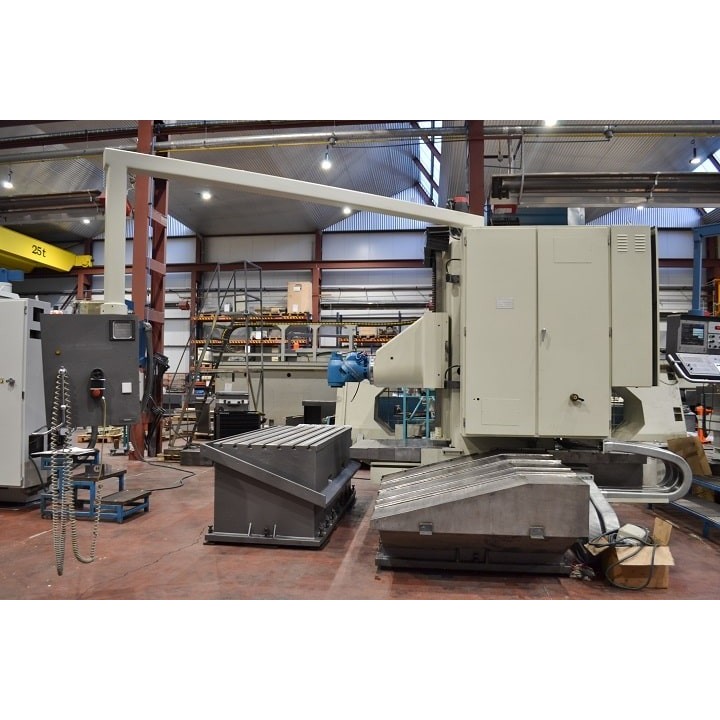

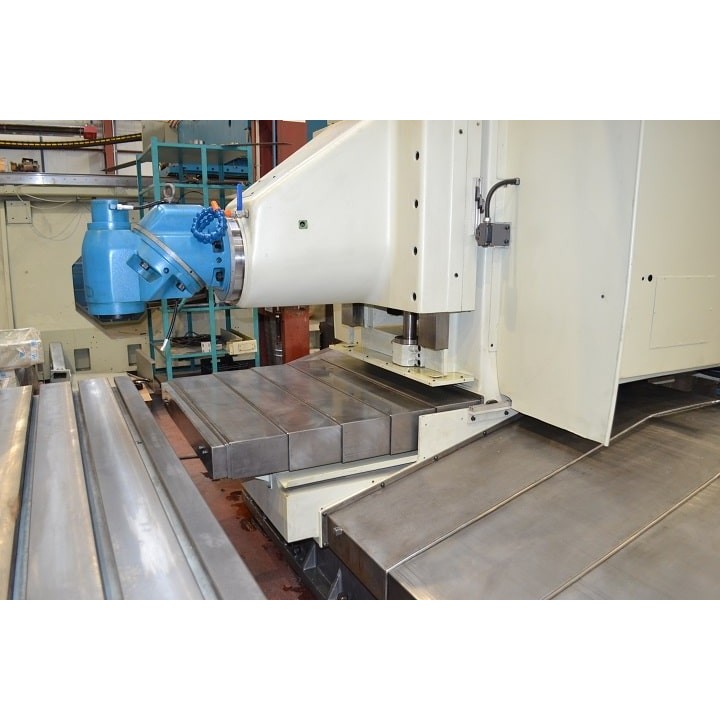

ANAYAK HVM-2300 machining center with fixed table and mobile column with Heidenhain control. Its size makes it ideal for small-sized machining and its reconstruction guarantees the reliability of its finish.
Milling machine rebuilt for sale and with guarantees.

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

ANAYAK HVM-2300 mobile column milling machine
Year of manufacture: 1991
Status: Rebuilt

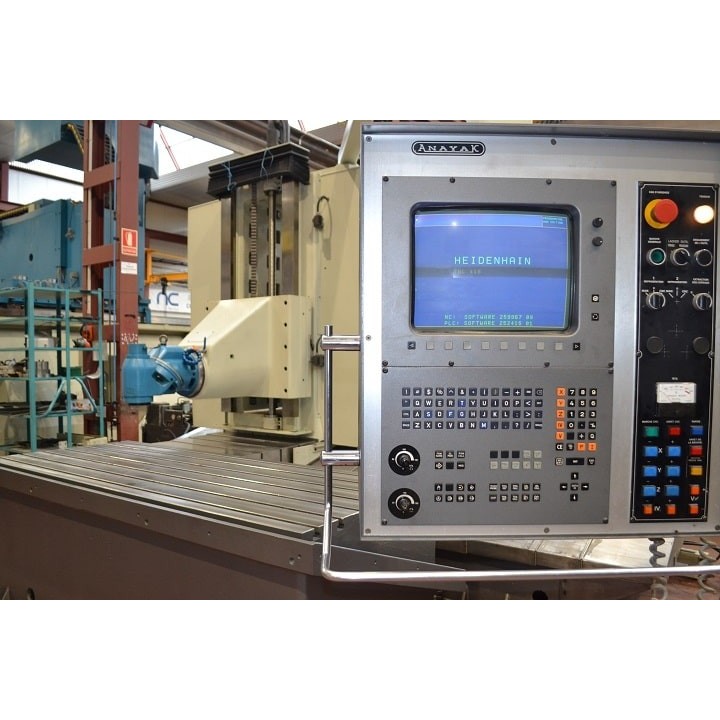

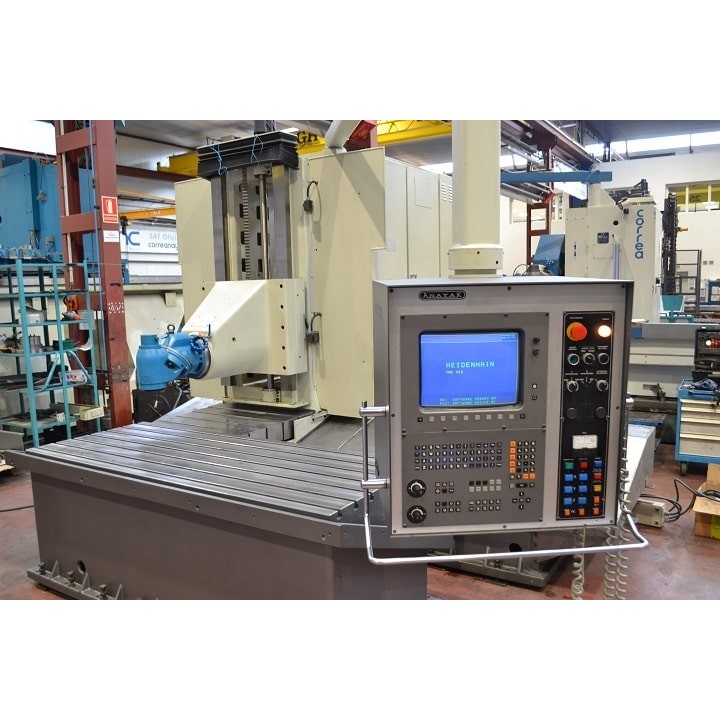

CNC numerical control HEIDENHAIN TNC-415

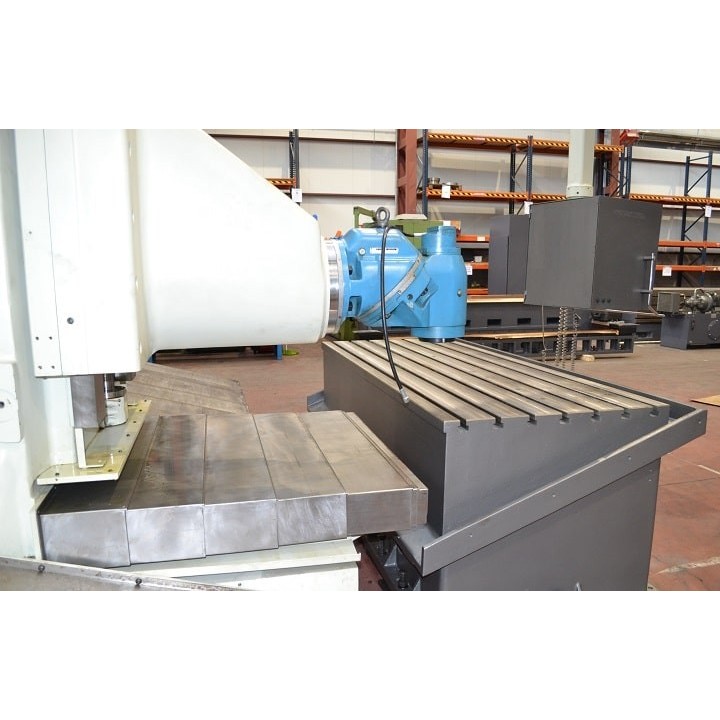

Table dimensions: 2,300 x 1,000 mm
Number of slots in T: 7
T-slot dimensions: 18 mm
X-Y-Z paths (mm): 2000 - 1000 - 1000

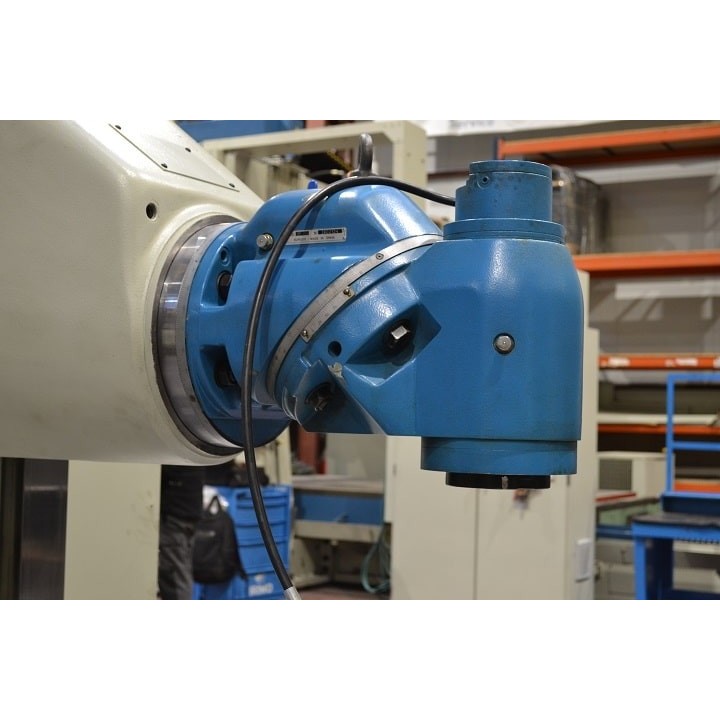

Head: Universal manual (U22)
Mooring tool: Hydraulic
Cone: ISO 50
Speed range: 60 - 2,000 rpm
Mandrel Power: 18-22 kW
Work advances: 10 - 3,000 mm-min
Fast advances: 10,000 mm-min
Maximum weight on table: 4,000 kg
But approximate machine: 21,500 kg
Machine dimensions: 7,230 x 6,240 x 3,460 mm
Longitudinal chip evacuator
Fairing
Warranty: Mechanical parts 6 months
