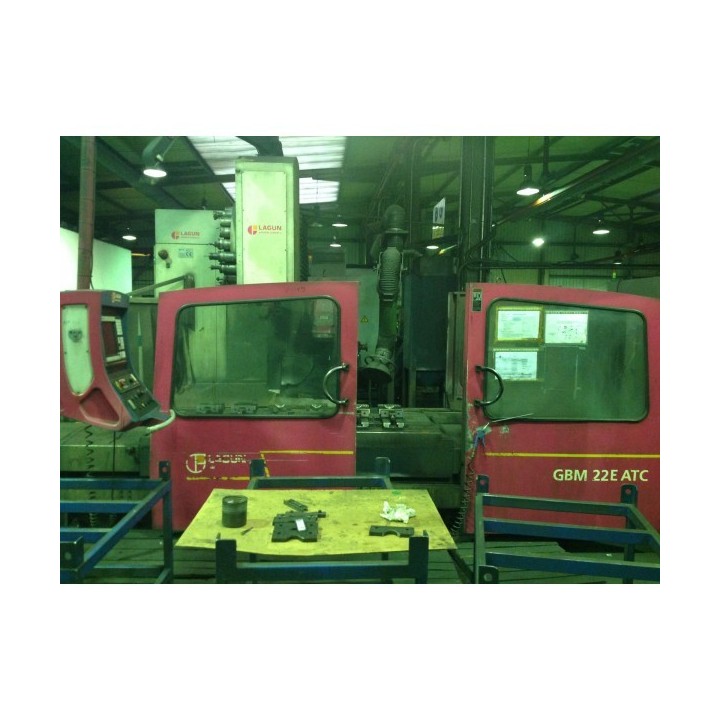

5-Axis CNC Bed Type Milling Machine LAGUN mod. GBM 22E

Table surface: 2200x1040 mm
Distance from Table Center to Column: 1217 mm
No. of T-slots and width: 7 - 22mm
Groove distance: 140 mm
Maximum weight on the table: 7000 kg
X- Axis travel: 2000 mm
Y- Axis travel:: 1000 mm
Z- Axis travel: 1000 mm
C- Axis travel: +/- 180°
A- Axis travel: +/- 180°
Spindle Cone: ISO 50
Main engine power: 22/27.5 kW
Speed variation continue: 50 ÷ 3000 rpm
Fast forward: 10000 mm/min

Weight of the machine: 15000 kg
