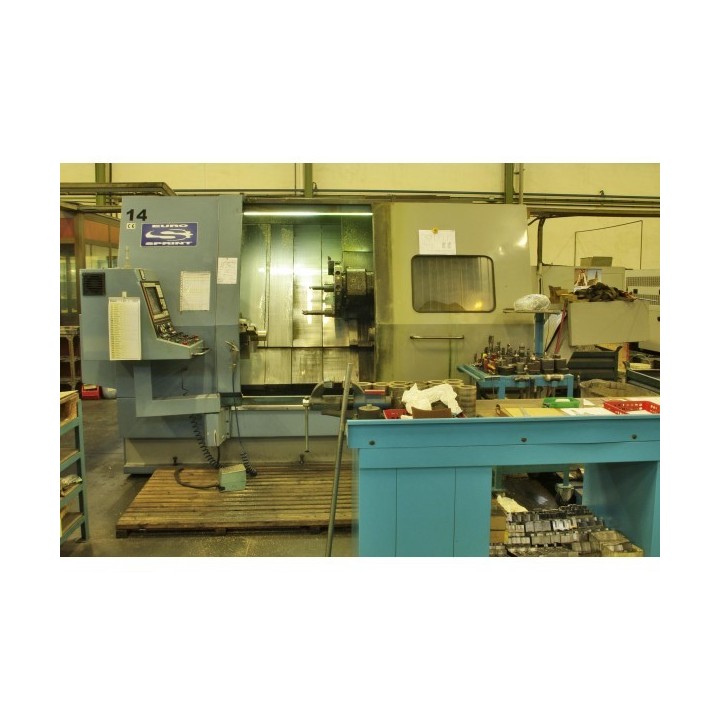

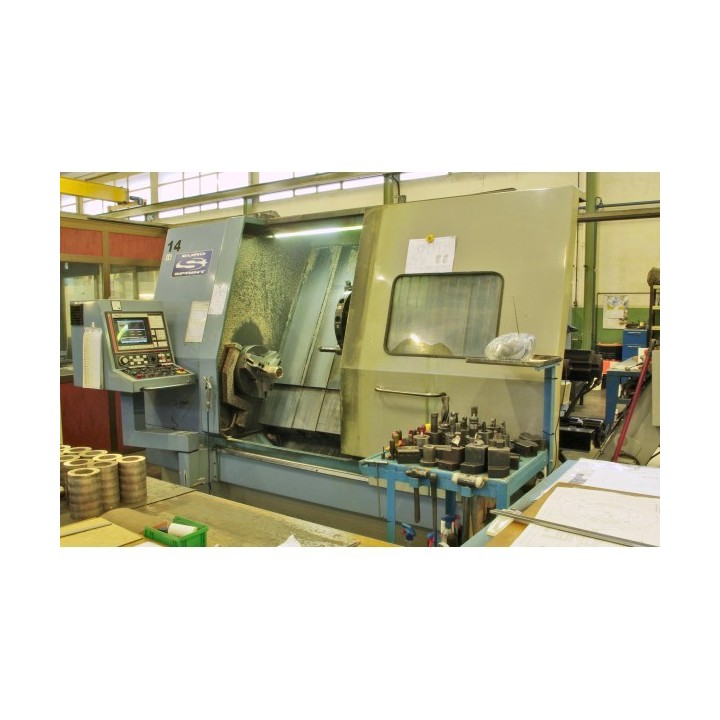

EUROSPRINT MODELO 80 CNC

Numerical Control, brand EUROSPRINT lathe, model 80 CNC/2 for work between points, plate, and bar.

1. CAPACITIES:
Diameter admitted extra bed 600 mm
Maximum diameter to mechanize 500 mm
Maximum travel longitudinal 1100 mm
Maximum travel cross 300 mm
Distance between plate and turret 900 mm maximum

2. HEAD:
Diameter of 140 mm spindle bearings
Main shaft drilled to 90 mm
A2-8 spindle nose
Maximum passage of round bar with 80 mm clamp
Maximum diameter of 315 mm plate
25-3000 rpm infinitely variable speeds

3 COUNTERPOINT:
100 mm shank diameter
Hydraulic travel of 150 mm shank
N5 morse taper
Force max 1500 kg

4 TURRET:
Number of sides 12
Chuck VDI-3425 (straight shank) of Ø40 mm with blade holder for 25 mm exteriors and interiors of 10 to 40 mm.
Fast shaft X 12.5 m/min forward
Fast-forward axis Z 15 m/min
