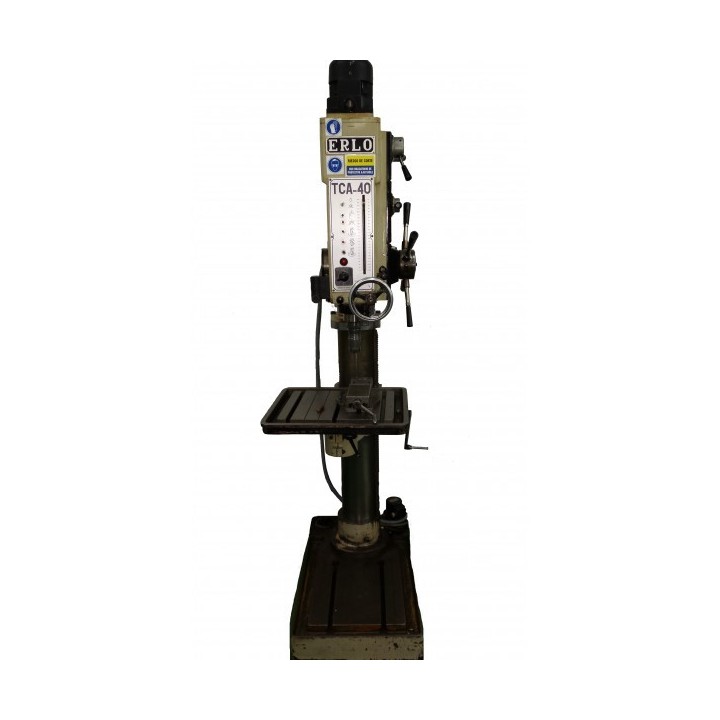

ERLO TCA-40

Column drills with different systems of work advances, with automatic advance.
Steel drill capacity from 40 to 70 mm, with extensive standard equipment and solid construction, designed for comfortable operation.
CHARACTERISTICS
Chap. Max. of steel drill of 70 Kg. 40 mm- 1 37-69 "
Chap. Max of drill in foundry 200 Br. 45 mm.-1 49-64 "
Chap. Max. of threaded in steel 70 Kg. M.32- 1 1-4 "
Morse Cone No. 4
Maximum drill depth 240 mm.- 6 57-64 "
Maximum depth of thread 240 mm.- 6 57-64 "
Drill feed 0.10-0.20-0.30-0.40
Main motor 2 HP
Weight admitted in the work table 250 Kg.
Standard Speeds at 50 Hz - 1500 rpm 68-100-150-200
Models TCA-TCE 295-440-565-855-1270
Standard Speeds 1500 rpm (18-58) (27-88) (41-131) (52-166) (79-252)
Models TCA-TCE (118-377) (149-476) (226-723) (338-1080)
Cooling with moto pump of 0,10 HP
Approximate weight of the machine 640 Kg.
Packing volume 2.19 m³
