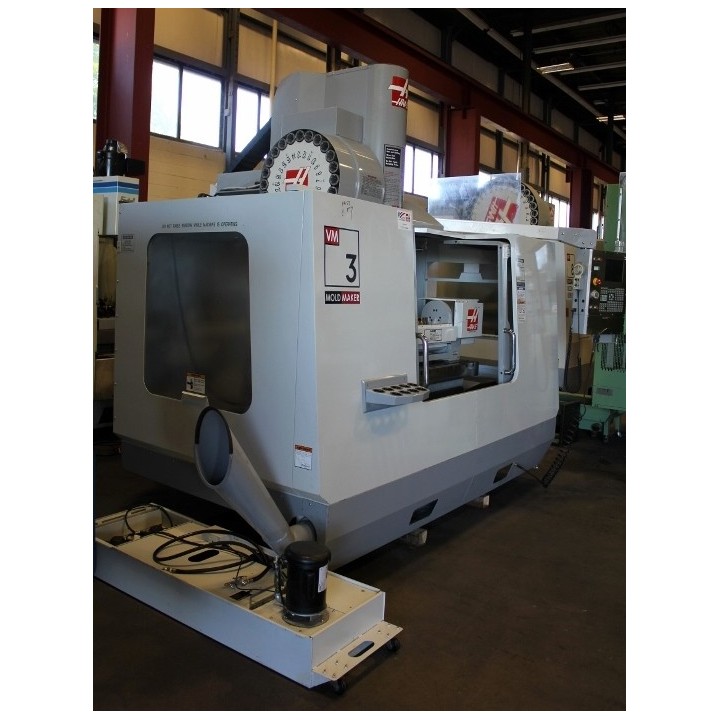

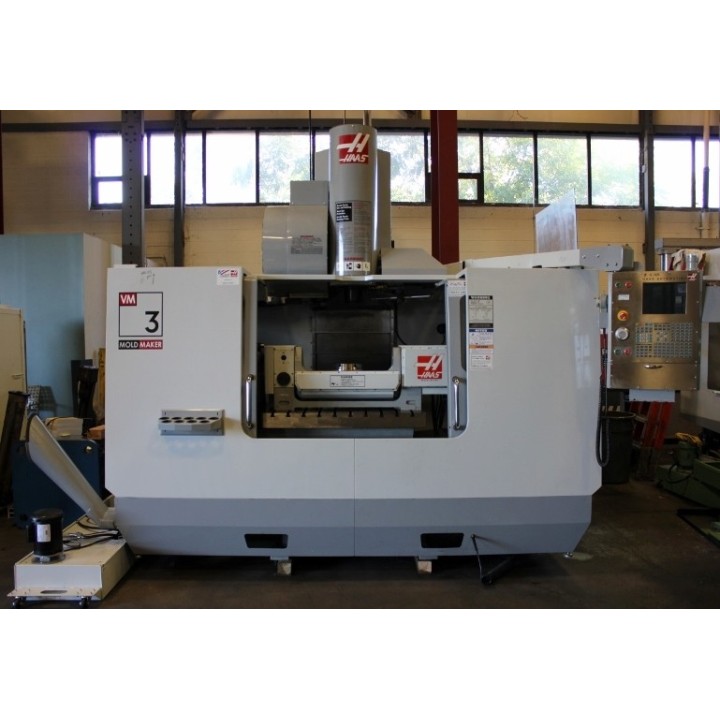

VM-3

Equipped With:

Replacement spindle cartridge purchased from HAAS & installed in October of 2016
All cast iron construction
Brushless servo amplifiers and servo motors on all five axes
25" x 54" work table with t-slots running in both X and Y directions, precision dowel
pin bores, and drilled/tapped holes

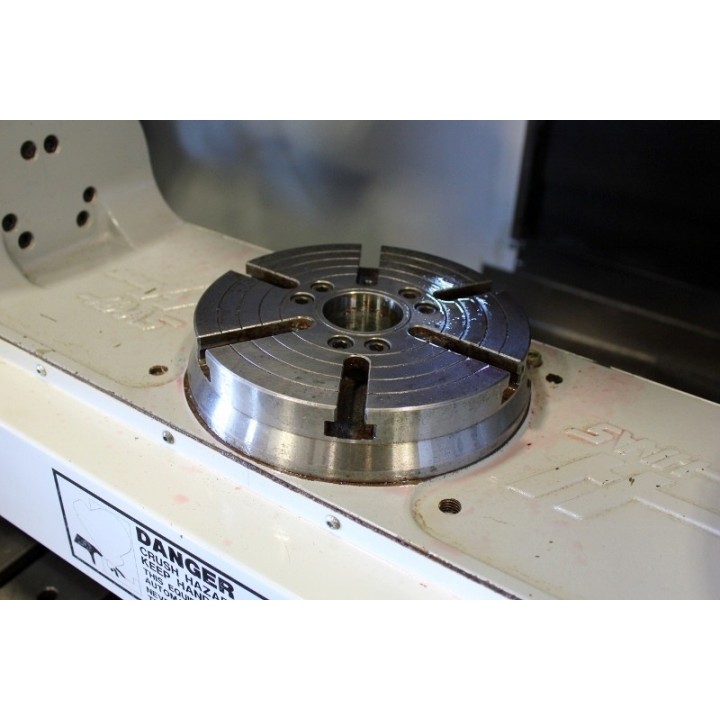

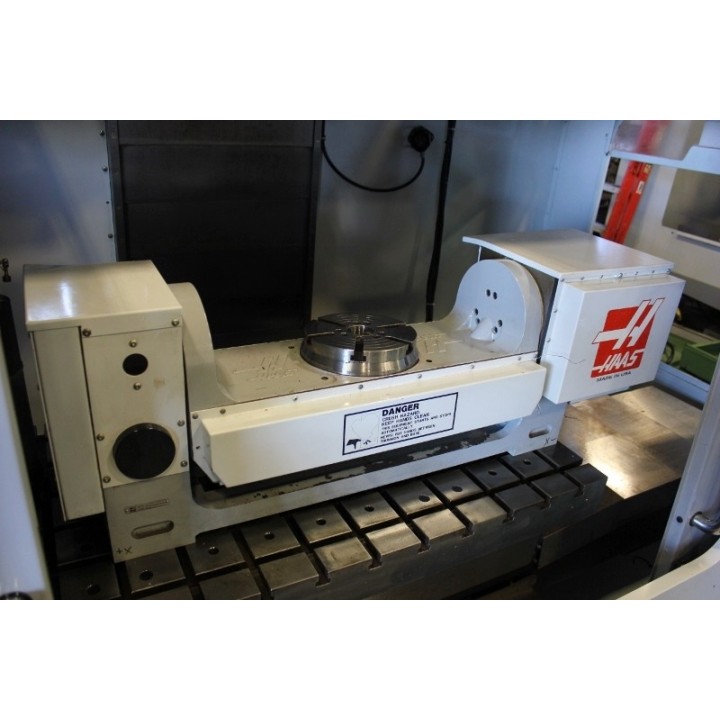

#TR210H HAAS 8.27" diameter t-slotted & programmable two-axis trunnion CNC
rotary table (S/N: 901192) with brushless servo drive motor, table mounted air
regulator and pressure valve
HAAS five-axis CNC with 15" color LCD monitor, remote jog handwheel,
high speed machining, rigid tapping, coordinate rotation and scaling, M19
spindle orientation, user definable macros, power failure module, dual RS-232
serial ports, USB & ethernet ports and floppy disc drive
Wireless intuitive probe system (less CAT40 RENISHAW probe)
Twenty-four position side-mount automatic toolchanger with (20) CAT-40 tool holders
Programmable coolant nozzle
Telescopic way covers
Work light
Leveling pads
Chip auger
Automatic air gun
Automatic BIJUR lubrication system
External coolant pump and tank mounted on wheels
30 H.P. vector inline BALDOR direct-drive spindle motor (Replaced in November 2016)
