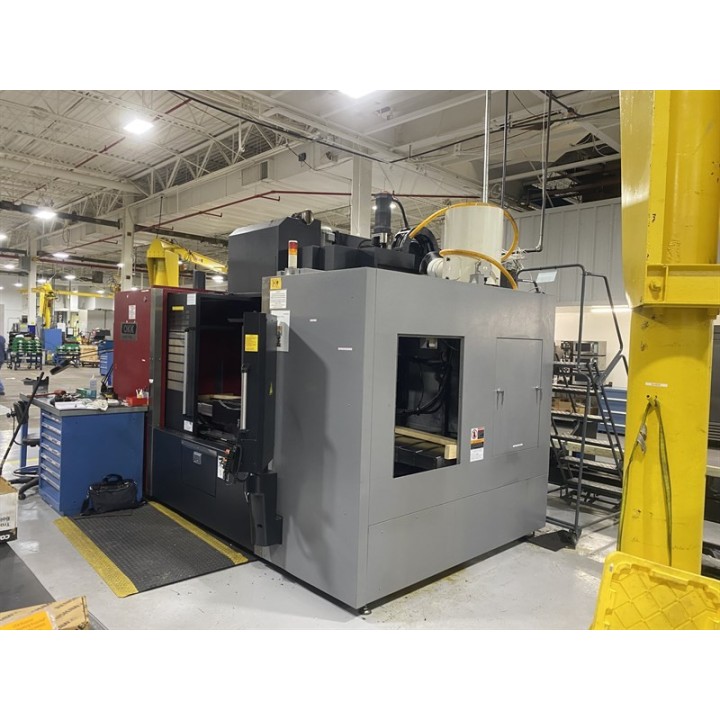

VM76R

number Of Tables / Pallets 1, Table Size 61.02" X 29.92", Weight On Table 3306.9 LBS., Spindle Nose To Table 5.91 ~31.89", X - Axis Travel 60.63", Y - Axis Travel 29.92",Z - Axis Travel 25.98", Rapid Traverse X, Y, Z 945, 945, 787 IPM, Cutting Feed Rate 787 IPM, Spindle Speed 12,000 RPM, Spindle Taper 50 CT BIG PLUS, Main Motor 40 HP, Automatic Tool Changer 60 ATC, Tool Diameter 4.33", 7.87", Tool Length 13.78", Tool Weight44 LBS., Machine Weight 28,660 LBS,DATA SERVER W/ ETHERNET WIRED FOR 4TH AXIS, CUSTOM MACRO B RIGID TAPPING , HELICAL INTERPOLATION (2)CHIP AUGER W/ UPRIGHT CHIP CONVEYOR, FULL ENCLOSURES 100O PSI COOL JET SYSTEM, AUTO TOOL LENGTH MEASUREMANT SPINDLE CHILLER,LNS LIFT UP CHIP CONVEYOR DUAL KURT VICES WITH AUTO CLAMPING,TSUDAKONA RNA 320L 4TH AXIS ROTARY TABLE W/HYDRAULIC TAILSTOCK RENISHAW WORK PROBE,MIST COLLECT SYSTEM EXTENDED MEMORY,
