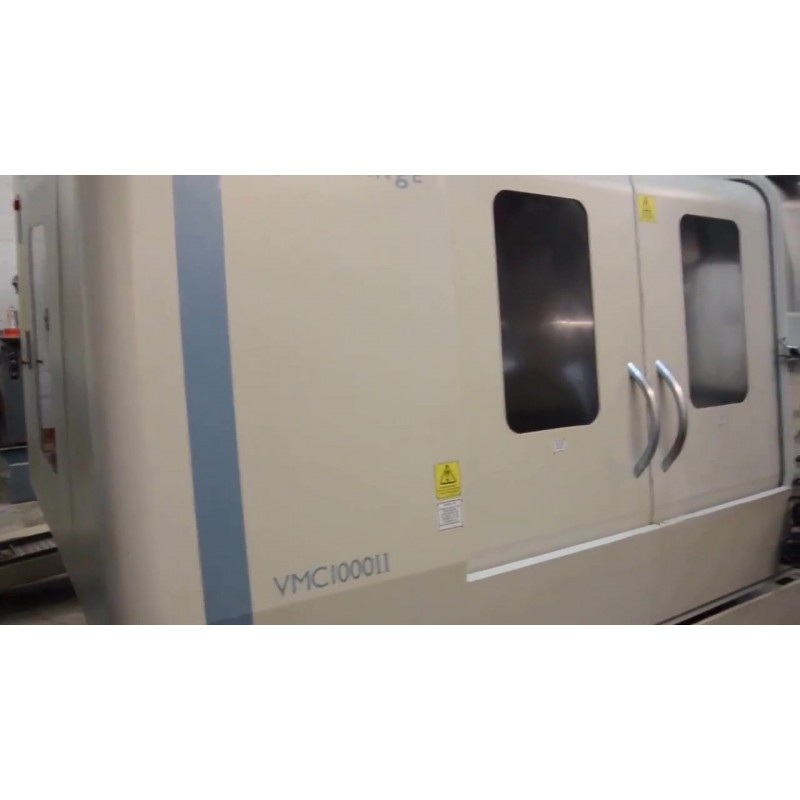

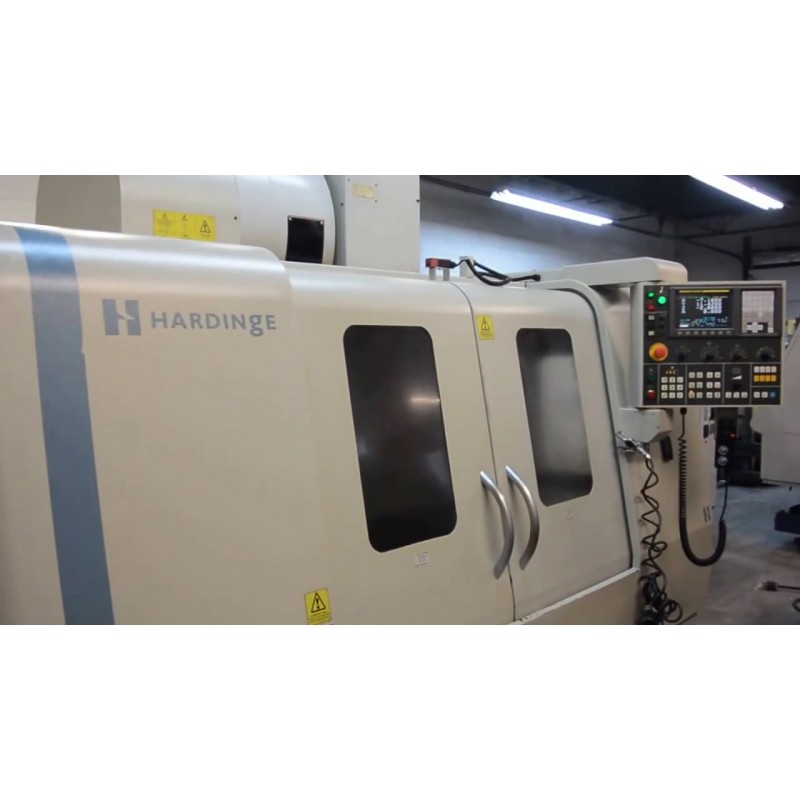

VMC1000II VMC

X-AXIS TRAVEL .......................... 40.2 "
Y-AXIS TRAVEL .......................... 20.1 "
Z-AXIS TRAVEL .......................... 20.1 "
TABLE SIZE ............................. 20 "X 44"
MAXIMUM TABLE LOAD ..................... 1,540 LBS
SPINDLE NOSE TO TABLE SURFACE .......... 6.1 "A 26.1"
SPINDLE CENTER TO COLUMN ............... 23 "
SPINDLE SPEED RANGE .................... A 8,000 RPM
SPINDLE TAPER .......................... CAT 40
SPINDLE MOTOR ........................ 17.5 HP
AUTOMATIC TOOL CHANGER (SIDE MOUNT) .... 24 POSITIONS
EQUIPPED WITH:

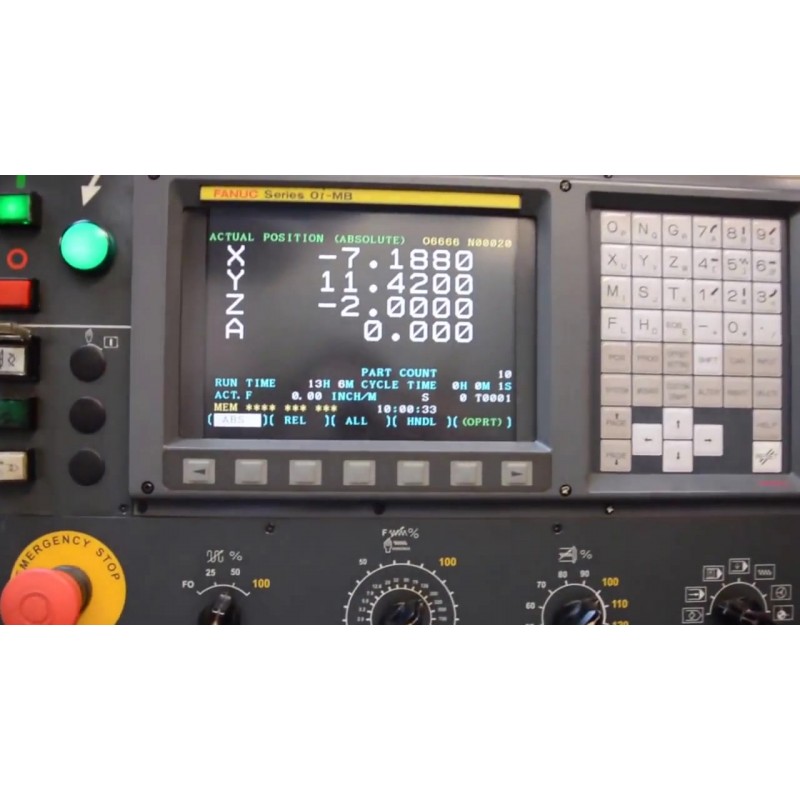

- FANUC OI-MB CNC CONTROL WITH:
- DNC, FLASH CARD CAPACITY, GRAPHIC DISPLAY

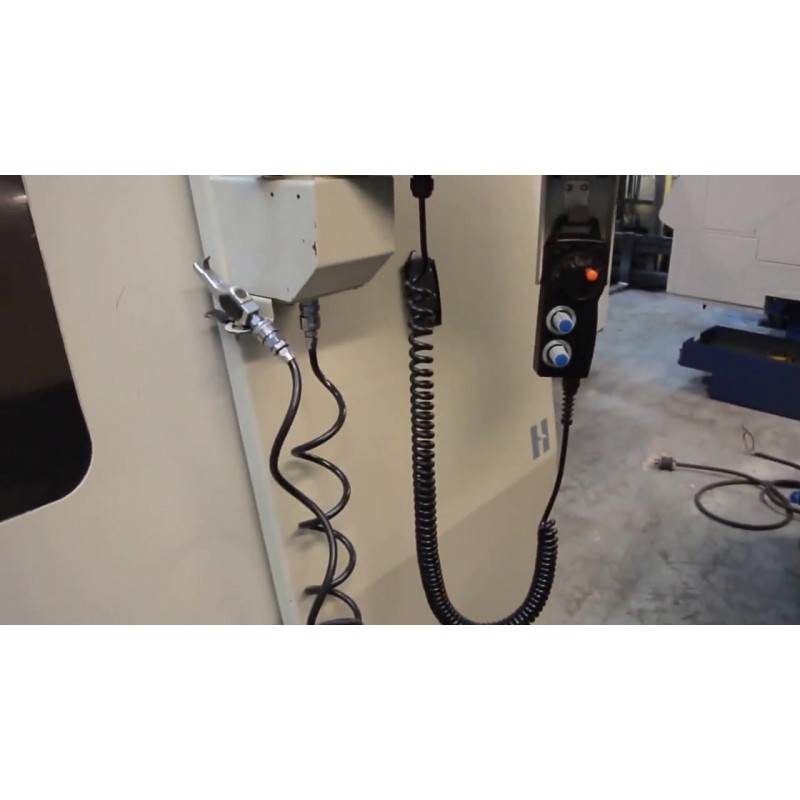

- REMOTE PULSE GENERATOR

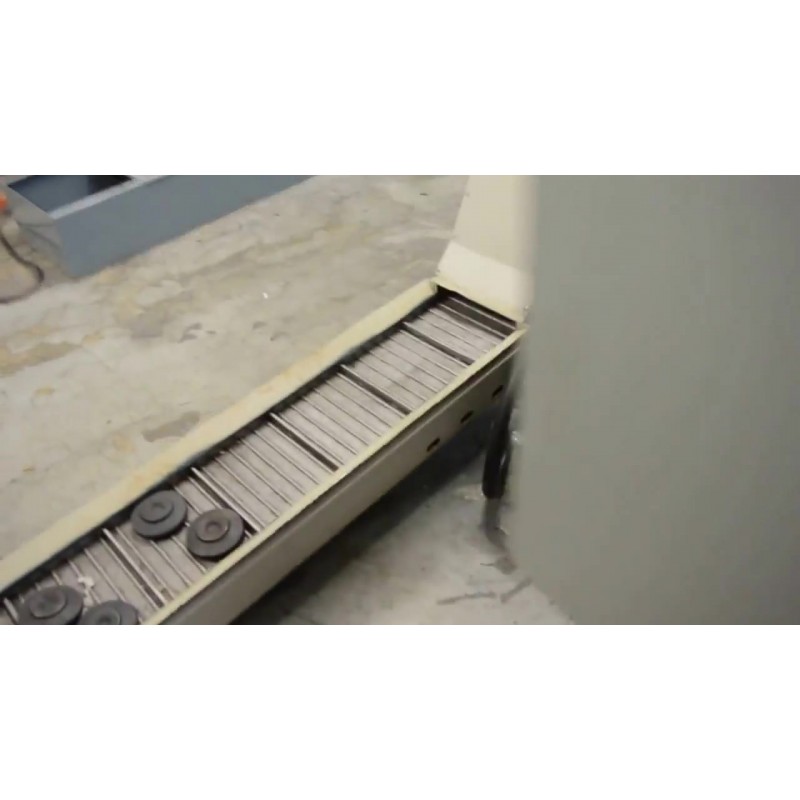

- CHIP CONVEYOR
- WIRING FOR 4TH AXIS WITH 4TH AXIS COLLET INDEXER
- RIGID TAPPING
- THROUGH-TOOL COOLANT
