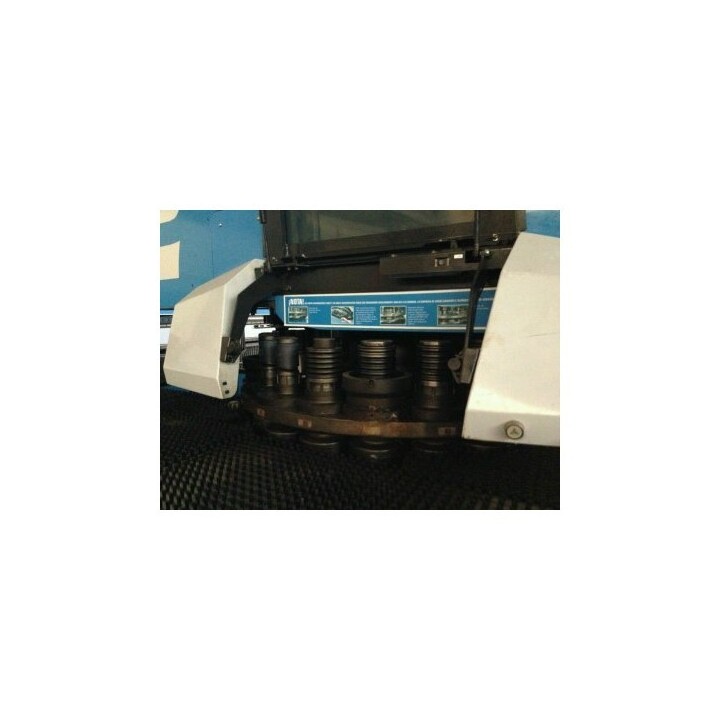

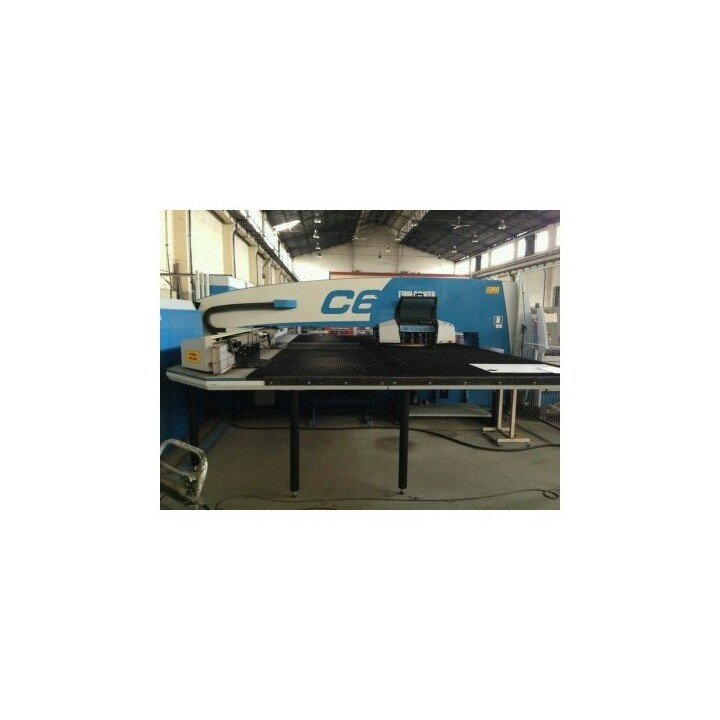

Punching machine Finn Power C6

Force of 300 kN (33 U.S. tons). Number of stations / Max. tools in the turret 20 PC / PC 200, Thick Turret tools, diameter punch, Max. 89 mm (3.5 ""), CNC tool index: number of standard stations 2 pieces (max. 10 PCs) / 80 pieces, punch's diameter, Max. 89 mm (3.5 ""), rotation of the tool, Max. 166 r / min, material thickness, Max. 8 mm (0.31 ""), Max weight sheet metal 200 kg (440 lbs), pneumatic clamps, 3 pieces (optional 4 pieces), C6 Max. sheet size X x and reposition 3074 mmx there are 1.565 mm (12.1 "x 61.2"), C8 Max. sheet size X x and without reset 4300 mmx 1565 mm (169.3 "x 61.2"), X-cross 3,144 mm (123.78 ""), X-Cross, speed Max. 120 m / min (4724 "/ min"), and-transverse 1,615 mm (63.5 ""), and-cross, speed Max. 60 m / min (2,362 ""), positioning speed, Max. 150 m / min (5905 "/ min"), punching accuracy according to LKP-7100, deviation location holes (axes X / and), Max. 0.1 mm (0.004 ""), distance deviation from hole to hole (axis X / and), max ± 0.05 mm (0.002 ""), Angular eviation d (tool CNC Index) max. ± 0.1 ° Precision positioning according to VDI / DGQ 3441, Pa positional deviation (axes X / and) 0.08 mm / ± 0.04 mm (0.003 "/ ± 0,0015"), positioning scatter Ps (axes X / and), 0.04 mm / ± 0.02 mm (0,0015 "/ ± 0.001"), 30 r turret rotation speed / min, 1 hour 3 s tool change, job Hopper (optional), Max. part 500mmx size 500 mm (19.7 "x 19.7"), Control Siemens Sinumerik 840 d CNC, Siemens working memory: 1. 5 MB, connection internet 100 MBs if, 13,000 pounds 28.660, hydraulic unit machine weight drained weight 600 kg (1322 lbs), oil tank 200 l (53 gal.) volume, oil radiator, cooling 0.64 power kW / ° C (0.36 kW / ° F) 2.1 m air flow oil cooler / s (74 cf / s)Electrical connection (E1), average consumption of power 15 kVA / 13 kW power connection requirements 35 kVA, fuse 3 x 50 A (3 x 400 V), connection of compressed air (P1): Min. air pressure of 6 bar (90 psi) Max. Air 5 Nl / s (11 cubic feet per minute), average air consumption 2,5 Nl / s (5.5 cubic feet per minute).
