DELTECO PE160 PRESS

DELTECO PE160 PRESS
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 14.500 kg
Pressing force 1.600 ton
Motor power 17,20 kW
Voltage 380 V (three-phase)

Occasional seller

R
RETMA EUROPA, S.L. Private seller
Member since 2017
71 ads online

SEND REQUEST

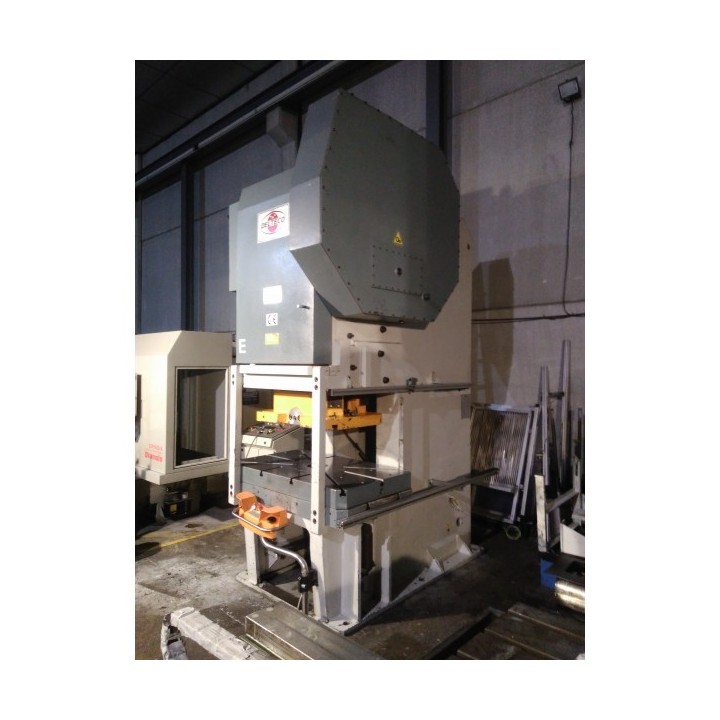

PRENSA DELTECO PE160
PRENSA DELTECO PE160
PRENSA DELTECO PE160
PRENSA DELTECO PE160
PRENSA DELTECO PE160

DELTECO PE160 PRESS

Lifting points 2
Strokes per minute in continuous operation 50
Maximum stroke 160mm
Slide adjustment 140mm
Screw adjustment 120
Max. RPM of flywheel 330
Installed power 15 + 2.2 Kw
Voltage 380V
Nominal force 1600 Kn
Press weight 14,500 Kg
Normal stop position T.D.C.
Max. weight of moving die part 120 Kg.
Minimum stroke 20mm
Maximum closed die height 540mm
Total stopping time 327 ms.
Safety distance with controls 523mm
Safety distance with light curtain 523mm.

Largest die characteristics:

Maximum weight 240 Kg
Length 800mm
Width 550mm

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: Up to 1,000 mm
  • Width: Up to 1,000 mm
  • Motor power: 15 - 30 kW
  • Tension: 380 V (three-phase)
  • Bending/pressing force: More than 600 tons
  • Condition: Array
  • Weight: 0.000000
