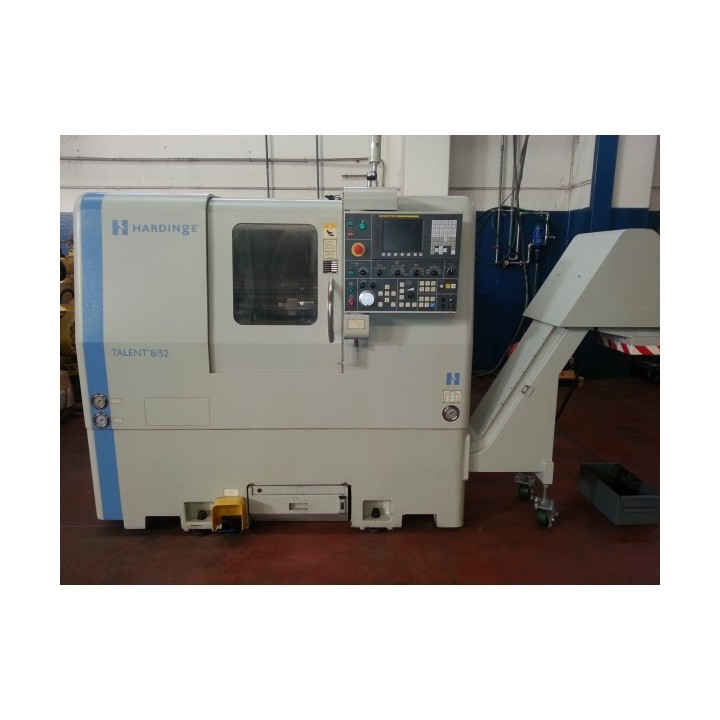

8/52 tools - powered by HARDINGE talent

Chuck
A2-6 spindle accessory
Steady rest (max) 52 mm
Turning diameter (max) 284 mm
Turning length (max) 381 mm
Swing diameter (max) 457 mm
Spindle speed 625/5,000 rpm
11 kW spindle power
136.9 Nm spindle torque

Axes
X / Z axis travel (max) 228/406 mm
X Z axis speed 30 m/min
17,907 N Z thrust

Turret
Bidirectional turret indexing
12 stations
12 motorized stations
Indexing time 0.78 sec
Max. driven tool speed 5,000 rpm
Max. driven tool power 3.7 kW
Max. torque 28 Nm

Control unit
32-bit Fanuc Oi-TB control model

Machine dimensions
1,998 mm length
3,028 mm length with conveyor
1,650 mm width
1,751 mm height
Weight (approx) 2,794 kg

Accessories
Chip conveyor – 125 liter coolant tank – fume extractor – 3 driven tool holders

Terms of sale
Excluding transport
Excluding installation
