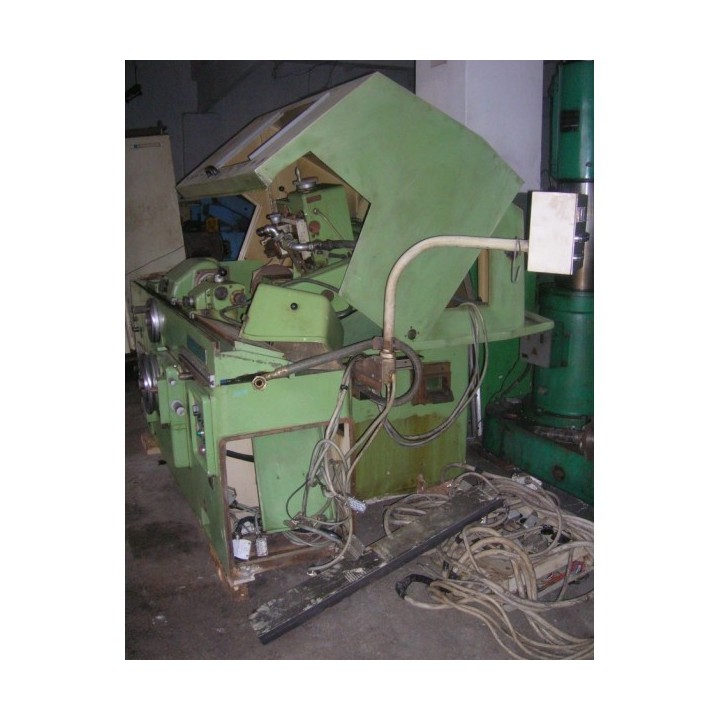

Reishauer U.S. Thread Grinder

Reishauer U.S. Thread Grinder


Some data:
Reishauer U.S. Thread Grinder
1982 year of manufacture
Reishauer, Switzerland
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Grinder type Interior
Wheel diameter 100 mm

Occasional seller

S
STAN MT LLC Private seller
Member since 2017
80 ads online

SEND REQUEST

Thread grinder Reishauer US


Specification:

Internal thread grinder
Grinding length: 100 mm
Distance between centers: 860 mm
Thread diameter: min: 14 mm - max: 250 mm
Maximum swivel angle: 40 degrees
Grinding wheel:
- Diameter: min. 8 mm, max. 100 mm
- Width: min. 3.5 mm, max. 24 mm
Wheel speed:
- From 4800 rpm to 11000 RPM
- 11600 rpm to 27000 rpm
Workpiece spindle speeds:
Variable 0.40 rpm to 160 rpm
Power requirement 50 Hz - 3 x 380 volts - 16 kVA
Dimensions:
- Length: 1855 mm - Width: 3500 mm - Height: 1700 mm
Weight: 4850 kg

Good operational condition. There is a complete set of change gears and a dresser unit.
No cooling tank.

  • Seller's country: It seems like the text you provided ("UY") is too short to translate meaningfully. "UY" could be an abbreviation or a code (e.g., Uruguay's ISO country code). Could you please provide the full text you'd like translated from Spanish to English?
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Long: Up to 1,000 mm
  • Width: More than 3,000 mm
  • High: 1,500 - 2,500 mm
  • X Travel: Up to 500 mm
  • Type of grinding machine: Interior
  • Wheel diameter: Up to 200 mm
  • Condition: Array
  • Weight: 0.000000
