H-Frame 200 Ton

Emanuel 200 Ton

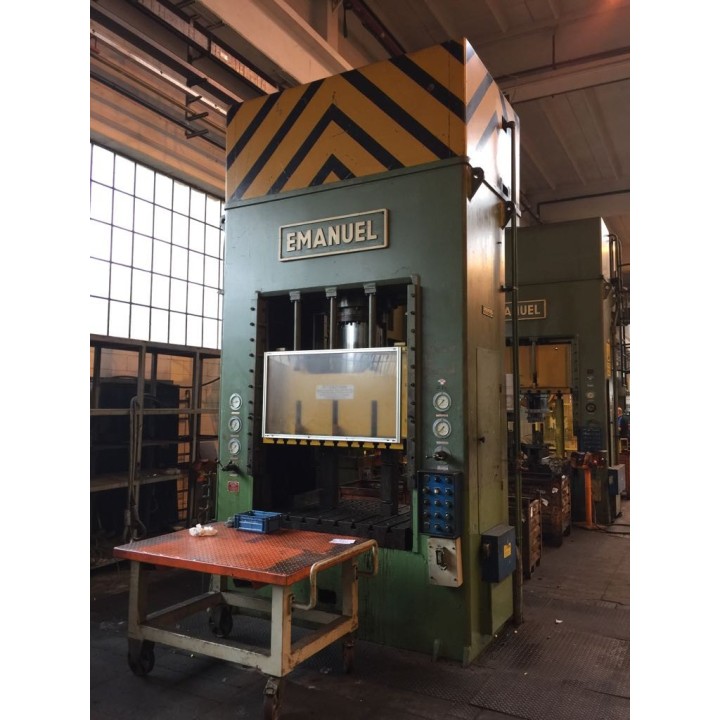

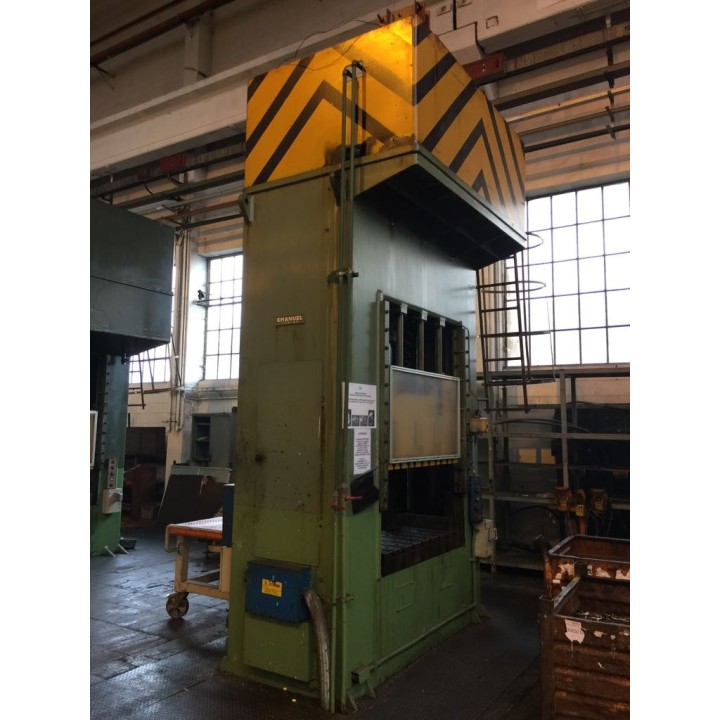

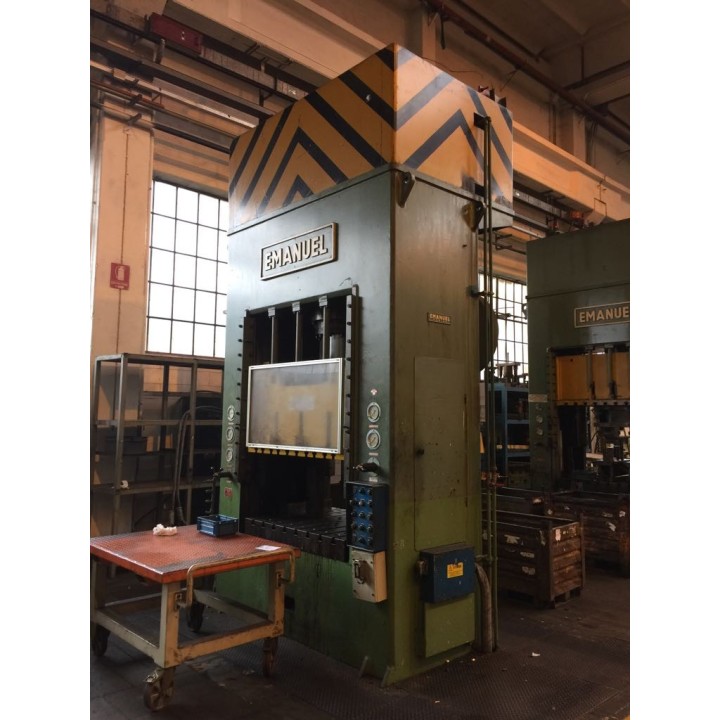

EMANUEL 200 ton H-Frame Hydraulic Press
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer EMANUEL 200 Ton
Condition Used - Working
Price type On request

Technical specifications

Length 2.400 mm
Width 1.500 mm
Height 5.000 mm

Occasional seller

V
Valmatrading GmbH Private seller
Member since 2017
6 ads online

SEND REQUEST

H-Frame 200 Ton
H-Frame 200 Ton
H-Frame 200 Ton

Nominal power 200 tons
Closed die height 900 mm.
Fixed stroke slide 700 mm.
Table dimensions 1300 x 1000 mm.
Ram dimensions 1300 x 1000 mm.
Clearance between uprights 1350 mm.
Maximum distance table - ram (TDC) 1000 mm
Lower cushion 1
Stroke rod extraction 250 mm.
Maximum upper cam extraction 190 mm.
Overall dimensions 2400 x 1500 x 5000 h

  • Seller's country: Austria
  • State: Used - Functional
  • Long: 2,000 - 3,000 mm
  • Width: 1,000 - 2,000 mm
  • High: More than 3,500 mm
  • Bending/pressing force: 150 - 300 tons
  • Condition: Array
  • Weight: 0.000000
