Step regulators, temperature and pressure drops

Flow, temperature, and pressure drop regulators
Double-seat regulating valves for water and steam

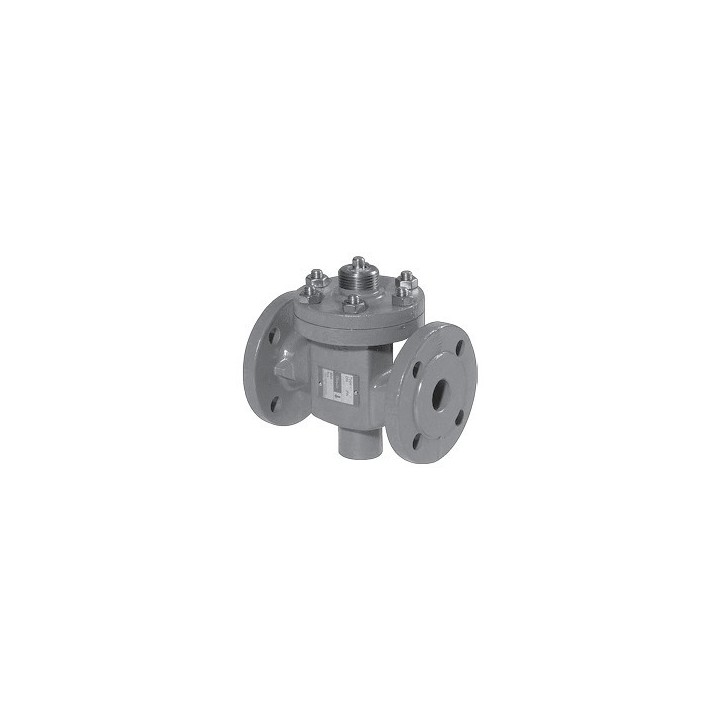

Single-stage iron double-seat regulating valve, M1F
Remarks: for regulating the flow of steam, cold and hot water in heating systems and boilers
Maximum working pressure 16 bar
Maximum working temperature 300 °C
Regulating characteristic quadratic
Number of seats single
Leakage < 0.05 % Kv
Mounting size 1"
Mounting device flange
Actuator
electric device
thermocouple
pneumatic device
pressure differential sensor



d
d

pressure differential regulators
VB-90, VBA-90, V, AV V2, V4, V8
S16, S25
TD66, TD58
Material specifications
Body cast iron GG25
Components stainless steel

Table 1. Technical specifications





Temperature-pressure curve


Type
Connection Nominal diameter, (mm)
Kvs, (m³/h) Stem stroke, (mm)
Weight, (kg)
15/4 M1F 15 4 0.2 6 3.0
15/6 M1F 15 6 0.45 6 3.0
15/9 M1F 15 9 0.95 6 3.1
15/12 M1F 15 12 1.7 6 3.1
15 M1F 15 15 2.75 6 3.1
20 M1F 20 20 5 6.5 4.2
25 M1F 25 25 7.5 7 5.5
32 M1F 32 32 12.5 8 8.1
40 M1F 40 40 20 9 9.7
50 M1F 50 50 30 10 14.7


Table 2. Parameters


Type Dimensions mm, (mm)
L H1 H2 b D k d х n
15/4 M1F 130 80 60 14 95 65 14 х 4
15/6 M1F 130 80 60 14 95 65 14 х 4
15/9 M1F 130 80 60 14 95 65 14 х 4
15/12 M1F 130 80 60 14 95 65 14 х 4
15 M1F 130 80 60 14 95 65 14 х 4
20 M1F 150 85 65 16 105 75 14 х 4
25 M1F 160 95 70 16 115 85 14 х 4
32 M1F 180 105 75 18 140 100 18 х 4
40 M1F 200 110 85 18 150 110 18 х 4
50 M1F 230 125 95 20 165 125 18 х 4

Remarks. 1. A filter must be installed upstream of the regulating valve.
2. For temperatures around the valve exceeding 150 °C (steam pressure > 4 bar), a cooling element must be installed.
3. The valve must be used together with its actuator. Failure to comply with this point may cause leakage through the stem.
