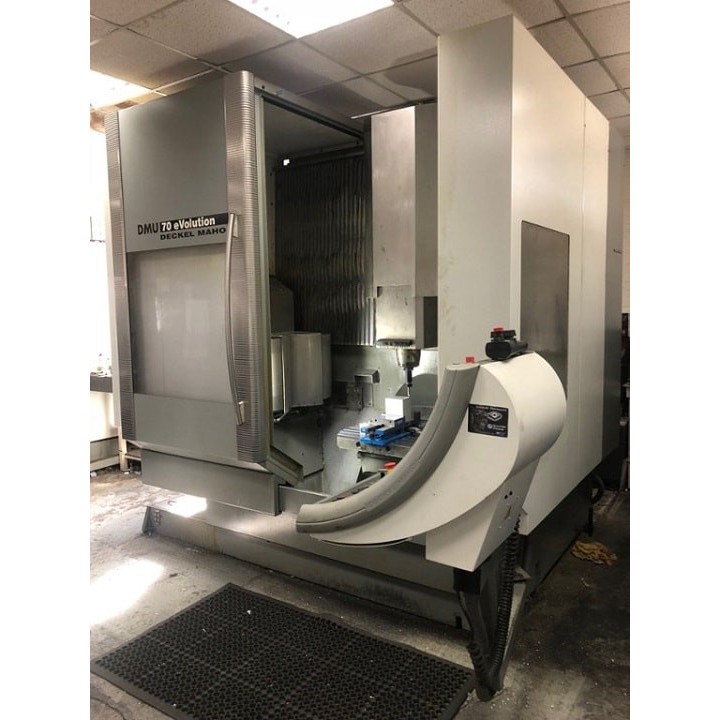

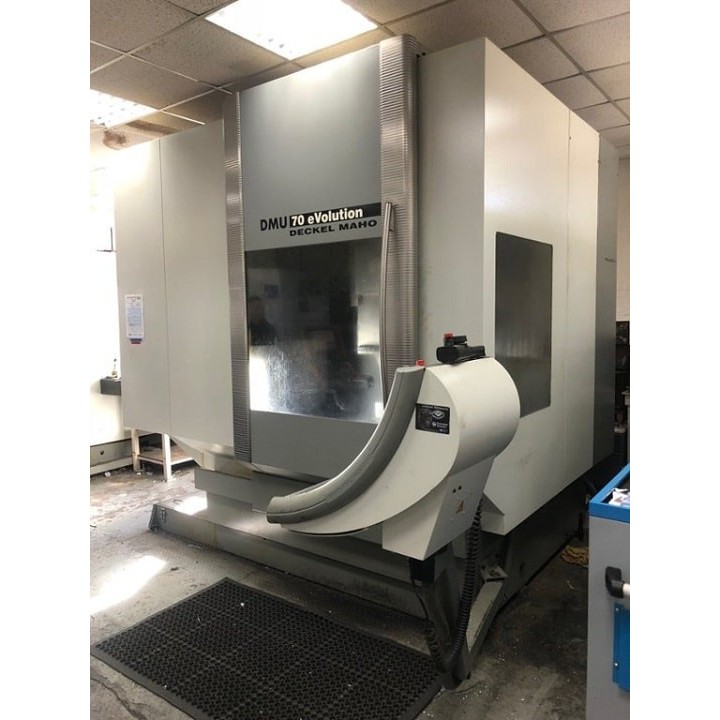

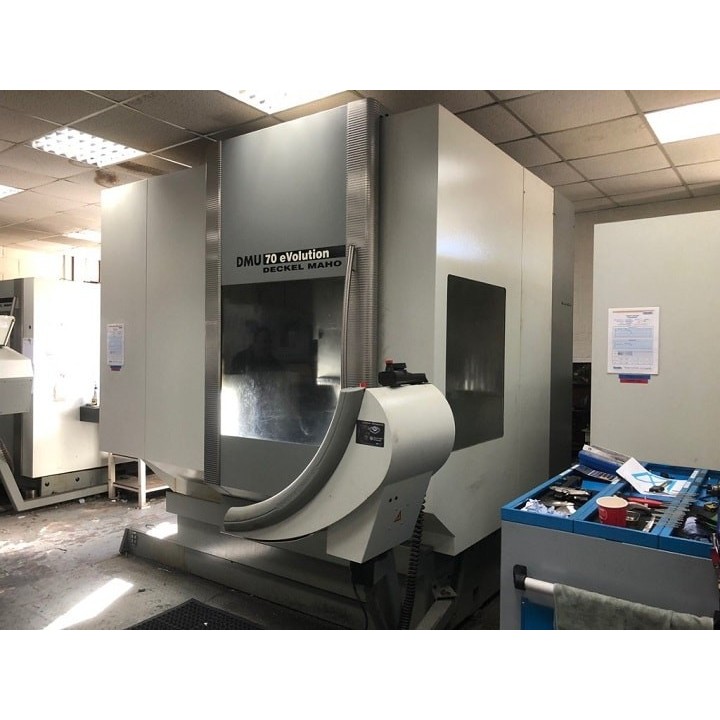

DMU 70 eVolution (15035703884)

Machining Area:
• X axis: 750 mm
• Y axis: 520 mm
• Z axis: 520 mm
Main Drive:
• Speed ​​range: 20 - 18,000 r.p.m.
• Power (40-100% ED): 22.5-15 kW
• Torque (40-100% ED): 130-87 Nm
Advances:
• Work progress (X-Y-Z): 0 - 20,000 mm-min
• Fast march (X-Y-Z): 50 m-min

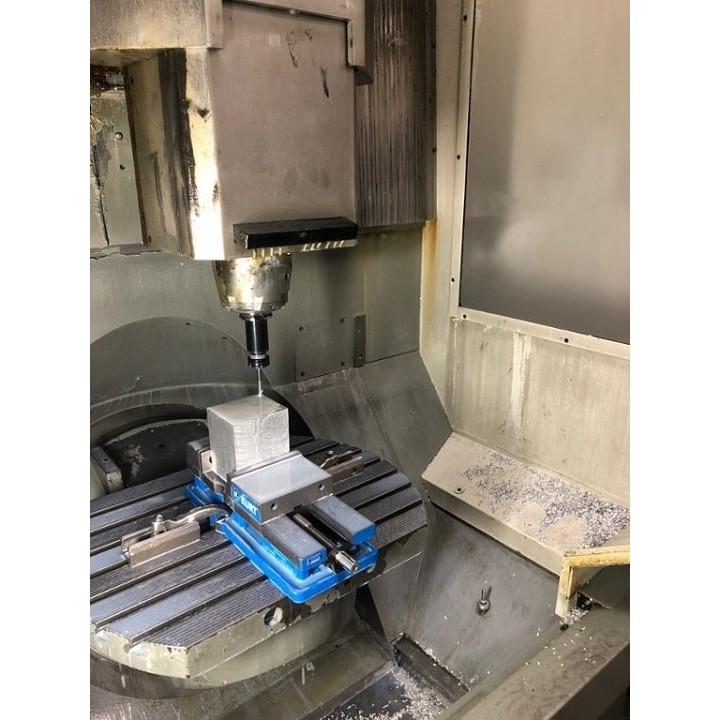

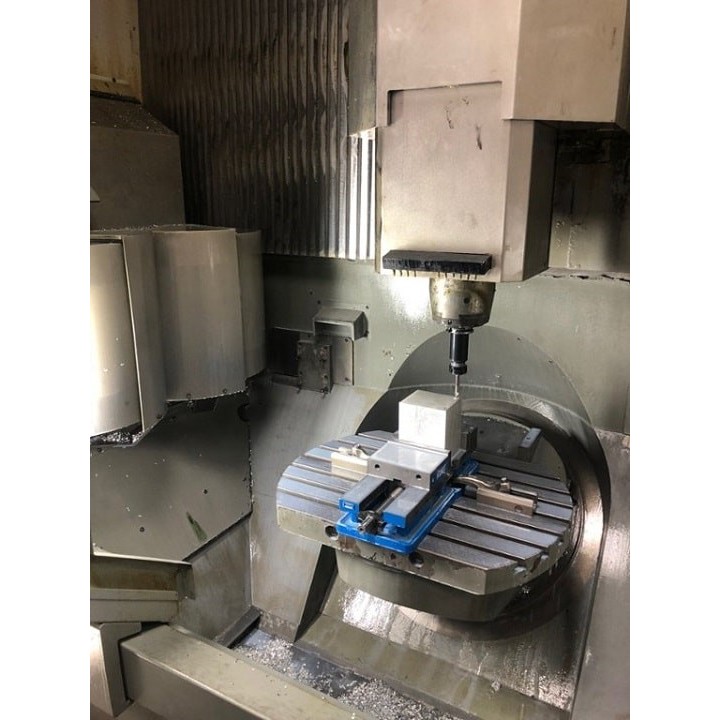

Worktable (Axes B + C):
• Table dimensions: Ø 700 x 500 mm
• Maximum weight on the table: 350Kg
• T-slots (Number - Measurement - Tolerance): 7 - 14 mm - H7
• C axis travel: 360º (resol. 0.001º)
• B axis travel: 180º (resol. 0.001º)
Machine:
• Machine dimensions (LxWxH): 2,604 x 5,644 x 2,829 mm
• Machine weight: 8.320 Kg
Cone:
• Cone type: SK 40 (DIN 69871)
• Cone of the mandrel recess: HSK-AG3 (DIN 69893)

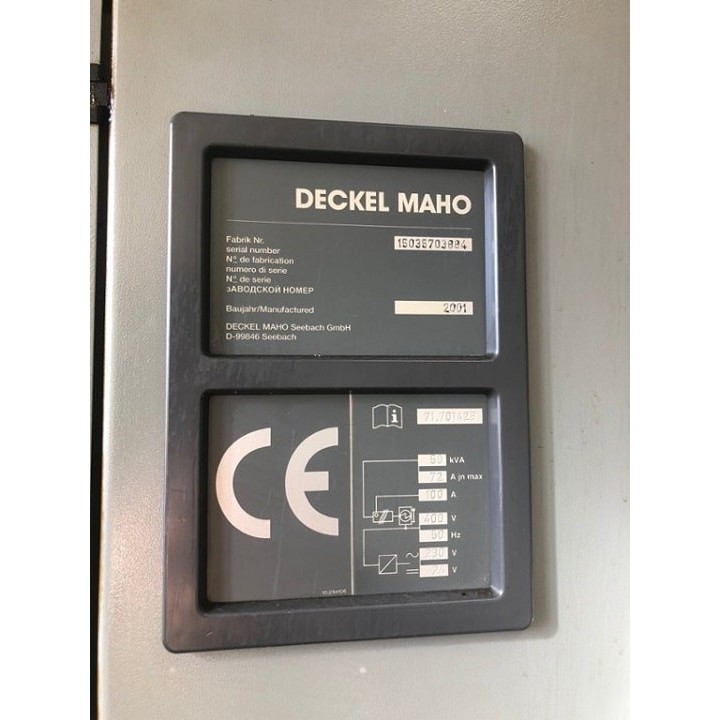

Electric connection:
• Phases | Frequency | Voltage | Power: 3N | PE ~ 50-60Hz | 400-230V | 50 kW
Accessories:
• External taladrina
• Automatic tool changer: ATC-32
- Maximum net weight - Maximum net diameter: 6 Kg - 315 mm
• Electronic steering wheel: HR-410
• Sales price (Ex Work): Consult
