630 ton complete of Feeder Line 800x4 mm

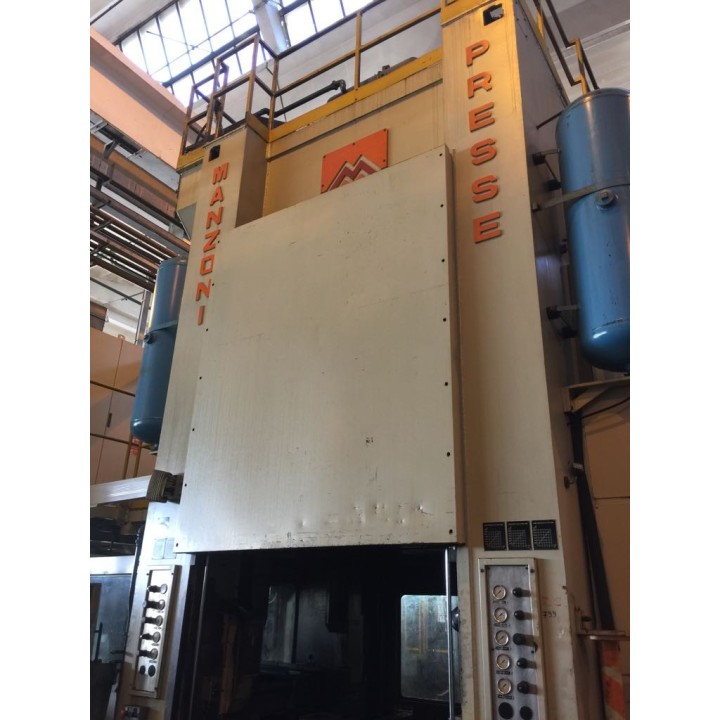

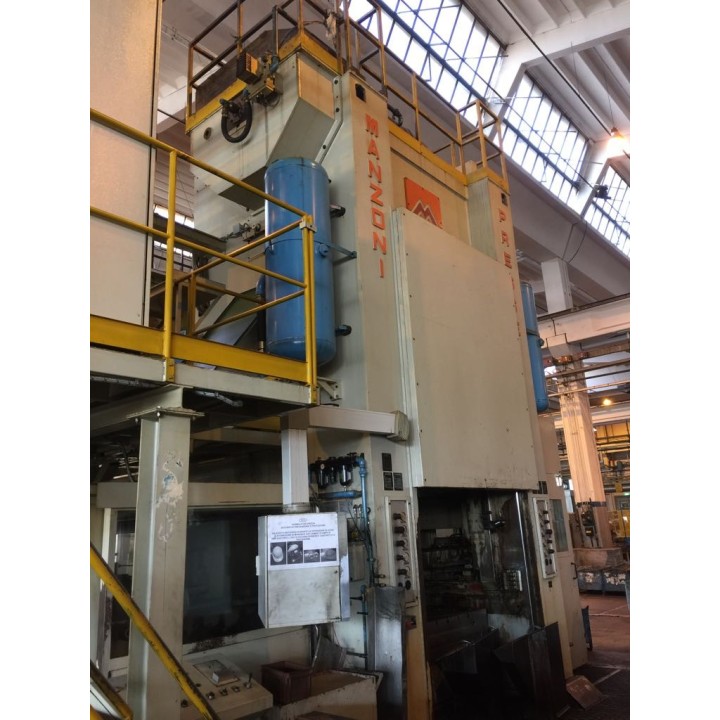

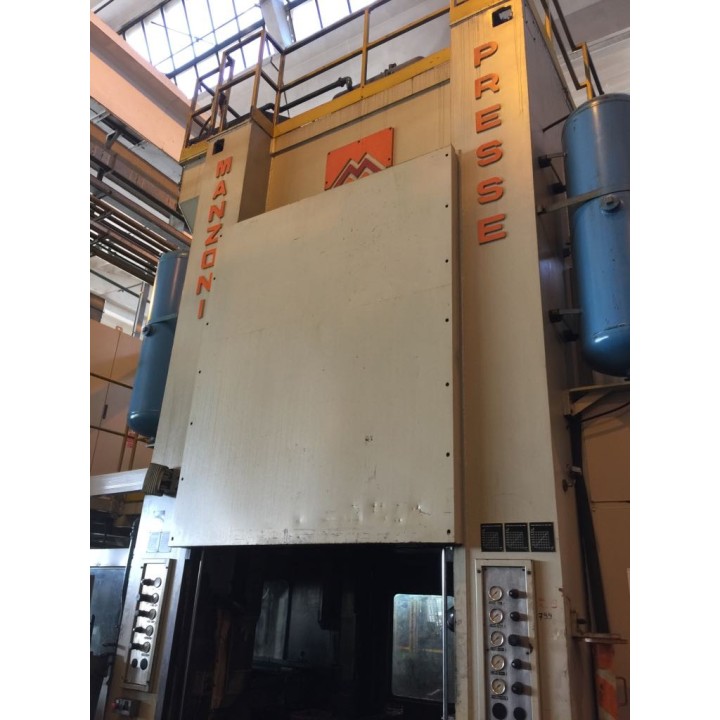

Mechanical Press MANZONI 630 Ton
No. 4 Stations Complete of

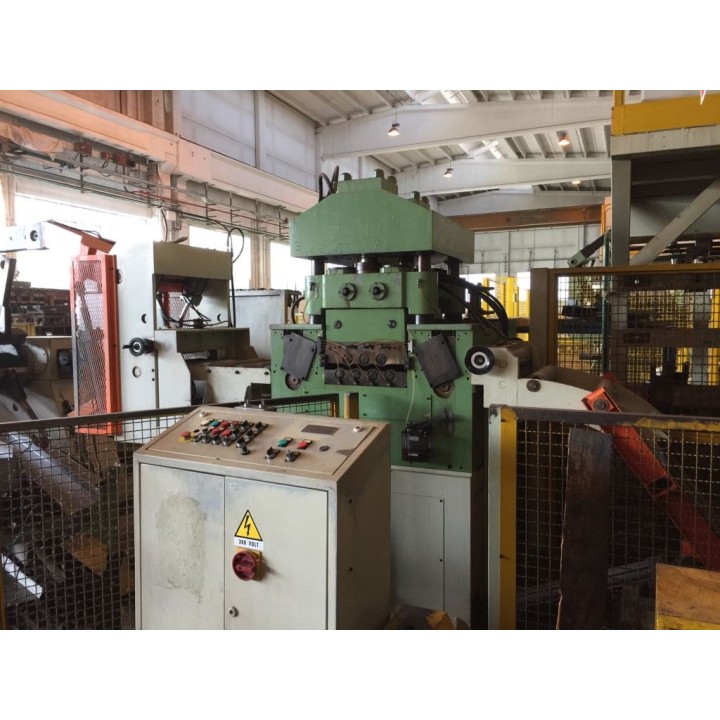

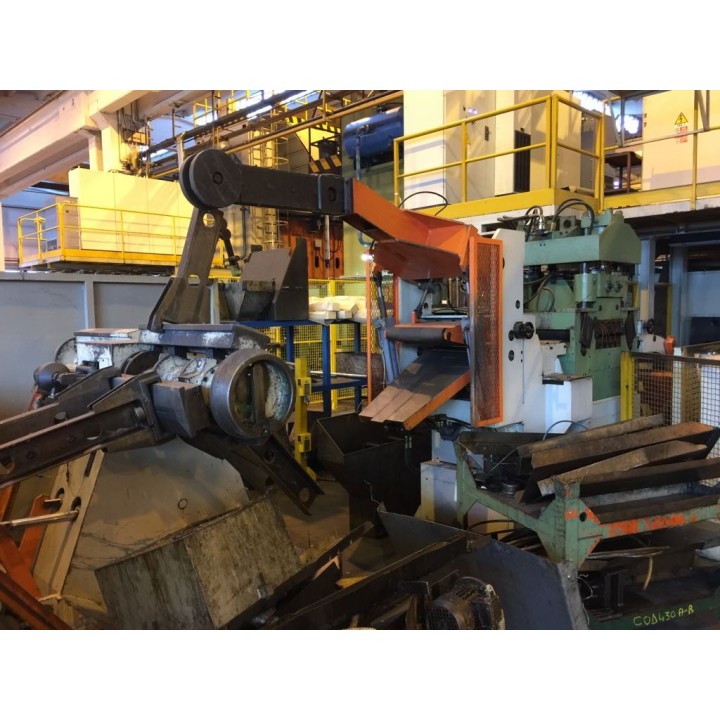

Feeder Line 800x4 mm double decoiler + rectifier + SARONNI brand feeder
Nominal Power ................................................... 630 tons
Stroke par minute ............................................. 15-35
Number of Station .......................................... .. 4
Passage between stations ............................... 380 mm.
Height closed die ....... .................................... ... 850 mm.
Height table feeder ........................................... 401 mm.
Ram stroke - fixed ............................................. 350 mm.
Dimension table ................................................. 1850 x 1250 mm.
Dimension ram ................................................ 1850 x 1250 mm.
Front light columns ....................................... .... 1850 mm.
Lateral light colums .......................................... 1200 mm.
Distance max table-ram .................................. 1200 mm.
Bars Opening Stroke ......................................... 105 mm.
Internal Light closed bars .............................. .. 300--600 mm.
Internal Light open bars ................................. 820 mm.
Max width coil ......... .. .................................... .. 500 mm.
No. Lower cuschion ....................................... .. 4
Max cams extraction sup. ........................ .. 210 mm.

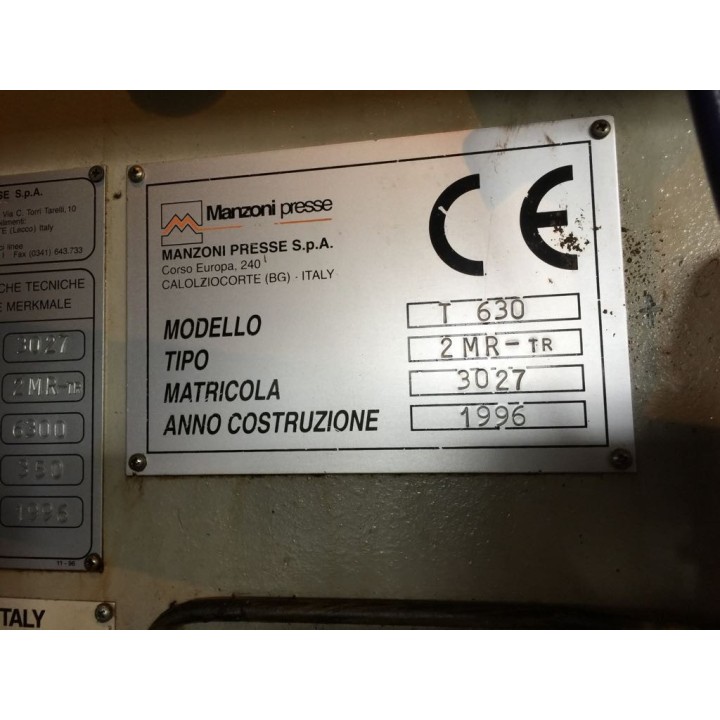

Year of construction ....................................... .. 1996
With CE RULES
