KM-11000 (61023)

Name: KM-11000 (61023)
Brand: zayer
SKU: 8119

zayer

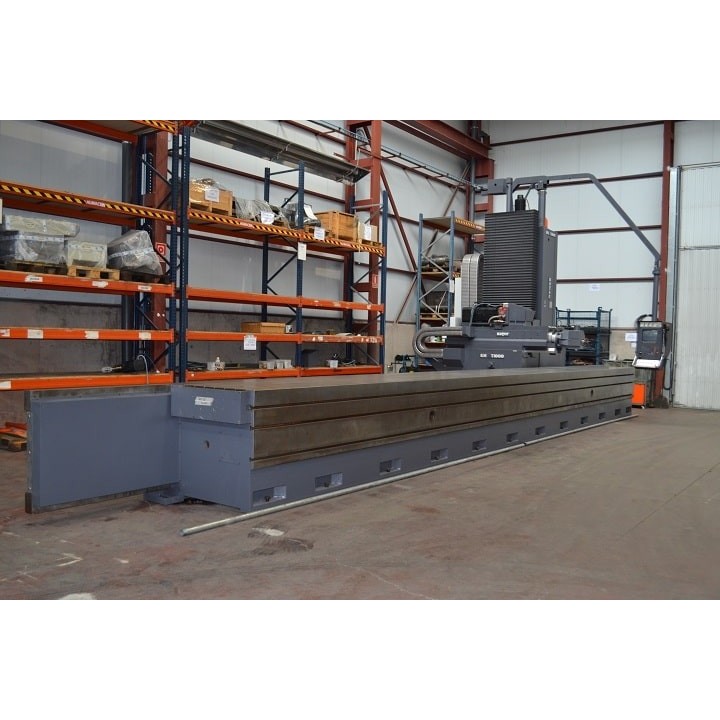

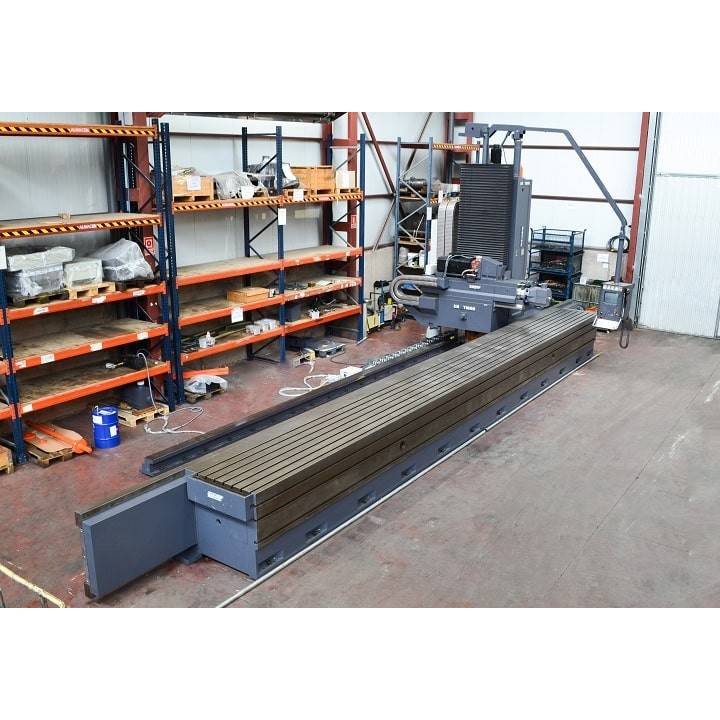

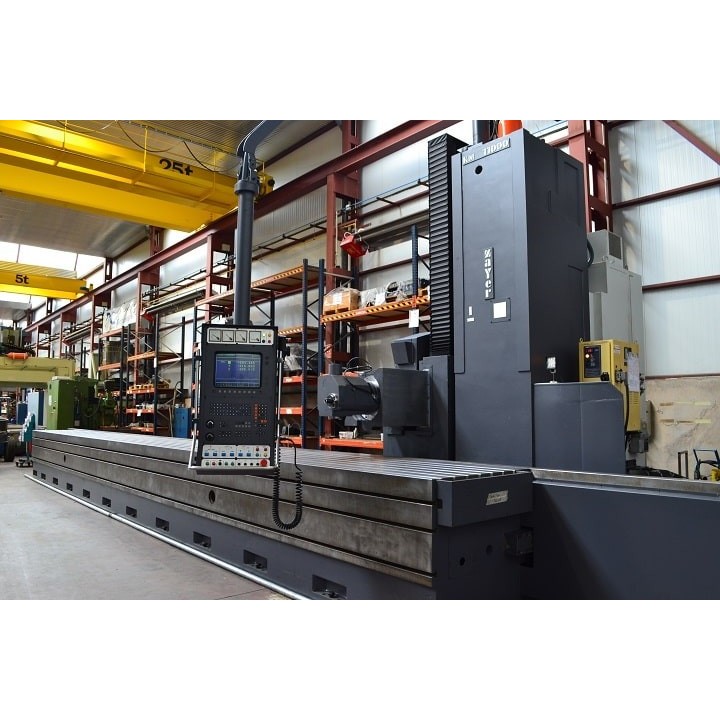

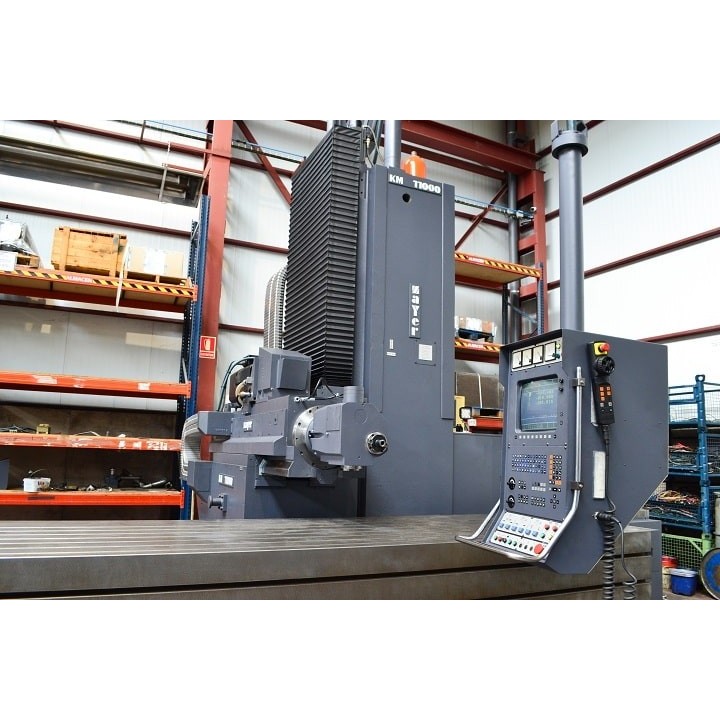

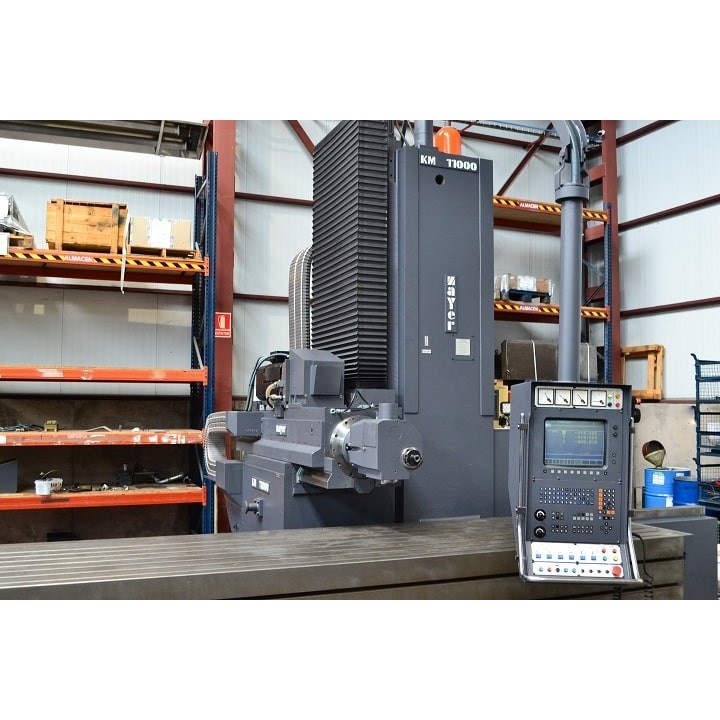

The dimensions of this ZAYER KM-11000 mobile column milling machine, together with its power, allow the machining of large parts. Ideal milling machine for large parts slabs, typical of sectors such as the railway. Designed to ensure maximum reliability and performance.
Second-hand milling machine for sale, rebuilt and with guarantees.
With immediate delivery.

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

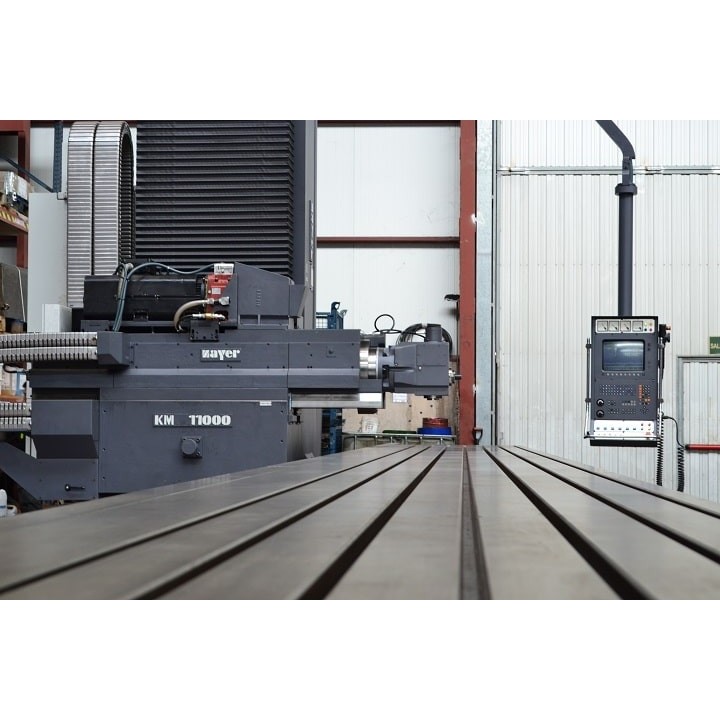

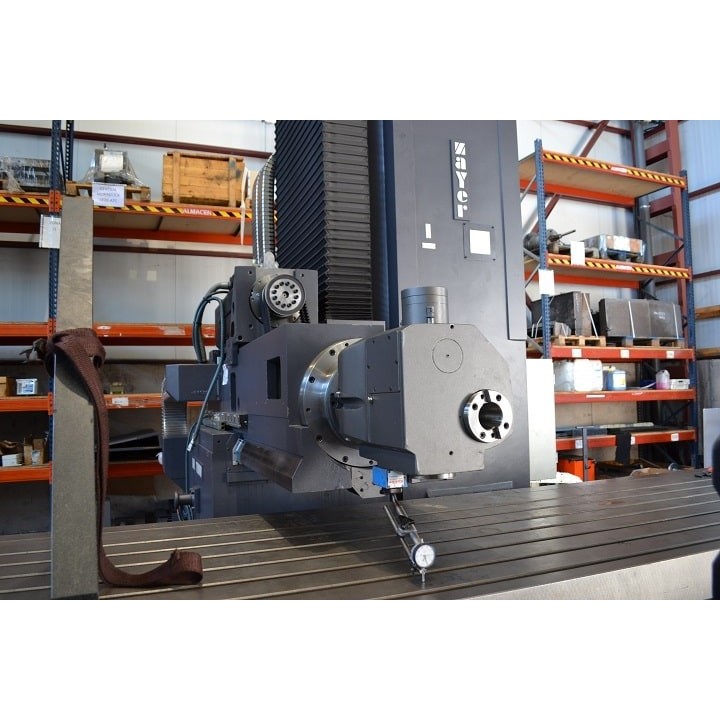

Zayer KM 11000 mobile column milling machine (61023)
Manufacturing Year: 1992
Status: rebuilt

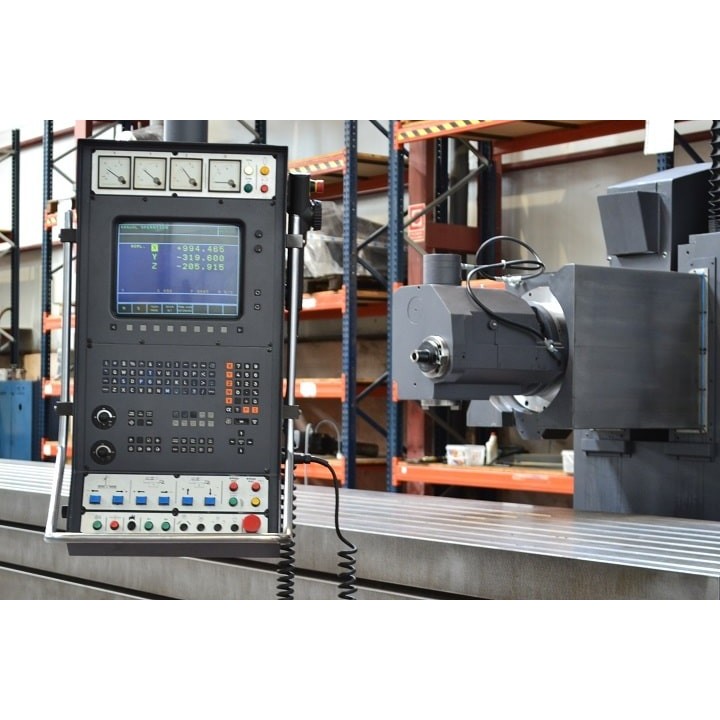

HEIDENHAIN TNC-415 numerical control
Table dimensions: 11,000 x 1,000 mm
Number of slots in T: 7
T-slot dimensions: 22 mm
Longitudinal travel X: 9,300 mm
Transversal travel Y: 1,010 mm
Vertical travel Z: 2,000 mm

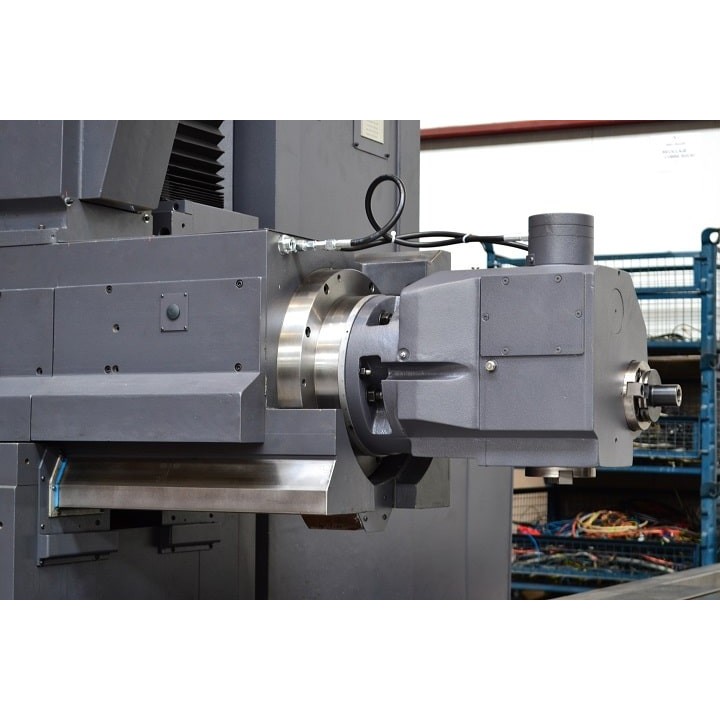

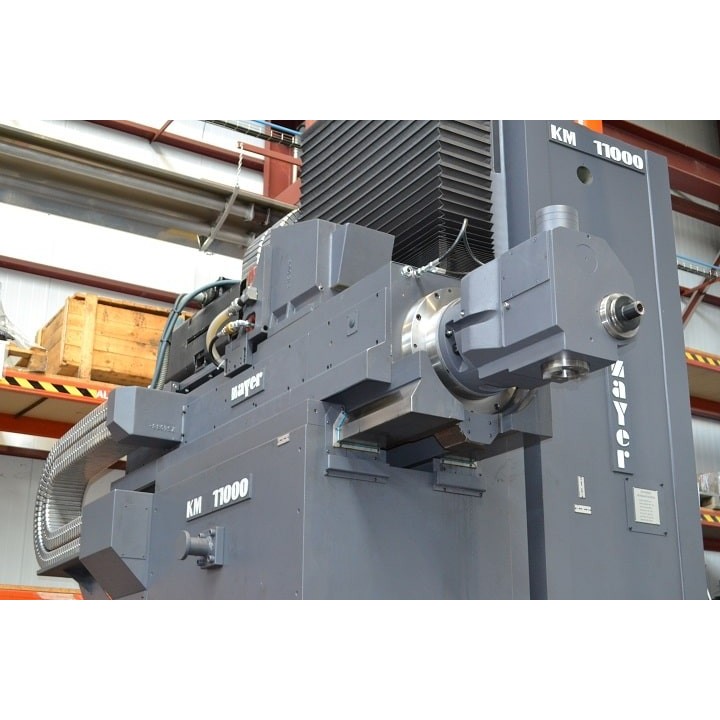

Head model: DM25
Mooring tool: Hydraulic
Cone: ISO 50 (DIN2080)
Speed range: 1,800 rpm
Mandrel Power: 34 kW
Work advances: 6 - 5,000 mm-min
Fast forward (X-Y, Z): 10,000 - 15,000 mm-min
Maximum weight on table: 20,000 kg
Approximate machine weight: 48,000 kg
Machine dimensions: 11,000 x 4,450 x 5,480 mm
Taladrina: External
Heidenhain electronic steering wheel
Option. New fairing
Warranty: Mechanical part 6 months
Sale price (Ex Work): Consult
