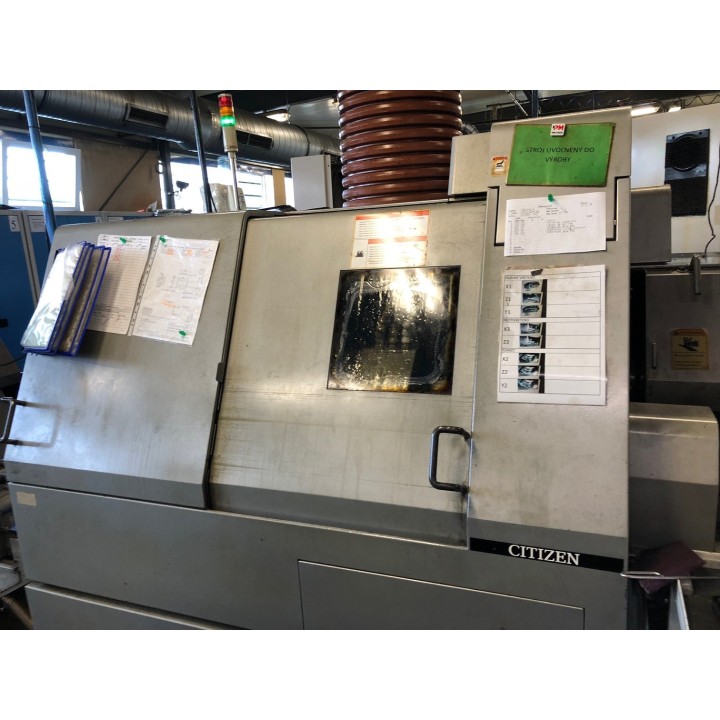

M 32V

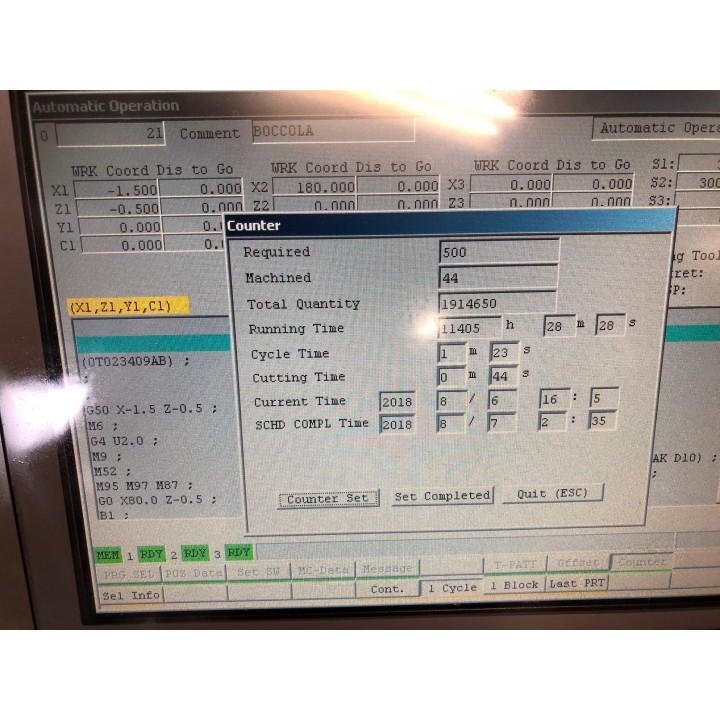

Working hours: 11405 h
Maximum machining diameter: ø32 mm
Maximum machining lenght: 320 mm
Maximum drilling diameter for main spindle: ø12 mm
Maximum front tapping diameter(tap
die): M10
Spindle through-hole diameter: ø36 mm
Spindle speed Max: 8000 rpm
Maximum drilling diameter in back machining process: ø10 mm
Maximum tapping diameter in back machining process: M10
Back spindle speed Max: 8000 rpm
Number of tools to be mounted: 31
Tool size Turning tool: □16 mm
Rapid feed rate:
X1 axis: 32m/min / X2 axis 18m/min / X3 axis 32m/min / Y1 axis 32m/min / Y2 axis 8m/min / Y3 axis32m/min / Z1 axis 32m/min / Z2 axis 32m/min / Z3 axis 32m/min
Motors For spindle drive: 3.7/7.5kW
Input power capacity: 20 kVA
Center height: 1.150 mm
Weight: 3400 kg
Accessories:

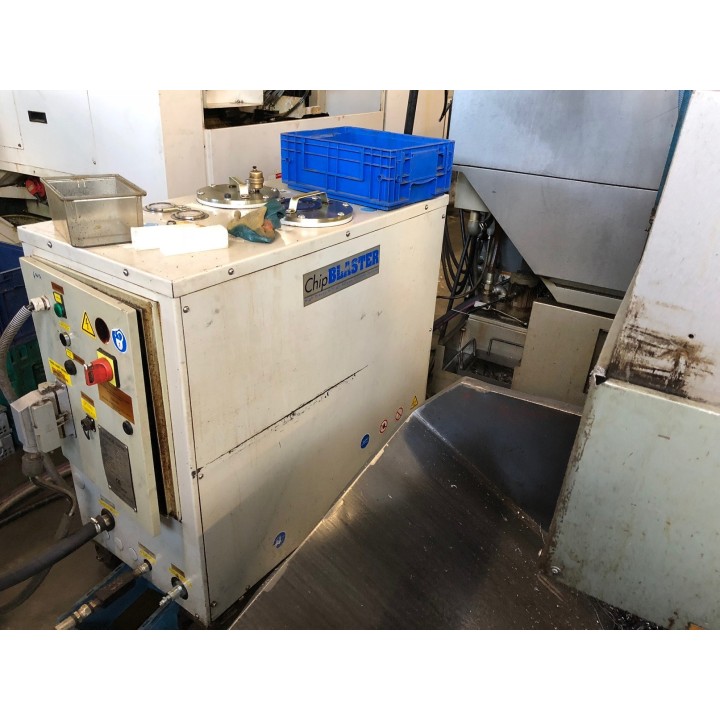

High pressure coolant

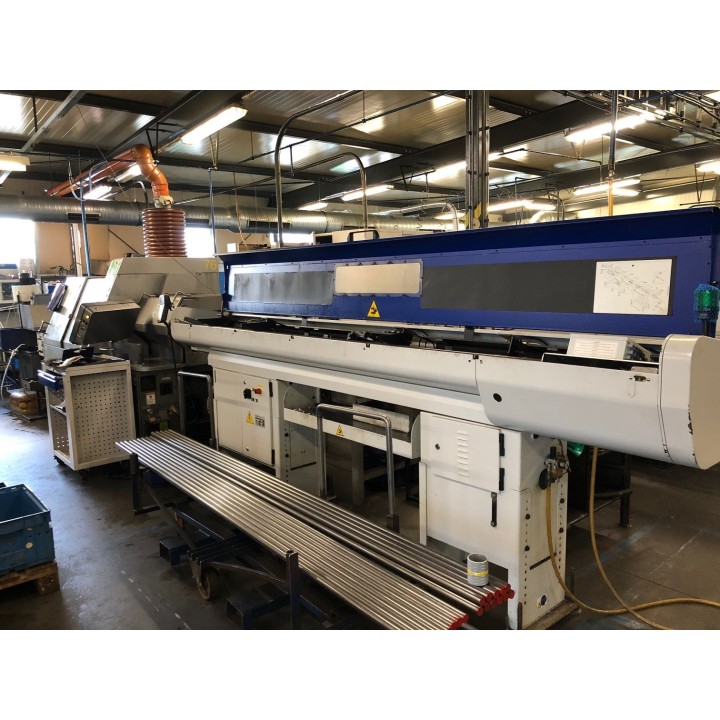

Bar feeder
Chip conveyor
Tool holder + power tools
