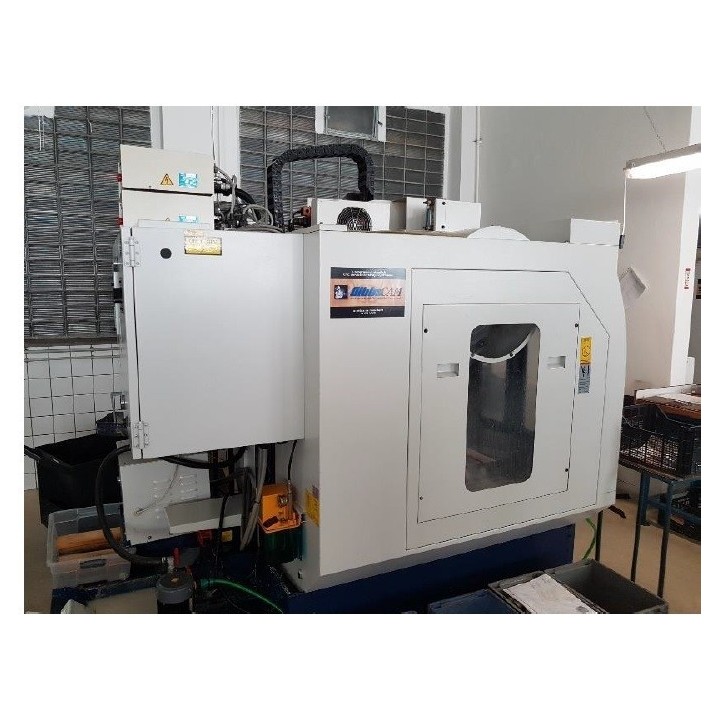

510 T

Control system: FANUC 0i-MC
Table dimensions: 600 × 300 mm
Maximum load: 200 kg
Spindle speed: 12000 rpm
Spindle power: 5.5 kW
Tool tension: BT30
Storage capacity: 20 + 1
Rapid traverse: 48 m / min
Machine dimensions: 3000 x 2400 x 2600 mm
Machine weight: 4500 kg
Accessories:
Serial port + PCMCIA card
Light signaling
Chip conveyor
Manual
Tool probe Renishaw TS27R
BT30 terminals (various types)
4-axis (controlled by M-Codes- 0.001 ° indexing + separate control unit - allows any other CNC machine or conventional machine)

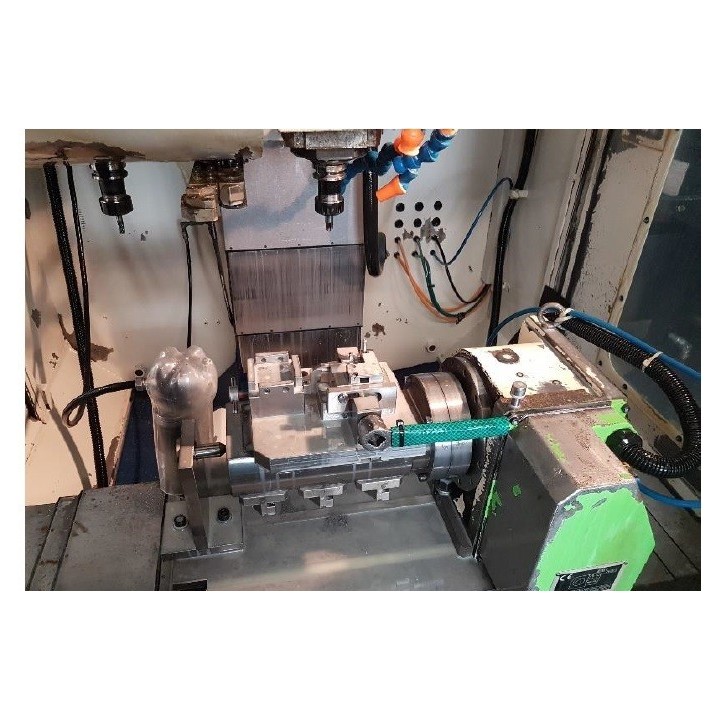

Clamping slide for multi-axis 4-axis machining including clamping flange and tailstock
Connections for DNC network (MOXA)
