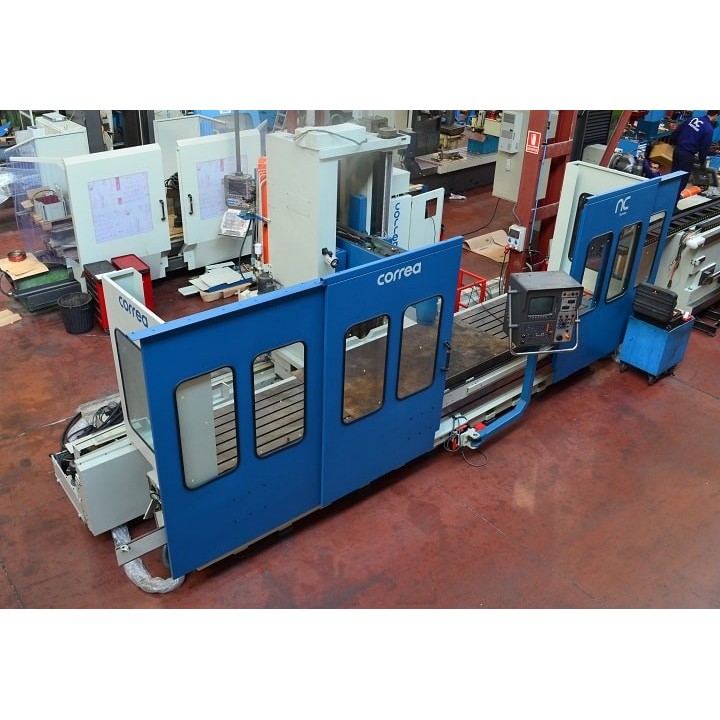

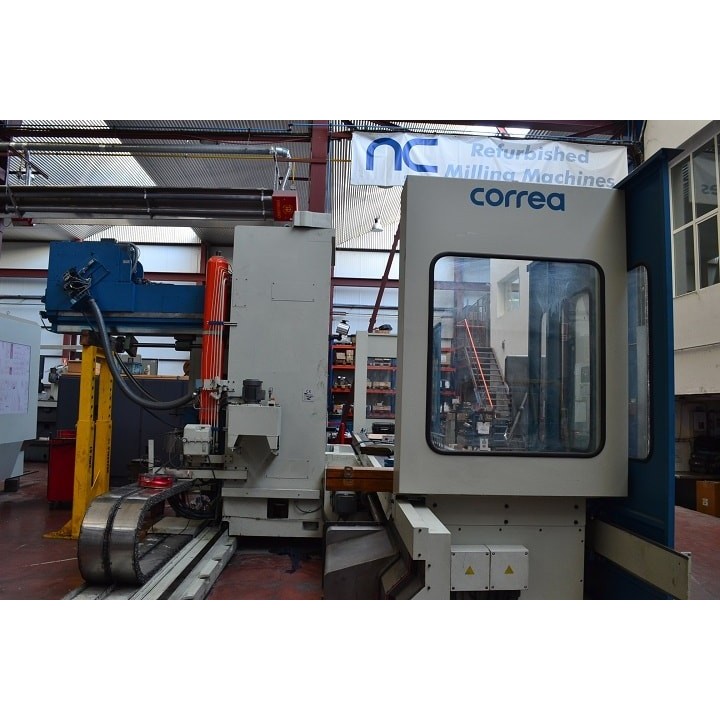

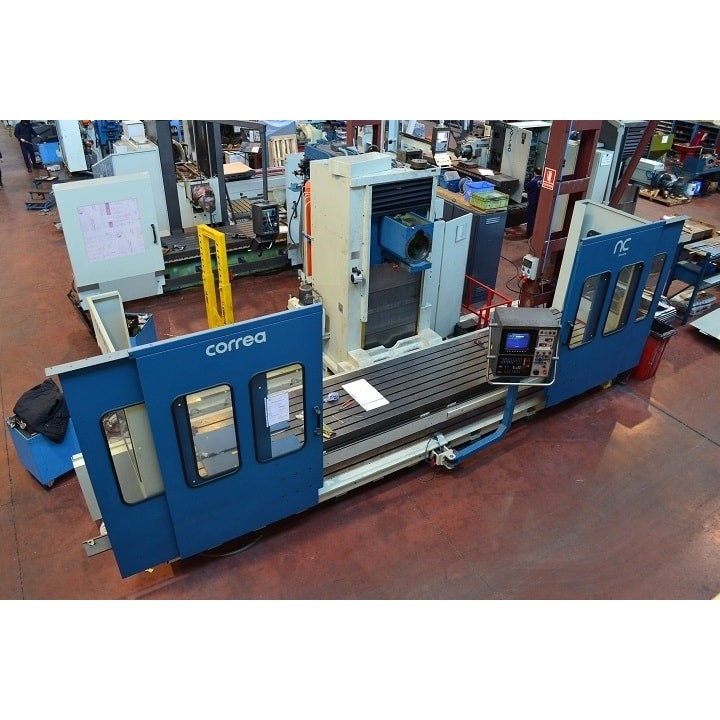

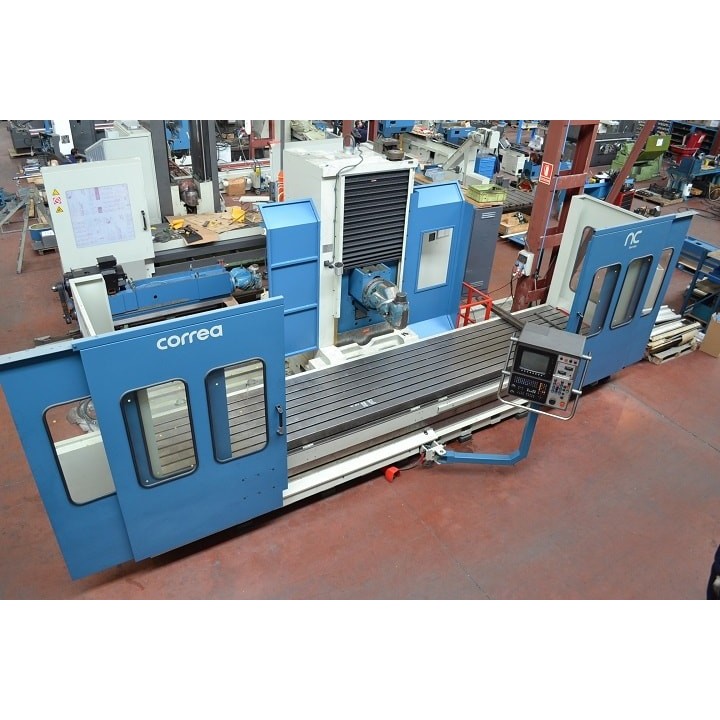

L30/43 87900406)

Table dimensions: 6,120 x 1,000 mm
Number of slots in T: 7
T-slot dimensions: 22 mm
Longitudinal travel X: 4,300 mm
Transversal travel Y: 1,200 mm
Vertical travel Z: 1,500 mm

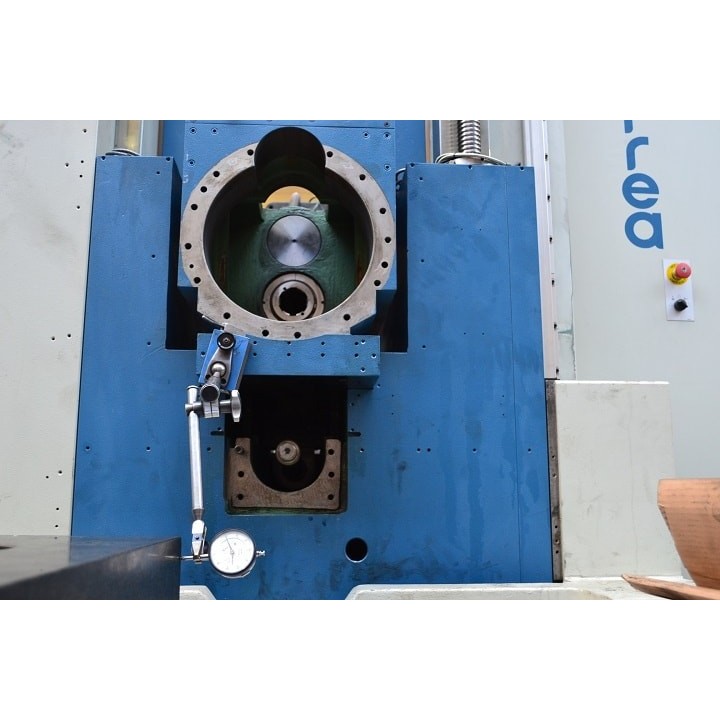

Head model: Universal Automatic UDG40
- Body 1: 0 -180º
- Body 2: -180º - 0º - + 180º (every 3rd)
Mooring tool: Hydraulic
Cone: ISO 50
Speed ​​range: 20 - 2,000 rpm
Mandrel power: 22 kW
Advances of work: 5,000 mm-min
Fast Advances (X-Y, Z): 10,000 mm-min
Maximum weight on table: 20,000 kg
Approximate weight of the machine: 28,000 kg
Machine dimensions: 9.500 x 5.600 x 3.505 mm
Fairing
Automatic tool changer: ATC-30
Taladrina: Internal and external
Chip evacuator
Warranty: Mechanical part 6 months
Sale price (Ex Work): Consult
