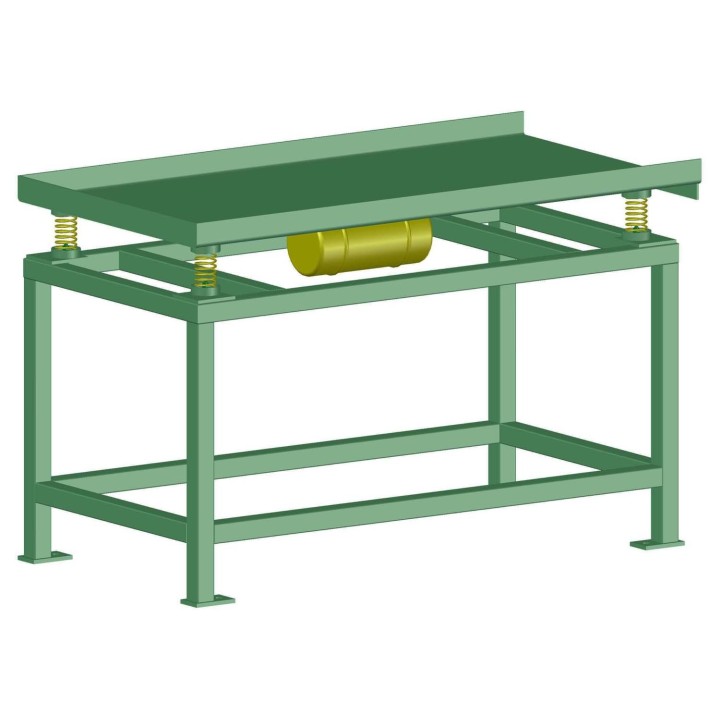

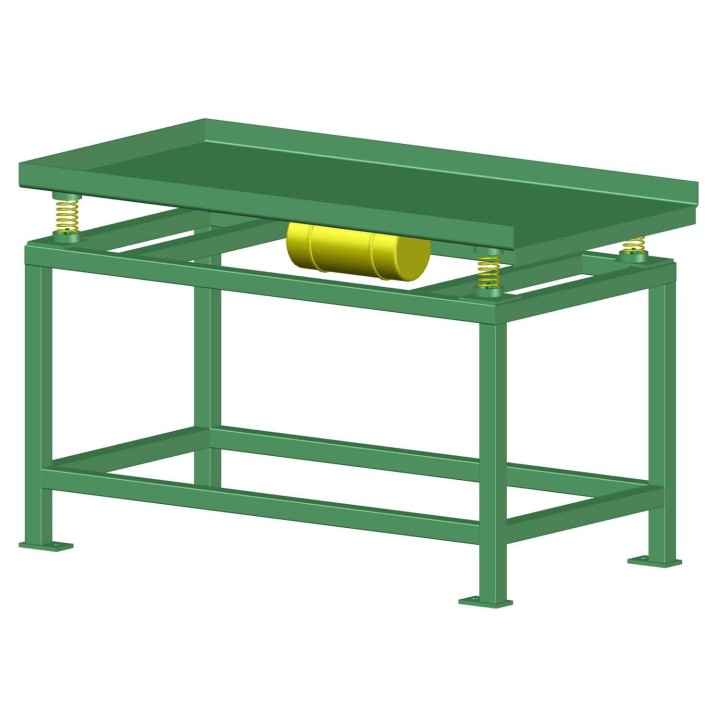

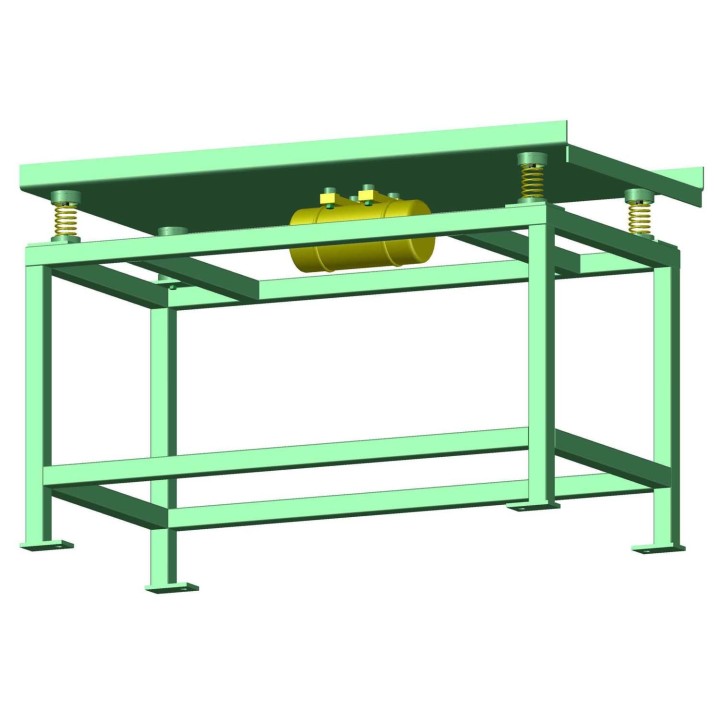

Complete drawings of a vibrating table are sold that you can adapt to the production you want only by increasing or decreasing the geometry of the equipment, since calculation of the critical parts and practical comments are given, or use the design as it is presented.

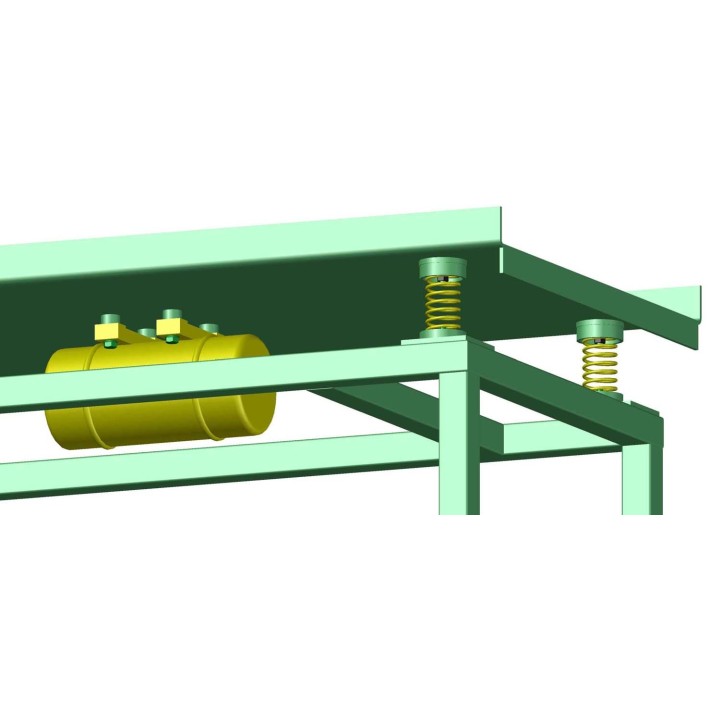

Dimensions - Length 1500 mm - Width 770 mm - Height 950 mm - Vibrator Motor (direct coupling): 0.75 HP (0.55 Kw) - 3000 RPM - Useful load of material to be processed (work load): 90 Kg
The author of the design is the well-known Ing Teodoro Kresisch, and you can buy the complete plans in ebook (pdf) format, in A4 size, ready to print, as well as see details of the equipment by visiting the page http: - www.libroptica.com -Vibrating Table.html
