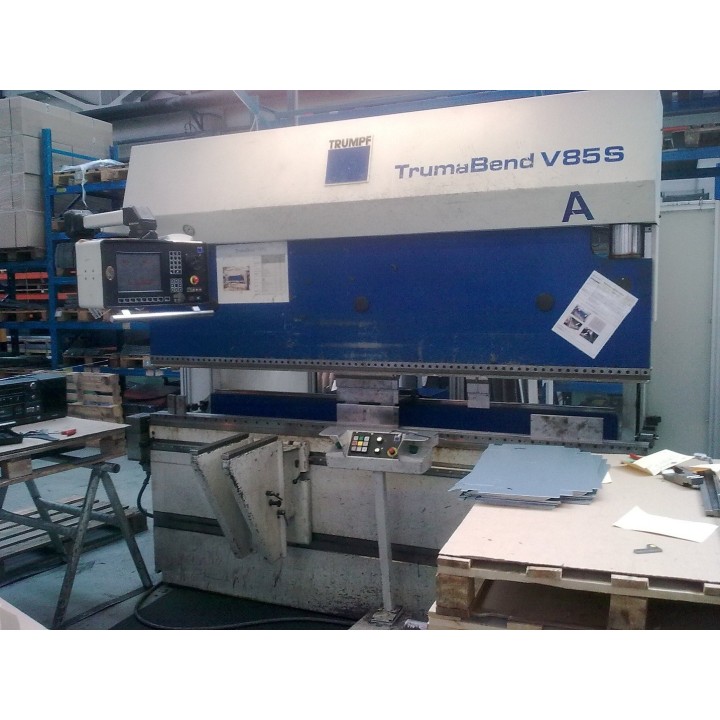

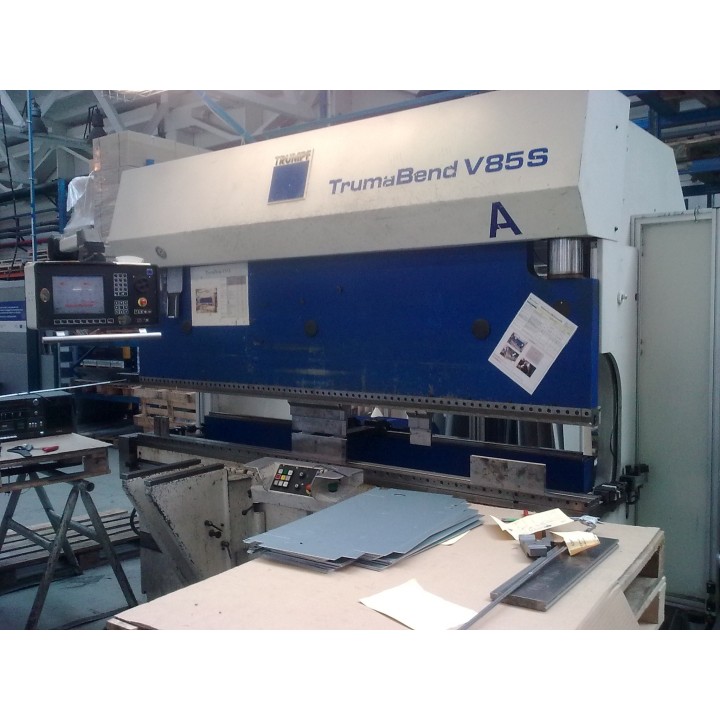

CNC Pressbrakes

Type: TrumaBend V85S
Producer: TRUMPF
Made in: 2005
Characteristic:
Control system: Delem DA 69
Operating hours: 55255
6 axes (I /R/V/X/Y/ Z)
Travel distances :
X: 600 mm
R: 250 mm
Z: 1810 mm
Max:pressure area-X-axis:860 mm
Max.Pressing force: 85 ton
Folding length: 2500 mm
Stroke:215 mm
Throat:410 mm
Bed width: 120 mm
Engine power:13 kW
Machine dimensions:(LxBxHx)3190x2100x2375 mm
Machine weight:8750 kg
CNC (axis V)
Preparation for ACB system
Preparation for Bend Master
Tool holders (hydraulic)
Availability: end of 2017
