MARCA: XINSU -Modelo:2006

LINE OF MEXCLADO-EXTRUSION-PELETIZADO (150 Kg-hour) BRAND. XINSU.

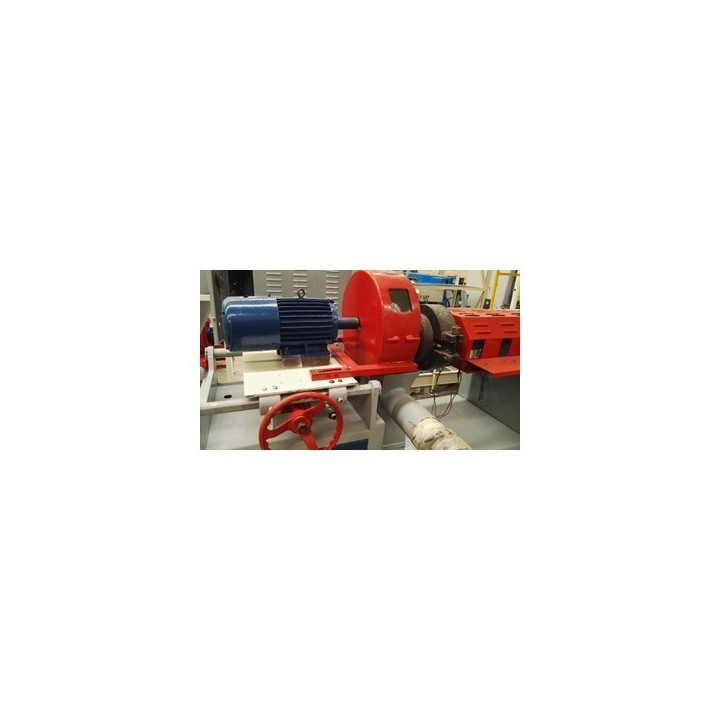

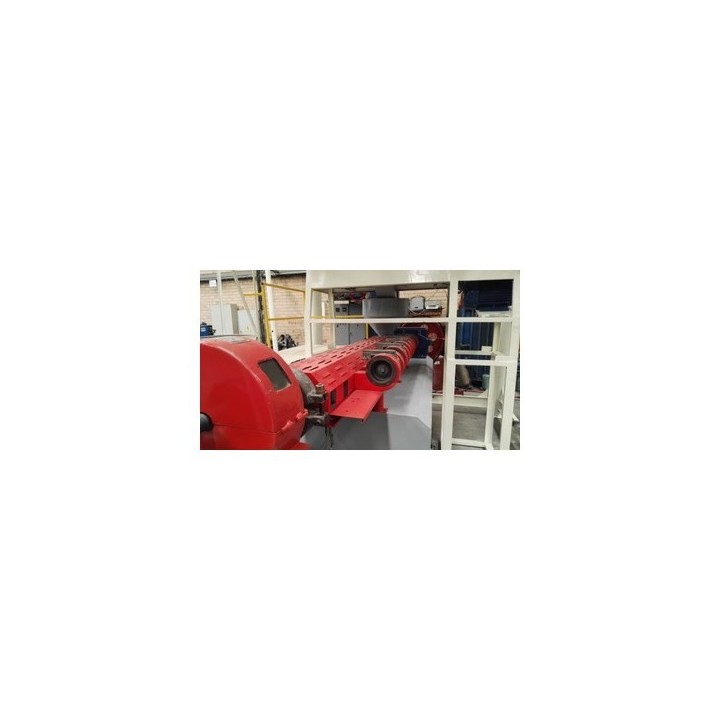

A. 100 mm extruder. L.D 20, 22 KW motor. 220V-73 amp. 1760 RPM
6 zones of control of temperature with turboventiladores by zone.
B, Grain Cutter (pelletizer) motor 2.2 KW-220V-9.3 Amp. With electronic variator
Of speed.

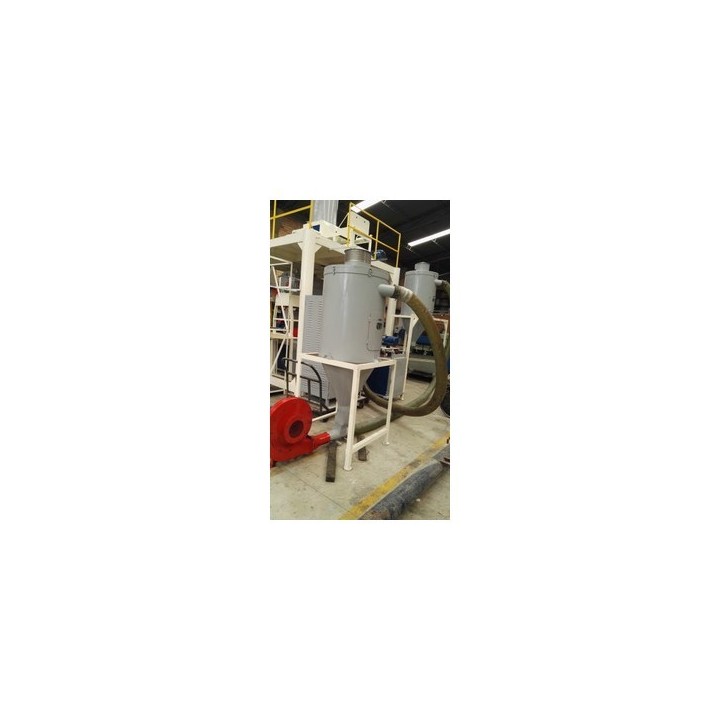

C, Two pellet transport turbofans to the cooling system of
The pellets. Engines of 4 KW. 220V-3600 RPM. With two cooling and packing hoppers.
D. Mixing Cooler. Capacity approx. 100 Kg. Engine 10 HP-220V, Cooling System
By recirculated water.

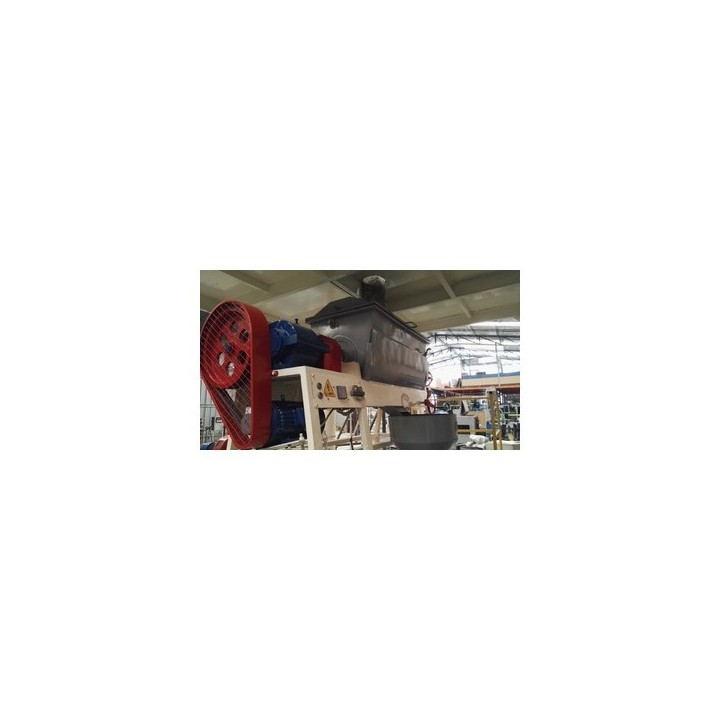

E. Mixer with capacity of 80 Kg. Engine of 30 HP-220V,
