Fuera de stock

DMG MORI NMV 1500 DCG

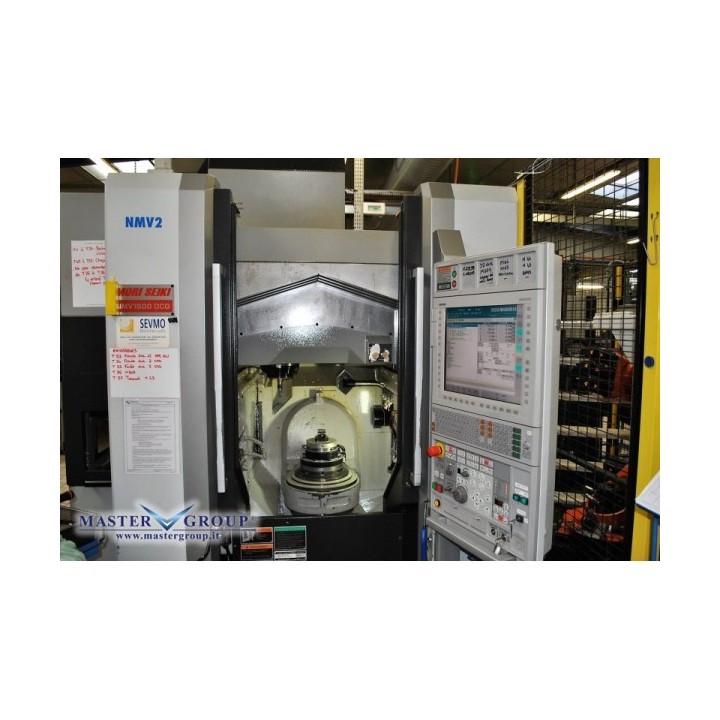

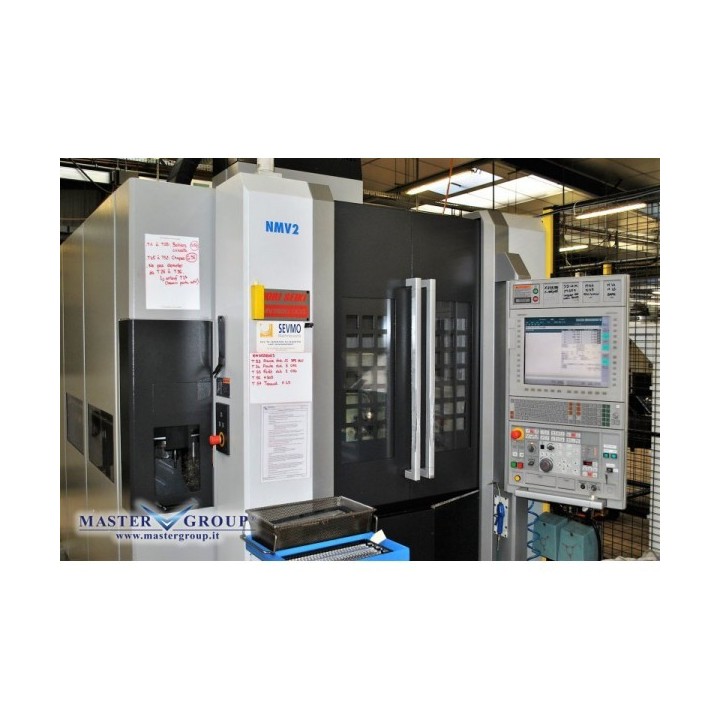

DMG MORI NMV 1500 DCG-USED- 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTER

Country

Italy

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

YEAR: 2010
X-AXIS TRAVEL: 420 mm
Y-AXIS TRAVEL: 210 mm
Z-AXIS TRAVEL: 400 mm
RAPID FEEDS X-Y-Z: 50-45-40 m-min

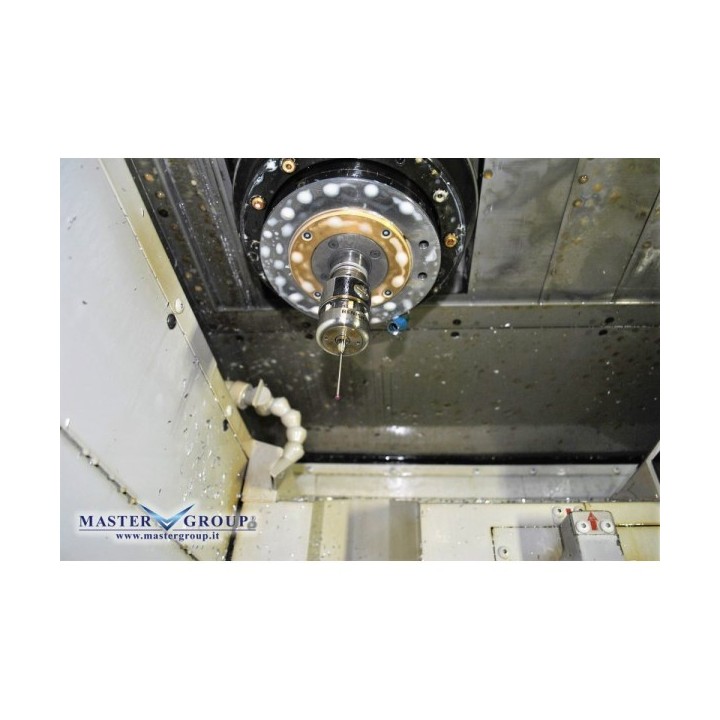

SPINDLE: 40000 rpm; 5.5-7.5 Kw; HSK E32
4-5th -AXIS TRAVEL: + 160 ° -180 ° -360 °
TABLE SIZE: 250 - mm
MAX ADMITTED LOAD: 50 Kg
TOOL MAGAZINE: CHAIN-TYPE-61 POS
WORKING HOURS: 5300
WEIGHT: 7500 Kg
OVERALL DIMENSIONS: 2000x3190x2820 mm
ACCESSORIES: TOOL PRESETTER; SWARF CONVEYOR; SPRAY GUN; OPTICAL LINES; TOUCH PROBE
NOTE: MAX PIECE DIMENSIONS - DIAMETER: 250 mm HEIGHT: 250 mm; WITH NO 60 TOOL HOLDERS HSK-E32; THROUGH-TOOL AIR BLAST; C-AXIS: 67 rpm
