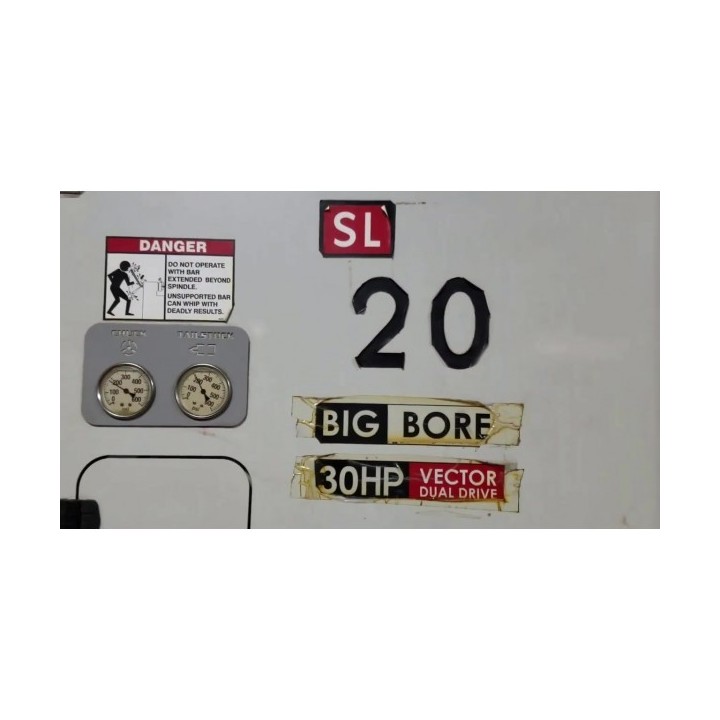

2006 HAAS SL-20TB BIG BORE

CHUCK SIZE.............................. 10"
MAXIMUM BAR CAPACITY.................... 2.56"
SPINDLE BORE............................ 3"
MAXIMUM CUTTING LENGTH.................. 20"
MAXIMUM CUTTING DIAMETER................ 10"
MAXIMUM SPINDLE SPEED................... 3,400 RPM
SPINDLE MOTOR........................... 30 HP
X-AXIS.................................. 8.45"
Z-AXIS.................................. 20"
TURRET.................................. 10 POSITIONS
SPINDLE NOSE............................ A2-6
TAILSTOCK TRAVEL........................ 20"
APPROXIMATE MACHINE SIZE: 126.6" L, 74" W, 72" TALL
APPROXIMATE MACHINE WEIGHT: 9,000 LBS
EQUIPPED WITH:
* HAAS CNC CONTROL

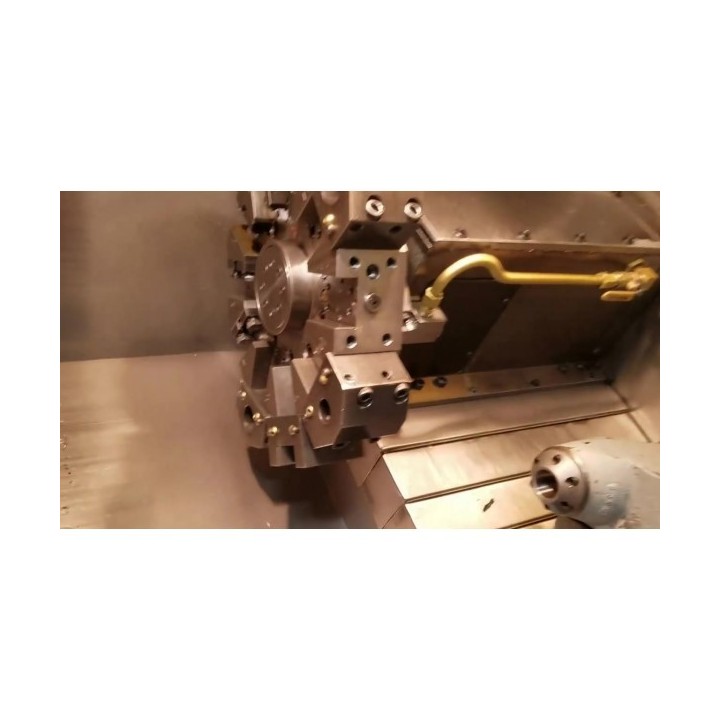

* 10 STATION TURRET WITH MISC. TOOLING
* PARTS CATCHER
* PROGRAMMABLE HYDRAULIC TAILSTOCK
* RIGID TAPPING, M19 SPINDLE ORIENTATION
* 10" 3-JAW HYDRAULIC CHUCK
* CHIP AUGER
* TOOL PRESETTER
* HIGH INTENSITY LIGHTING
* HAAS BIG BORE OPTION
* HAAS SERVO BAR 300 BAR FEEDER
DESCRIPTION:
HAAS SL-20TB, 10"Chk,BIG BORE 3", TAILSTOCK, PARTS CATCHER, BAR FEEDER
