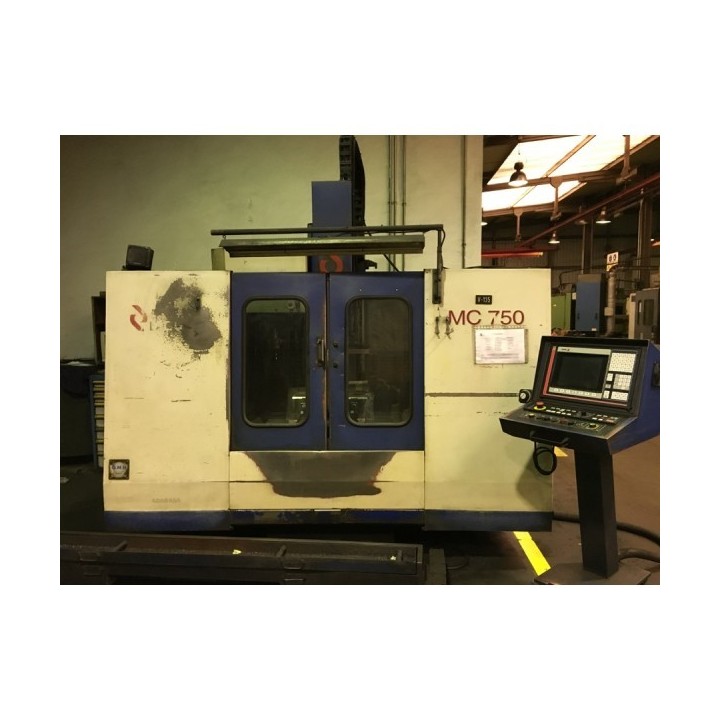

CNC Vertical Machining Center LAGUN mod. MC-750

Manufacturer: Lagun
Model: MC-750
YOM: 1997

Country

Poland

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

Axes (X-Y-Z): 750x410x510 mm
Table height from the floor: 750 mm
Table dimensions: 900x400 mm
Min/max distance from spindle to table: 150-600 mm
Distance between table centre and column: 195-605 mm
Distance from centre axis to the column: 400 mm
Max table weight: 450 kg
Spindle cone: MAS-403-BT 40
Spindle speed: 60 – 6000 rpm
Precision positioning: +/- 0.005 mm
Repeatability: +/- 0.005 mm
