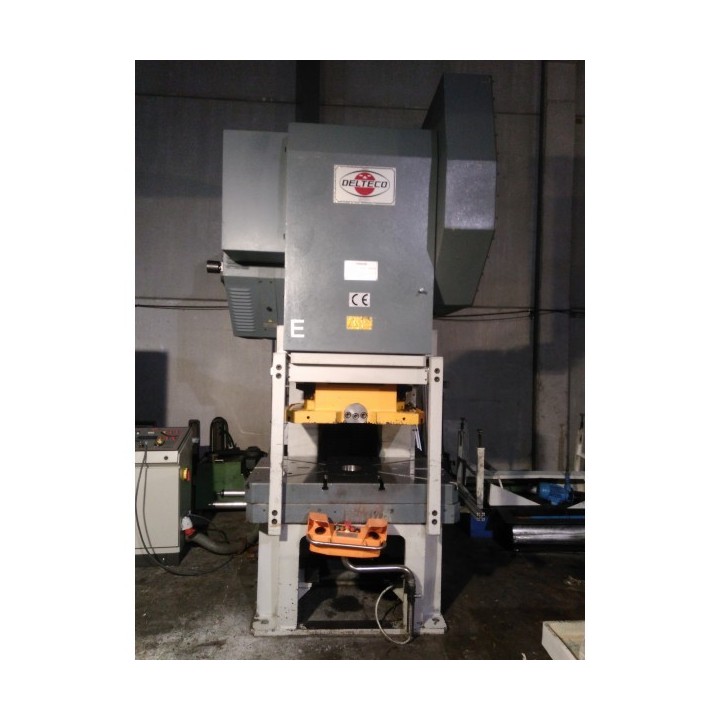

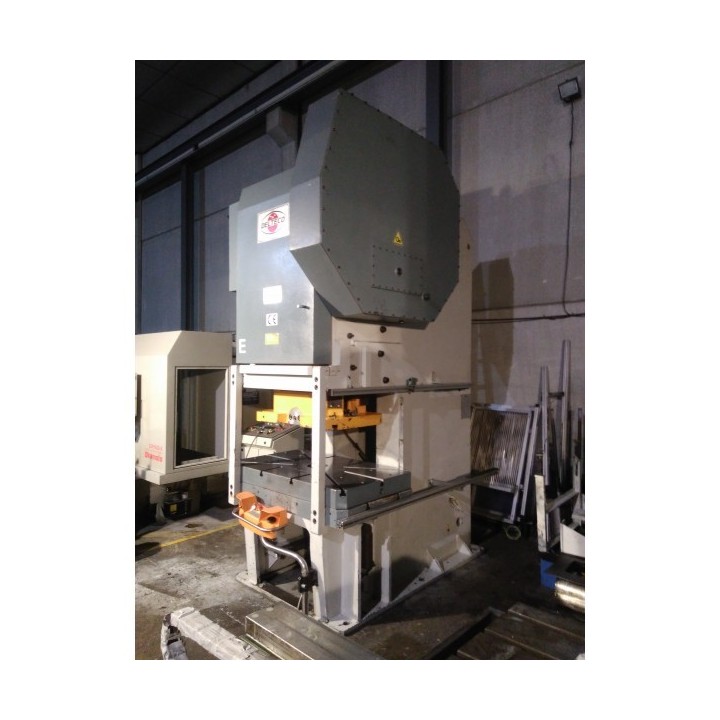

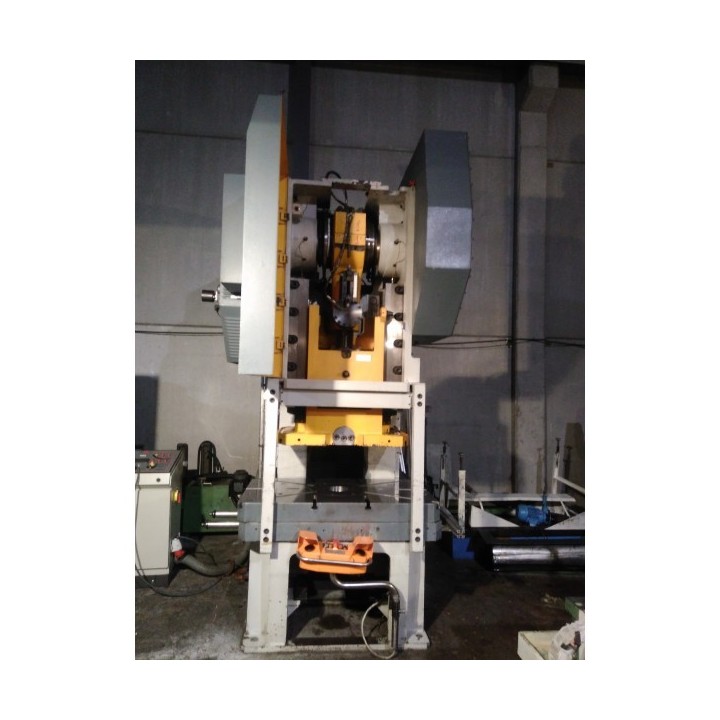

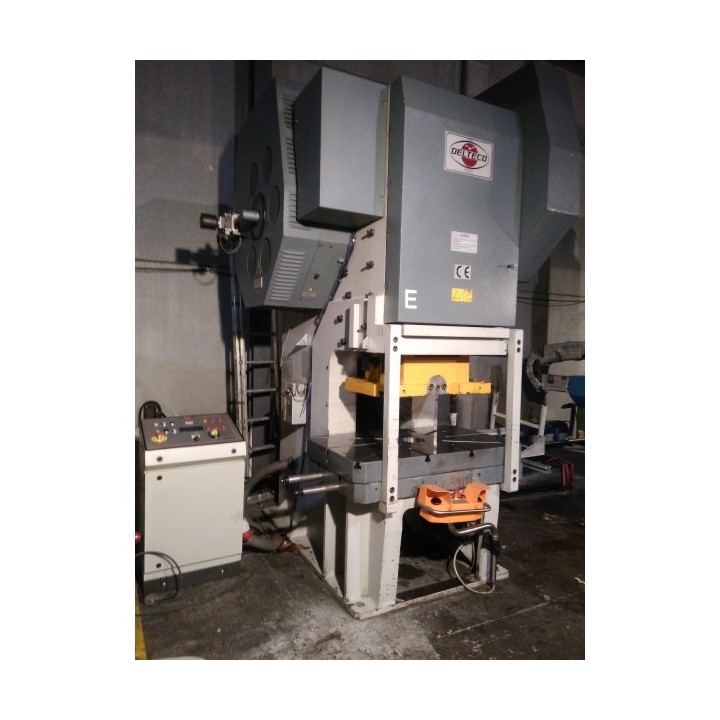

PRENSA DELTECO PE160

PRESS DELTECO PE160
Lifting points 2
Beats per minute in continuous operation 50
Maximum travel 160mm
Sliding adjustment 140mm
Spindle adjustment 120
RPM max. Flywheel 330
Installed power 15 + 2.2 Kw
Tension 380V
Rated force 1600 Kn
Mass of press 14,500 kg
Normal stop position P.M.S.
Mass max. Movable part of the punch 120 Kg.
Minimum travel 20mm
Height of maximum closed die 540mm
Total stop time 327 ms.
Safety distance with controls 523mm
Safety distance with 523mm immaterial barrier.
Characteristics of the biggest die:
Maximum mass 240 kg
Length 800mm
Width 550mm
