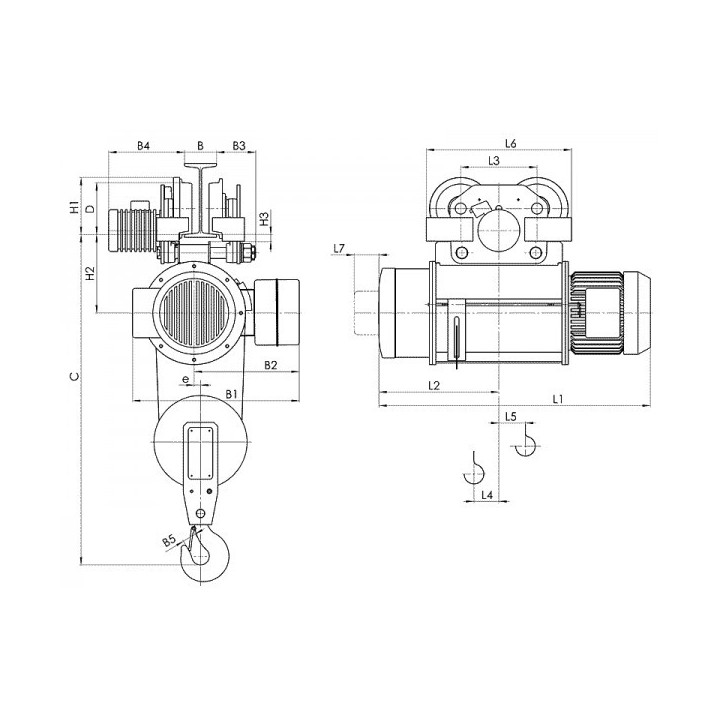

Electro cabrestante monorriel, con un carro

Electro monorail winch with lifting cable
Load capacity: 3.2 t
Lifting height of load; 6 m
Lifting speed 2-8 m-min (two speeds)
Travel speed of the winch by the rail; 6-20 m-min (two speeds)
Electromotor of lifting mechanism: with thermo-protection
Automatic conical brake
Working temperature regime; -29 to + 40⁰C
Manufacturing; General purpose model
Working rate 2m per FEM
Capstan protection class; IP54
I send; Cable button, with 4 buttons, stop key, IP65
Working voltage; 380 V to 60 Hz
Electric motor power: 4.5 KW
Power of the electric motor: 0.25 KW
