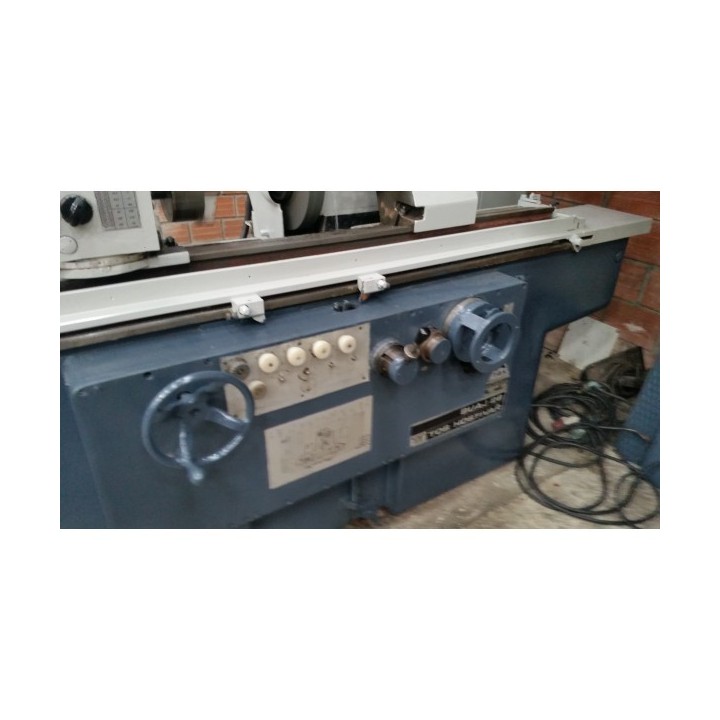

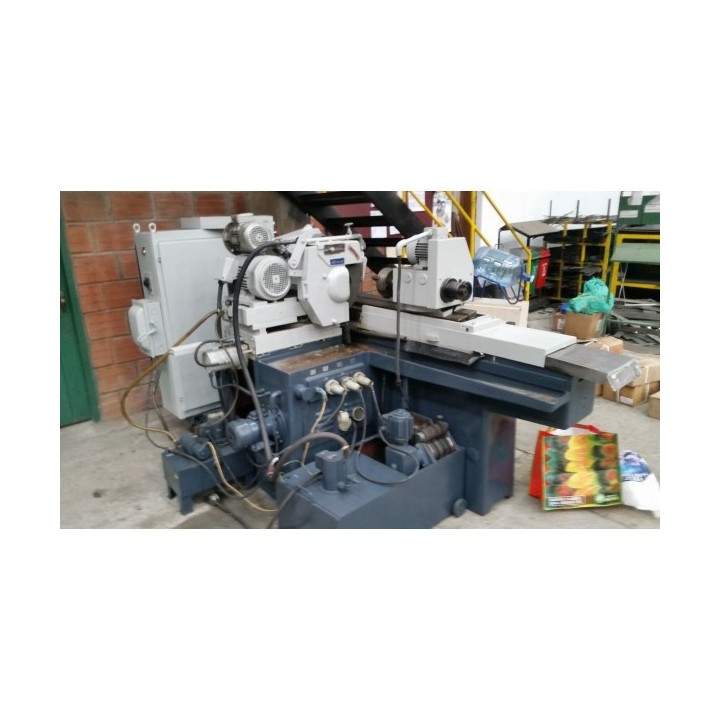

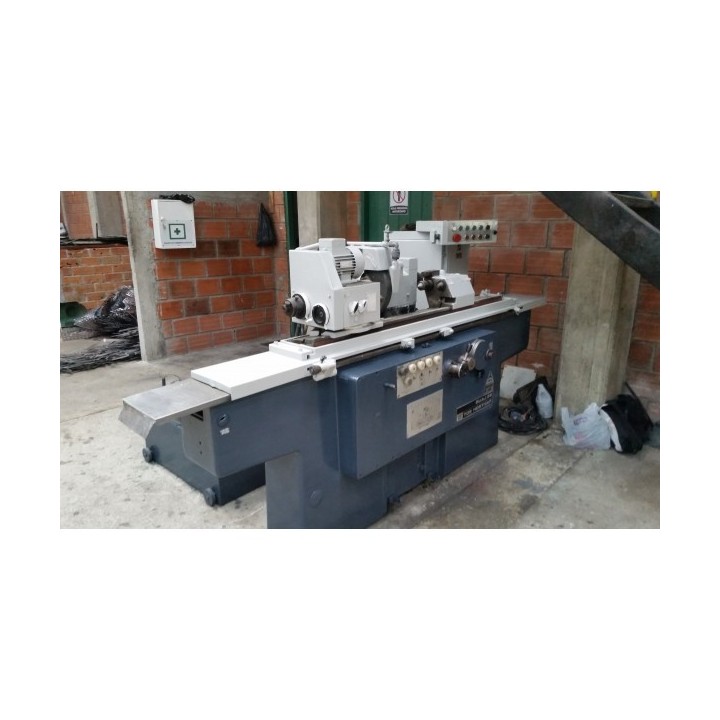

RECTIFICADORA CILINDRICA TOS HOSTIVAR BUAJ28

Serial Number 103069
Year 1990
Maximum Grinding Length 24.80 in 630.00 mm
Distance Between Centers 24.80 in 630.00 mm
Maximum Workpiece Weight 264.55 lbs 120.00 kg
Wheel Width Maximum 1.26 in 32.00 mm
Wheel Outside Diameter 15.75 in 400.00 mm
Wheel Width (Wheel Supplement Width) 1.57 in 40.00 mm
Wheel Inside Diameter 5.00 in 127.00 mm
Wheel head Angle Adjustable (Adjustable)
Wheel Spindle Power (Power Wheel) 12.47 HP 9.30 kW
Wheel Spindle Speed ​​2040 RPM or 2560 RPM
Workhead Power 0.75 HP 0.56 KW
Workhead Speed ​​From-Up to 22.4 - 710 RPM
Power Existing
Machine Length (Length) 114.17 in 2900.00 mm
Machine Width (Width) 64.96 in 1650.00 mm
Machine Height 59.06 in 1500.00 mm
Weight (Weight) 5070.63 lbs 2300.00 kg.
