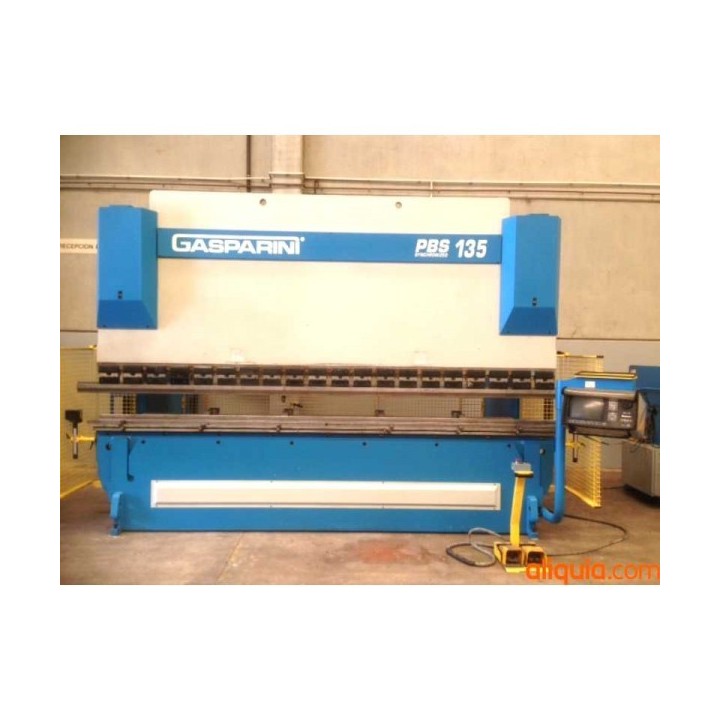

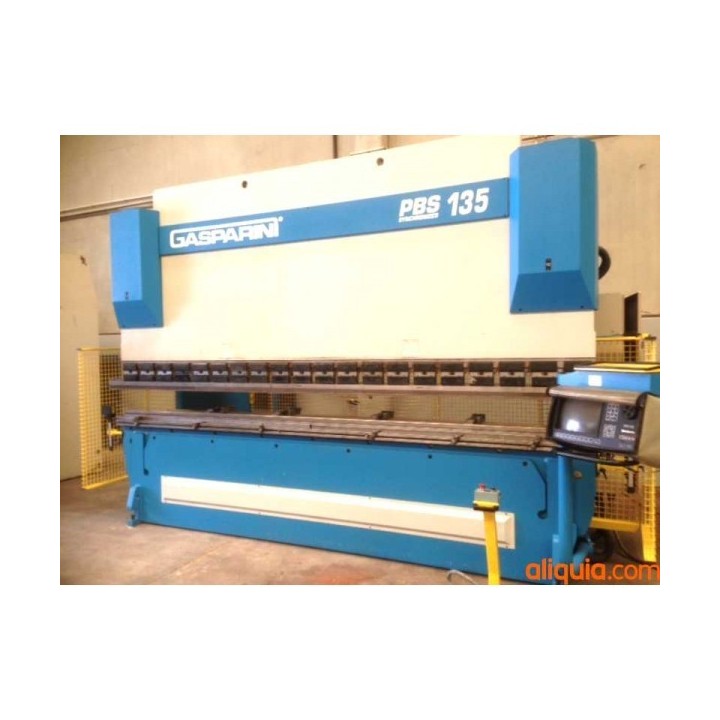

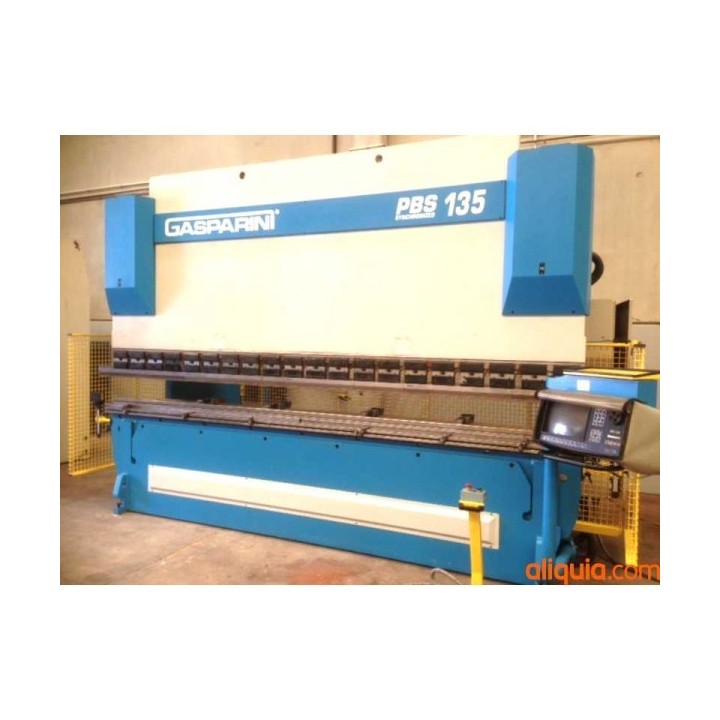

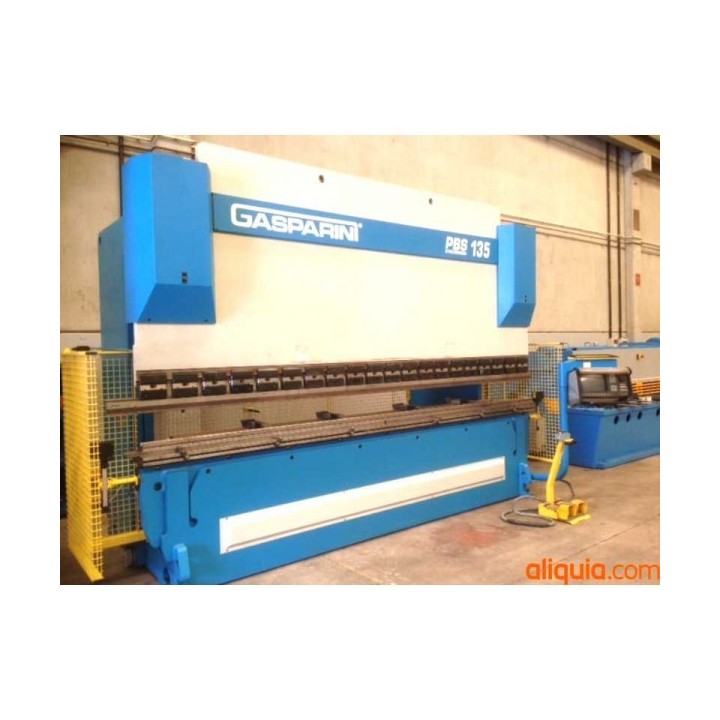

Plegadora CNC GASPARINI de 4 metros

Features:

Length of bending: 4100 mm.
Power: 135 Tn.

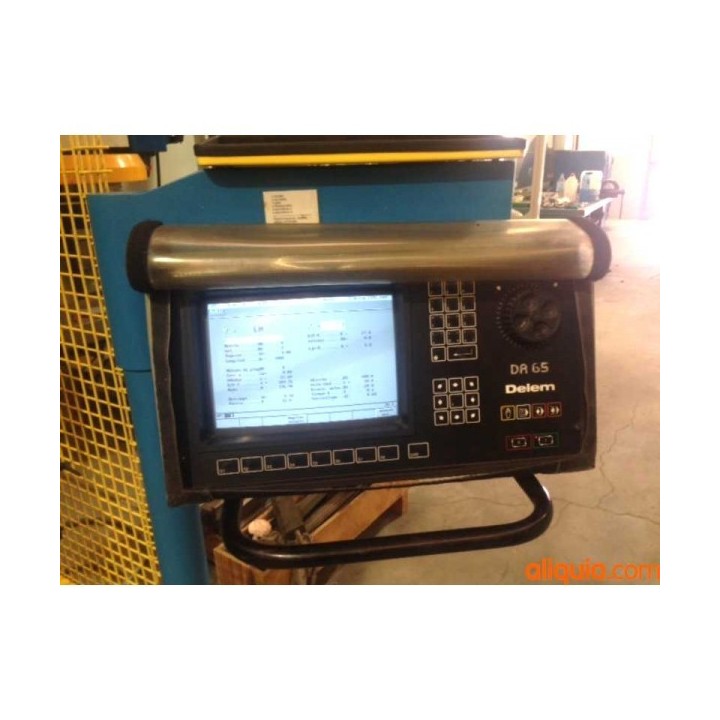

Control Delem DA 65
4 axes Y1, Y2, X, R + hydraulic pump table.
Return force: 120 Kn
Career maximum: 250 mm.
Speed of approach: 0 to 100 mm / s
Folding speed: 0 to 10 mm/s
Return speed: 0 to 120 mm/s
Distance between frames: 3600 mm.
Gooseneck: 450 mm.
Open machine height: 440 mm.
Engine power: 15 Kw
Weight: 14000 Kg.
Maximum operating pressure: 220 bar

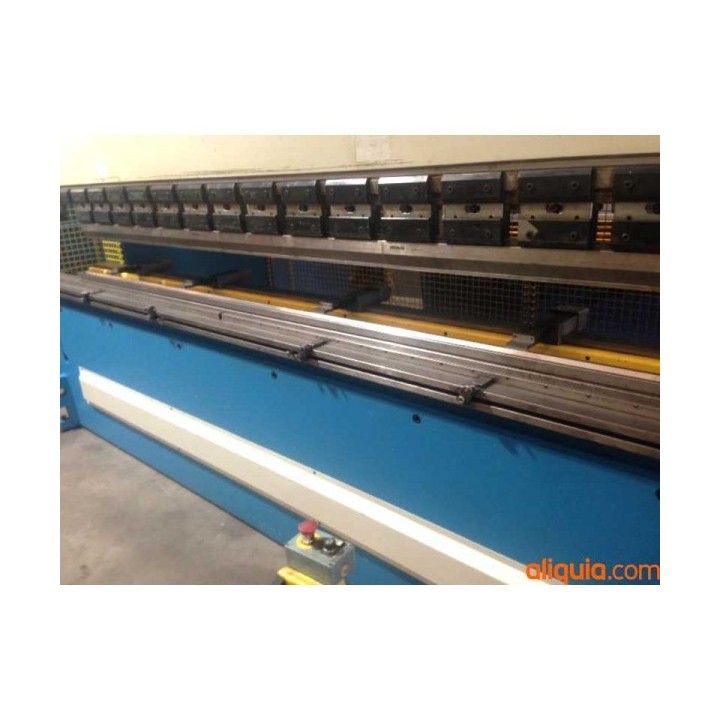

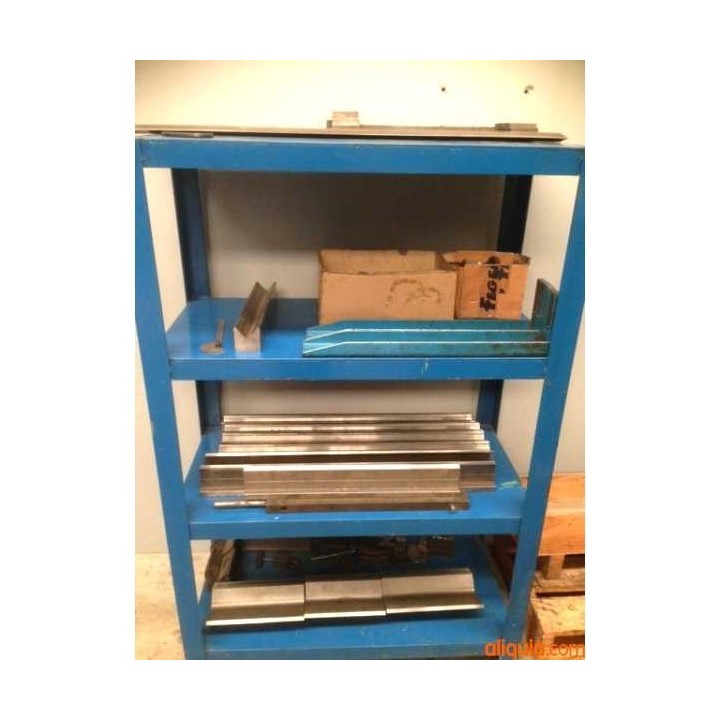

Complete tooling
Year 2001
CE standards
In perfect condition
