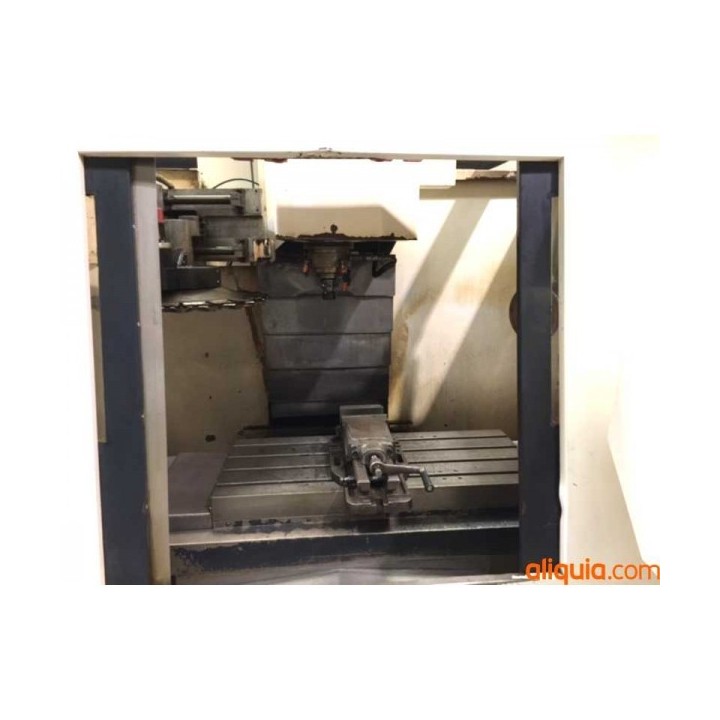

Centro de mecanizado vertical KRYLE

Features:

Machining Center: Kryle (English manufacture)

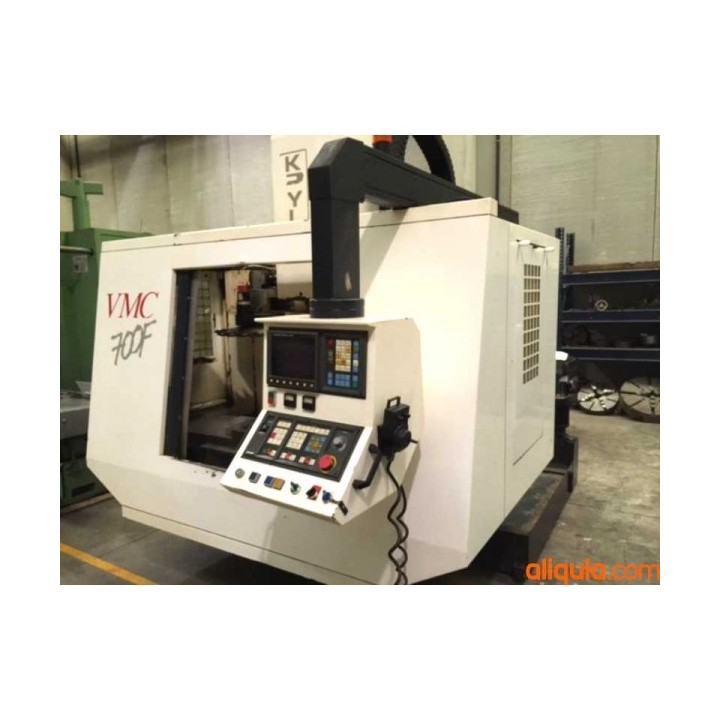

Model: VMC 700F

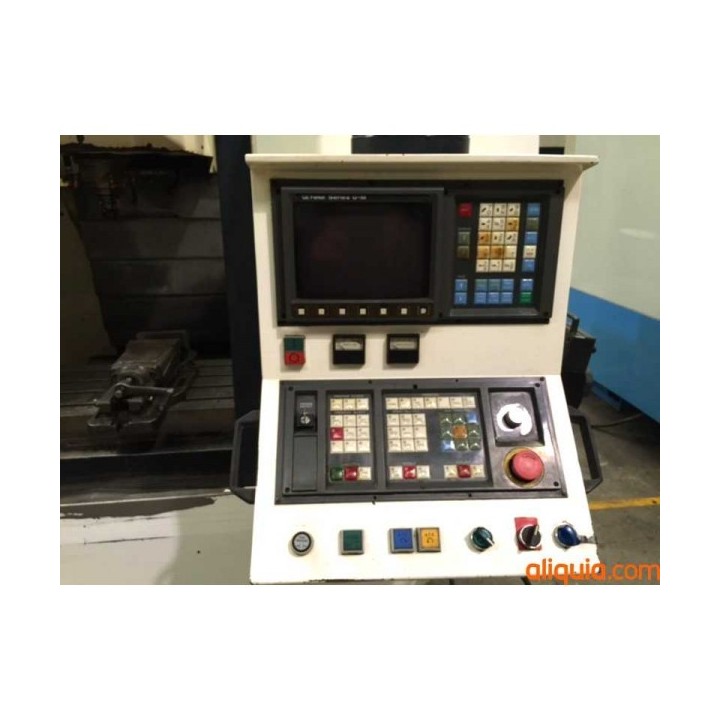

Control: FANUC OM
Travel Longitudinal x 700 mm
Transverse travel: 450 mm
Vertical travel: 450 mm
Spindle to table travel: 85-535 mm
Travel of spindle to column: 460 mm

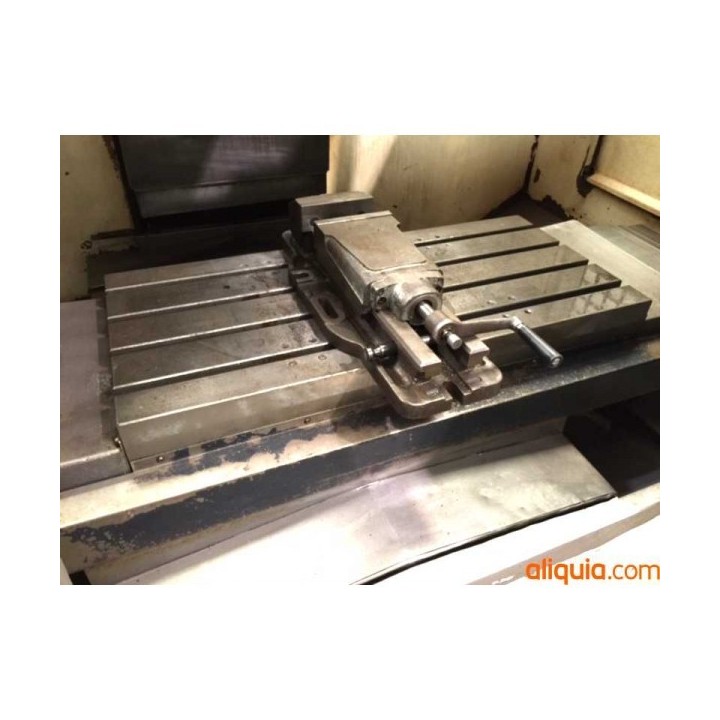

Table dimensions: 1000 × 480 mm
Weight Max. about table 1000 kg.
Speed main spindle (rpm): 80-8000

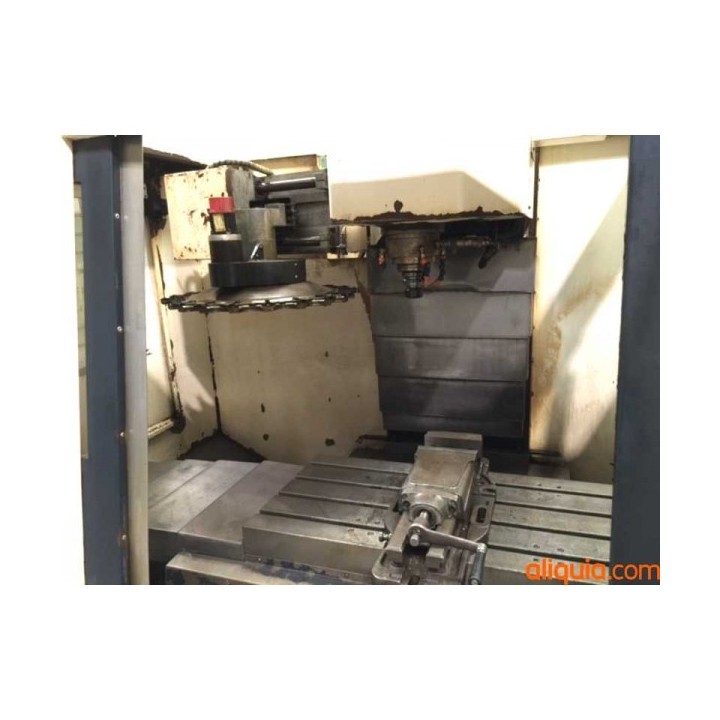

Type of automatic tool change: umbrella
Number of tools: 20
Type of cone: BT 40
Diameter bearing front: 90 mm
Fast forward / axes X, Y, Z: 30M per minute
Cutting feedrate: 1-30.000 mm per minute
Speed forward manual: 1-1260 mm per minute
Number of channels: 4
Distance between channels: 110 mm
Wide channel t 18 mm
Max tool diameter: 110 mm
Maximum tool length: 250 mm
Maximum tool weight: 4kg
Time of change of tool: 5 seconds
Chip time: 9 seconds
Chuck: MAS 403-1
Main spindle motor power: AC 12 P
Power motor axes X, y: 7,5 Kw
Z axis motor power 5S/1,2 kw
Motor power change tool: 3,0 S
Machine dimensions: 2560 mm x 2400 mm x 2150 mm
Machine weight: 3900Kg
Certificate C.E.
