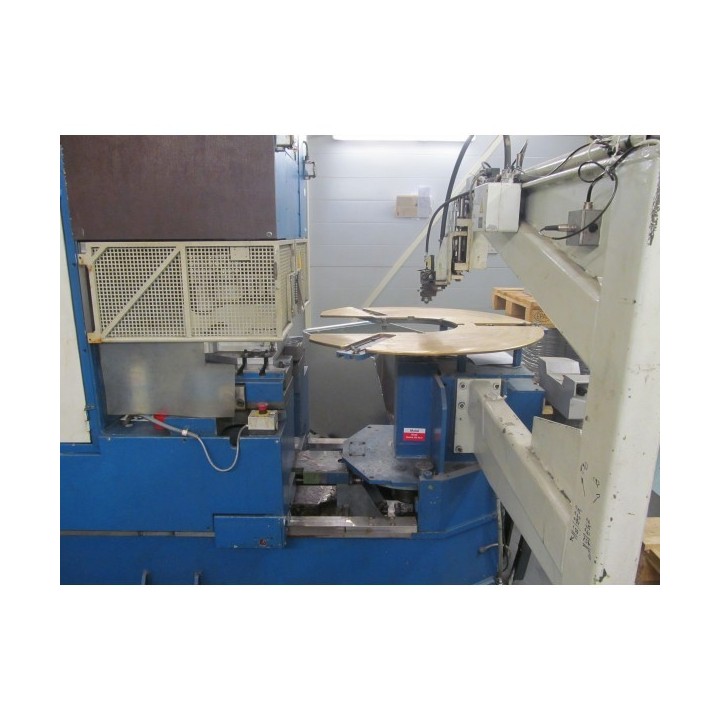

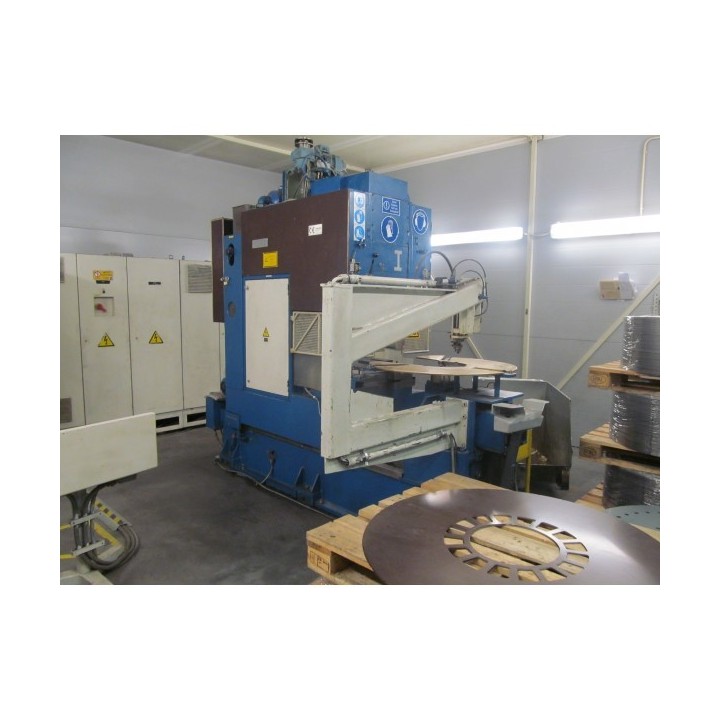

Schuler N16N Notching press

- Press force 160 kN;

- Year 1984;

- Maximum lamination thickness 2,0 mm;

- Maximum lamination external diameter (current worktable) 1800 (1050) mm;

- Shut height SDAU 260 mm;

- Slide stroke 42 mm;

- Slide adjustment 18 mm;

- Working table 600 x 360 mm;

- Scrap hole size 90 x 180 mm;

- Slide and rotation center distance (notching radius) 135...700 mm;

- Notch count 12...999 pc;

- Stamping speed variable 100...600 spm;

- Power supply 23 kVA;

- Pressure air supply 5,5 bar 40 l/min;

- Overal height above floorlevel 3300 mm;

- Overal weight < 10 000 kg;

- CE marking yes;
