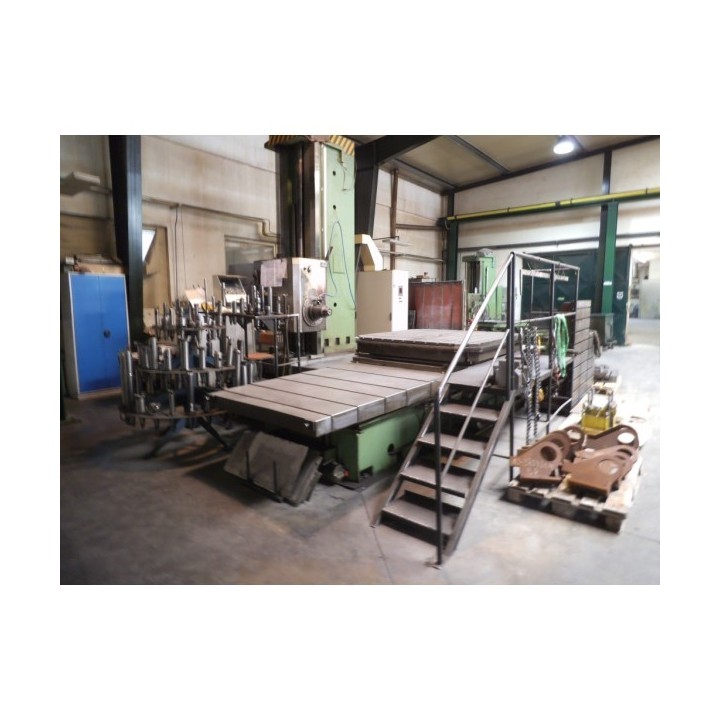

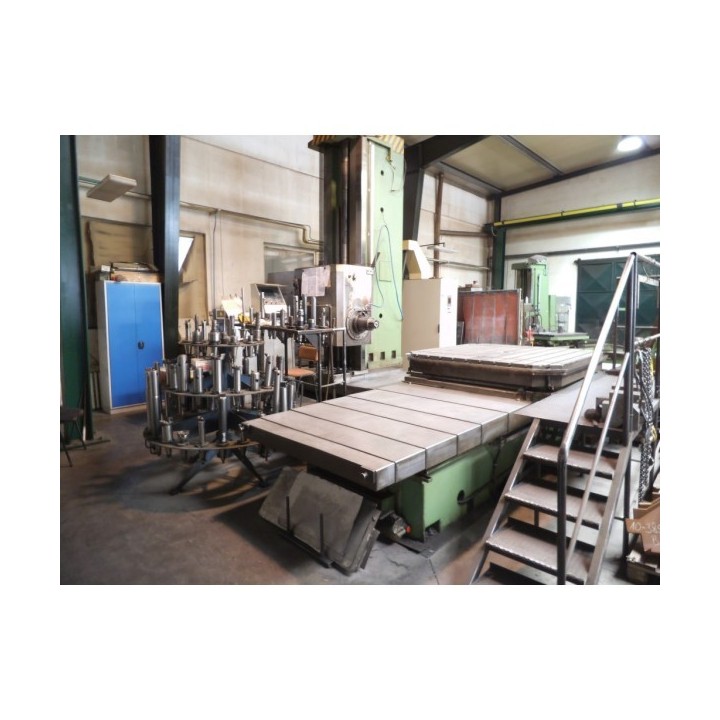

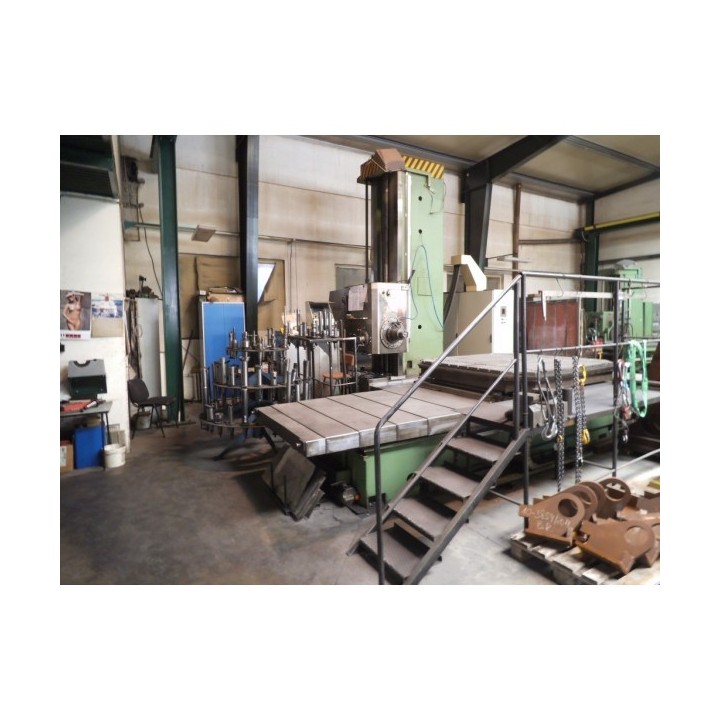

Tischbohrwerk

GO 2008

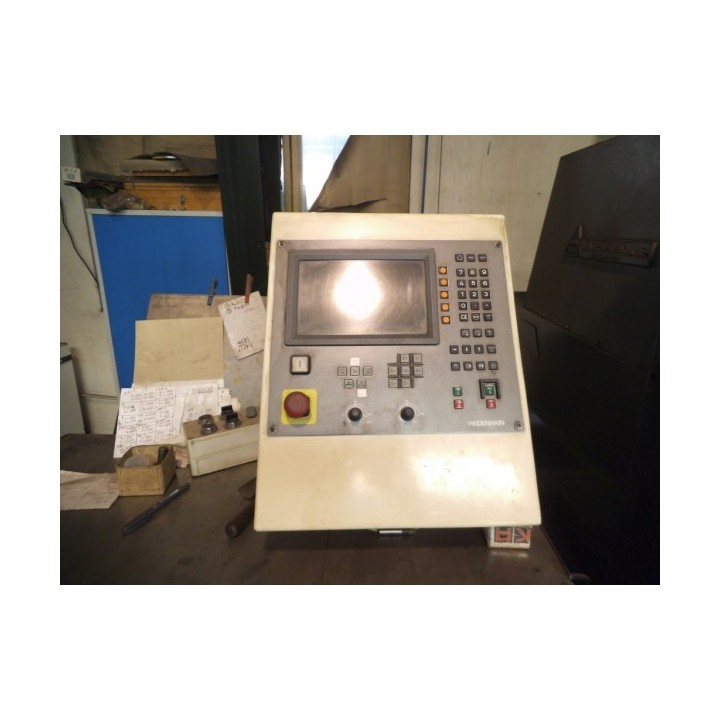

Control system: Heidenhain TNC 320

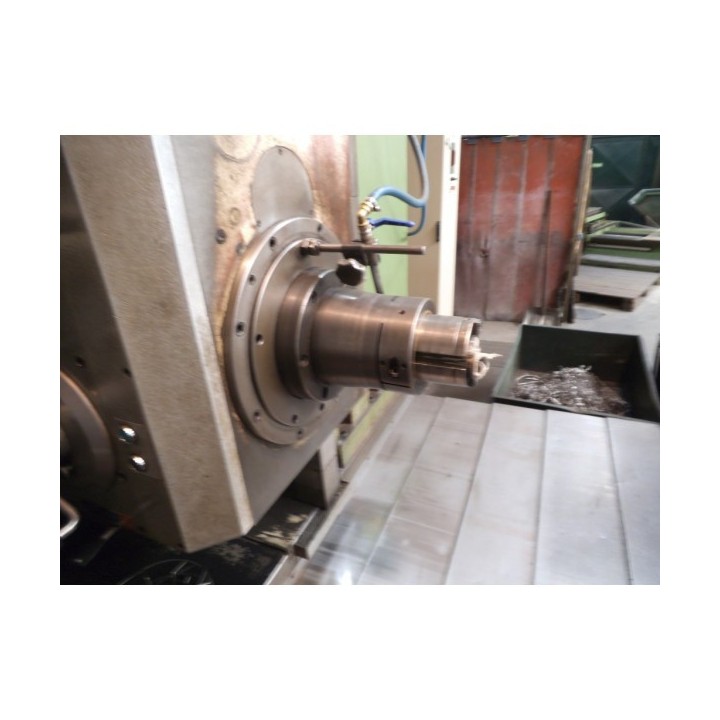

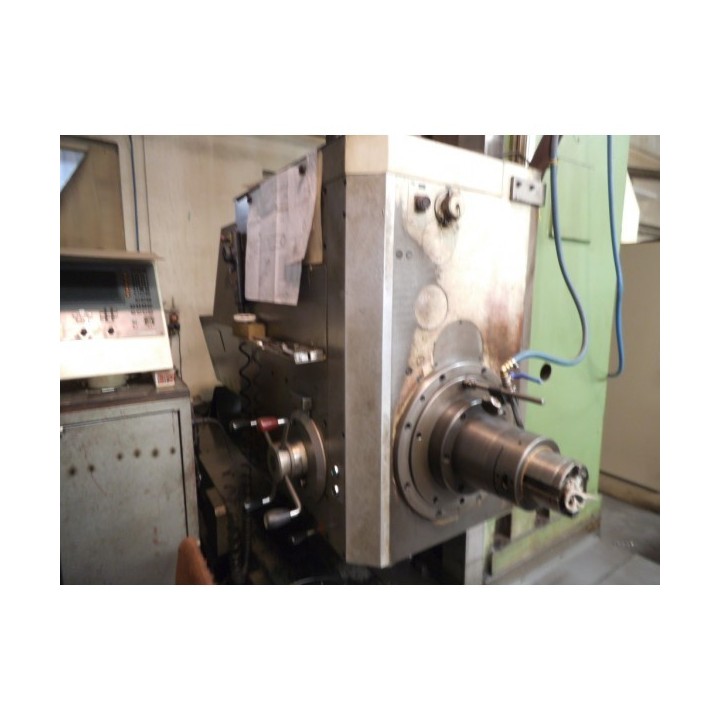

Spindle diameter: Ø 130 mm
Spindle: CSN 22 0430 50
Spindle speed range: 12.5 to 800 rpm
Tool cooling: external
Main motor power: 38 kW
Maximum spindle torque: 10,300 Nm
Crossing the table: (X) - 2000 mm
Height adjustment of the working spindle axis: (Y) - 2000 mm
Longitudinal setting: (B) - 1250 mm
Extension of the working spindle: (Z) - (Z axis with NC system)
Feedrate X-Y-W- Z: First line - 2.5-160 mm - min
II. Series - 50-3 200 mm - min
Rapid X- Y-Z-: W - 3200 mm - min
Clamping range - swivel: 1 800 x 1600 mm
handwheel
