Roland MODELA MDX15

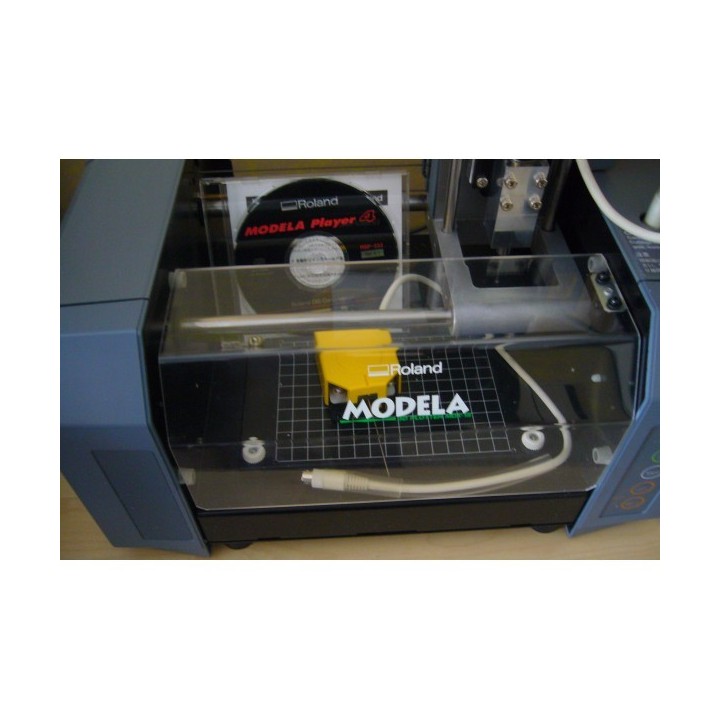

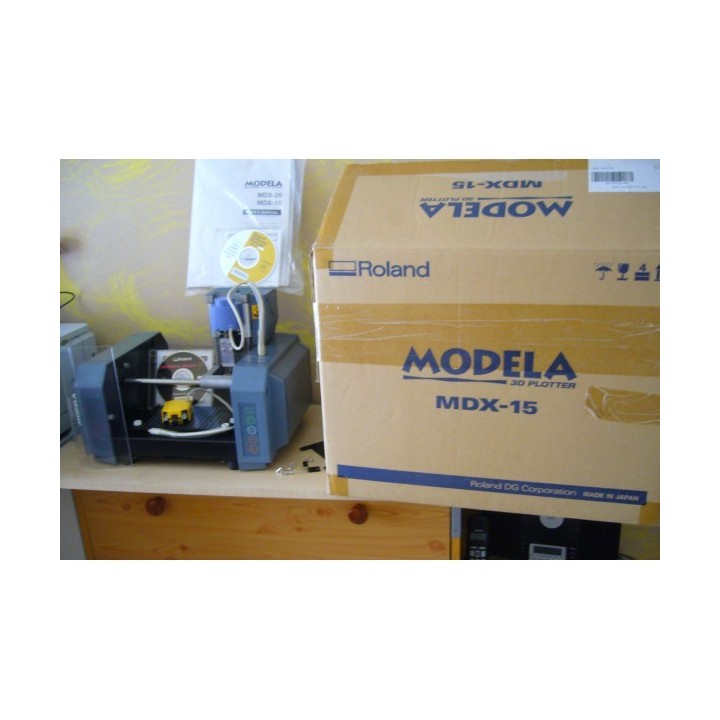

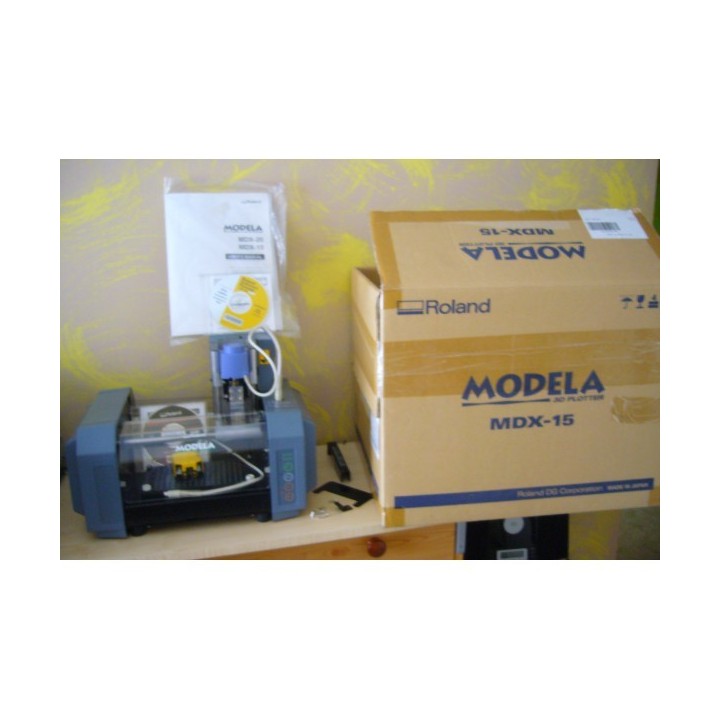

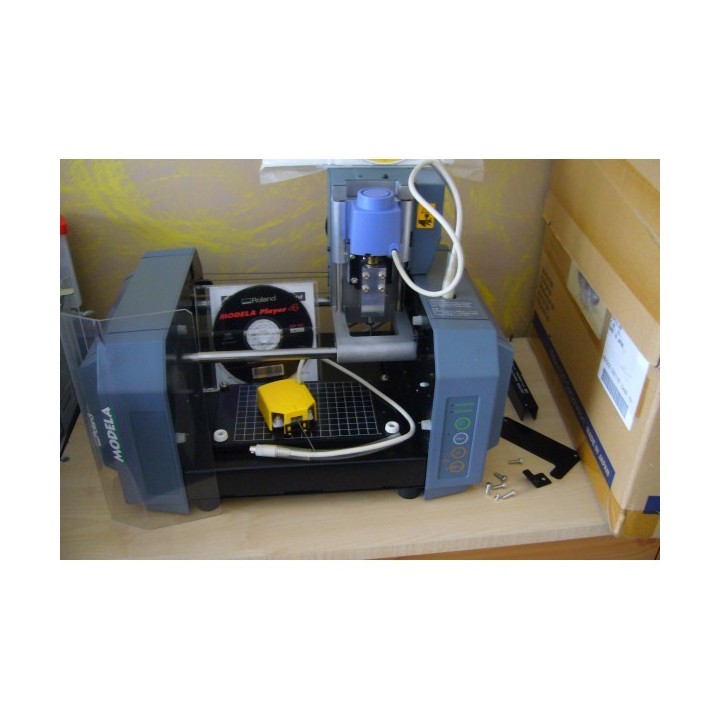

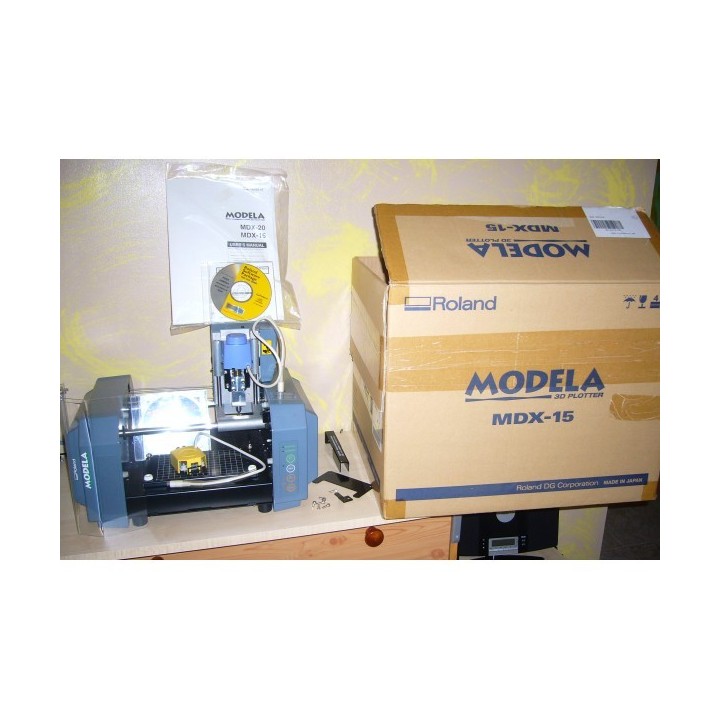

Roland MODELÂ MDX15 (with only 50 hours of use, end of career project), is a machine for milling and scanning by contact in 3D, strawberry and cut material to three-dimensional objects created with 3D software, can also record plates using data from line drawings. Kit contains AC adapter, power cord, package software Roland, the rotor unit, the sensor unit (3D scanner), cable series in the form of T (RS-232 c class) mounted and proven personally (not a straight serial cable can be used as that is normally used to connect a modem), 4 screws M4 x 15 screw M3 x 3 cover front, two Allen wrenches, a 3mm i another 1.5 mm, positioning pins 2 units (diameter 3 mm, length 20 mm), double sided tape, clay and user manual. The programs included the two CDs are, models (models Player, models 3D DESIGN, modeling 3D TEXT), Virtual MODELÂ, Dr.Engrave, 3D Engrave, Dr.PICZA. If you do not have a serial port on computer is would that enable the serial port from the motherboard with a connector Act for the purpose, if you do not have the connector also facilitated you it.
The features are: the router:

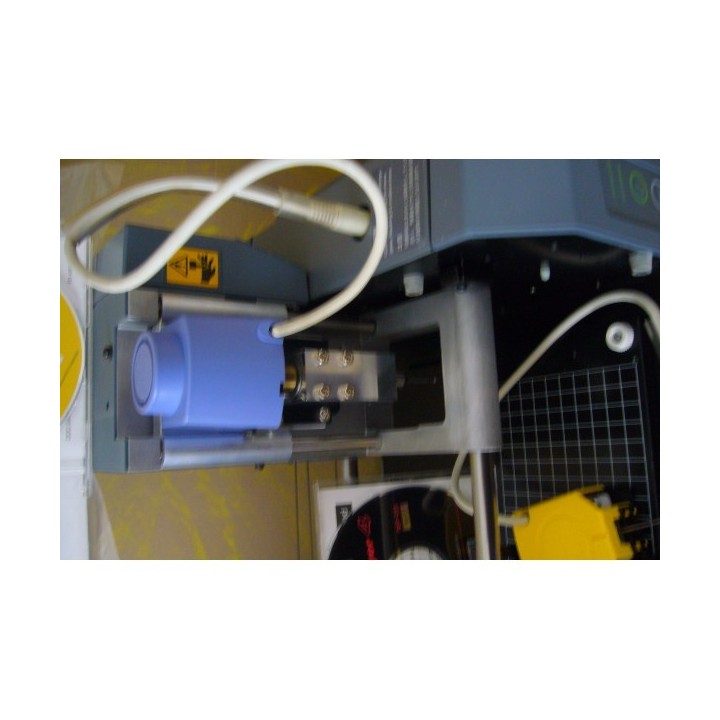

Maximum work area (X, Y, Z in mm) 150 x 100 x 60, size of a base (X, Y in mm) 170 x 110, maximum weight supported by the base 0.5 Kg, external dimensions (X, Y, Z mm) 426 x 280 x 305, weight 9.6 Kg, maximum speed 15 mm s, control keys (Standby, View, Tool-Up, Tool-Down), 5 to 40 ° C operating temperature , power consumption (DC+19V 2.1a exclusive AC adapter), spindle motor 10 W (DC Motor), diameter tool 2.35 mm, resolution by software 0.025 mm/step, mechanical resolution 0.00625 mm/step, speed spindle 6,500 rpm, materials (wood, plastic, resin, wax, graphite, aluminum, bronze, copper, stone, etc.)
For the 3D scanner:

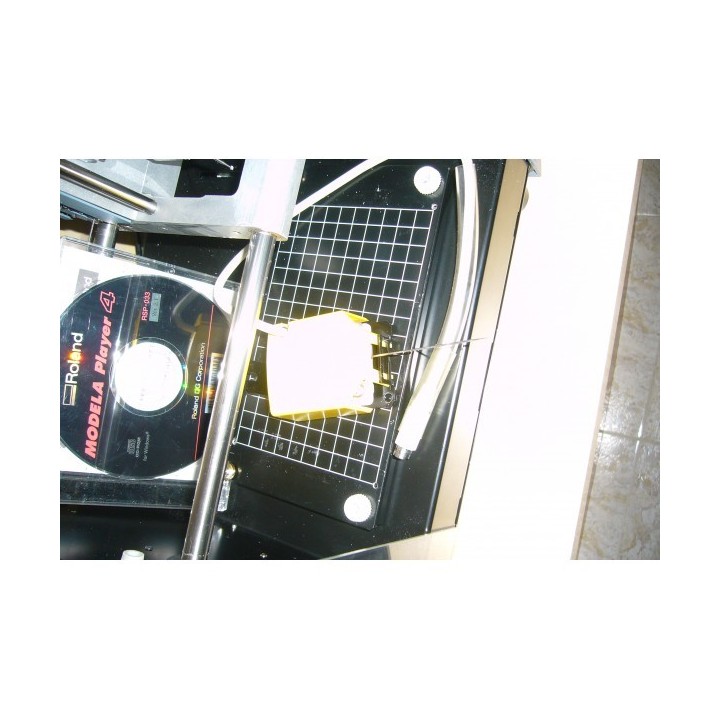

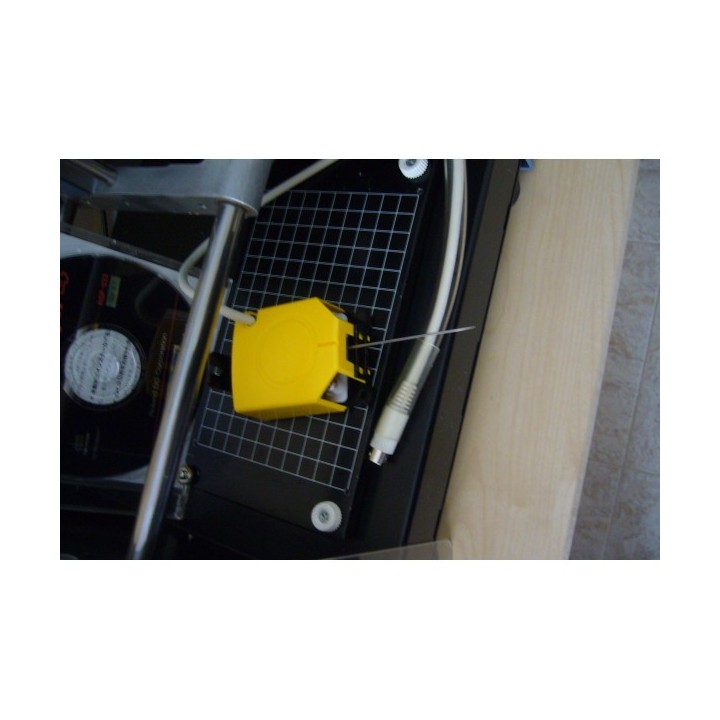

Sensor RASP, length of tube 60 mm, diameter of the tip 0.08 mm, scanned by contact method, resolution (adjustable x/y axes of 0.05 to 5.00 mm in steps of 0.05 mm) Z-axis 0.025 mm), 4 to 15 mm/s speed, exported files in DXF, VRML, STL, 3DMF, IGES, grayscale and point cloud.
