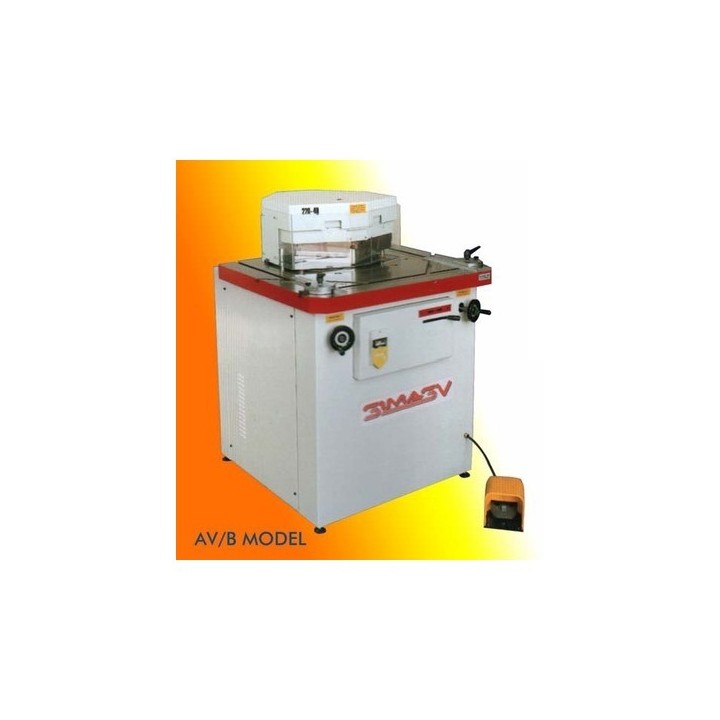

Escantoneadora de ángulo variable AV/226

Hydraulic locking devices for cutting blades with safety in the event of a fault system
Capacity Max. cutting (blades 60 °): 220 x 6 mm (R42kg/mm2)
Capacity Max. cutting (blades 60 °): 220 x 5 mm stainless steel. (R60 kg/mm2)
Automatic regulation of the space between the sheets by means of patented system that acts on each sheet independently
N.B.: this unique and patented system, the length of sheets is unlimited
Sturdy work table of cast grey iron for greater rigidity to the machine and a mejordeslizamiento of the sheets
External structure of reinforced and painted plate
Conical grooves on the artboard that prevent games caused by normal wear and tear
Support structure below the artboard of grey iron, spheroidal, adequate parasoportar all the blows of shearing, thus avoiding efforts to the table
Head of special cast gray iron cut, guided on five parts which provide absolute rigidity to the head and leaves, thus prolonging its duration
Monoblock hydraulic power equipment
Electric control panel located below the worktable to avoid knocks or accidental collisions.
Drive with electric pedal
Exempt from maintenance and lubrication
The cutting area lighting
Maximum external dimensions: mm. 950x1000x h. 1220
Work table: mm.950x800
Length of the hoja:mm. 220
Strokes per minute: 40
Motor: kW. 2.2
Weight: Kg. 800
Fully equipped
