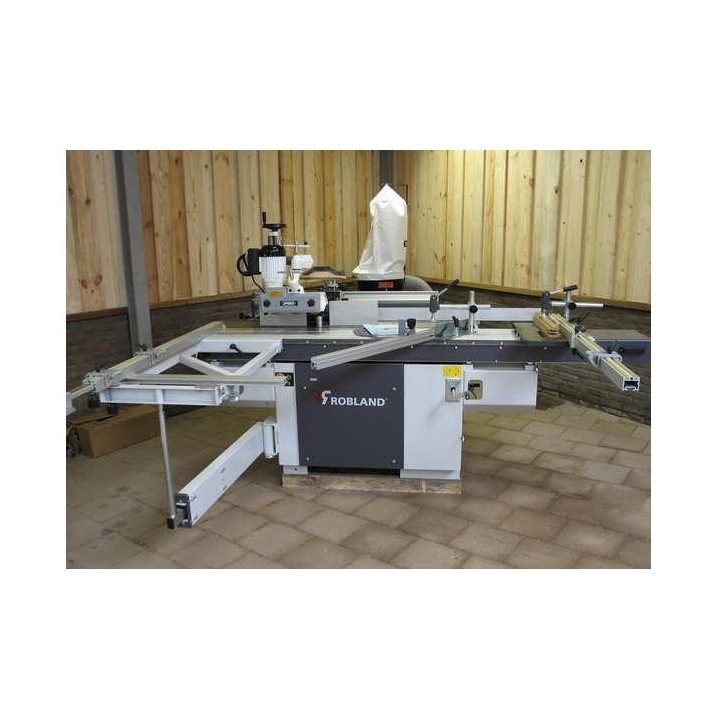

Robland NLX 310 Luxe

Robland NLX 310 Luxe
Voltage 230 V Mono - 400 V Drehstrom - 3 phases
saw
Diameter of the saw blade and gave birth 300 x 30 mm
Cutting depth at 90 ° - 45 ° 100 mm - 70 mm
Dimensions cast iron table 1150 x 350 mm
Sliding table length 1700 mm (option 2500 mm)
Cutting width parallel fence 800 mm
Three-phase 4 PS - hp motor (option 5 PS - hp)
3 PS single phase motor - hp
R.P.M. 4500
incisor
Diameter of the saw blade and gave birth 100 x 20 mm
R.P.M. 8200
Engine power 0.75 CV - CV
axis
R.P.M. 2900-4000-6000-7500
Shaft diameter 30 mm shaft (option 50 mm)
Shaft capacity 125 mm shaft
Travel 140mm
Table dimensions 180 mm opening
Motor power 4 PS - hp (option 5 PS - hp)
Planer-thicknesser
Total of brush tables 1400 mm in length
Thicknessing table dimensions 430 x 310 mm
Thickness capacity 230 mm
Cutting block diameter 70 mm
Knives 3
Knife dimensions 310 x 25 x 3 mm
Feed speed 6 m - min
R.P.M. 5200
Motor power 4 PS - hp (option 5 PS -
