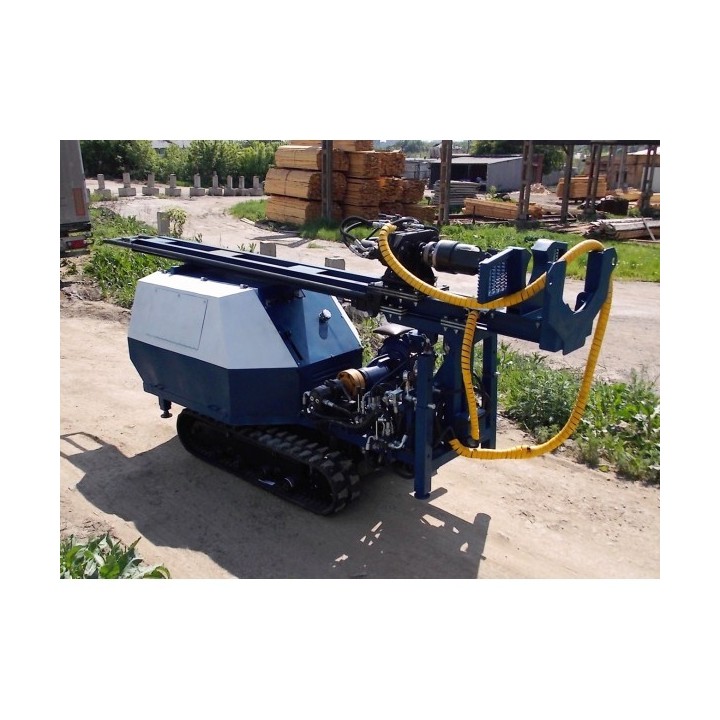

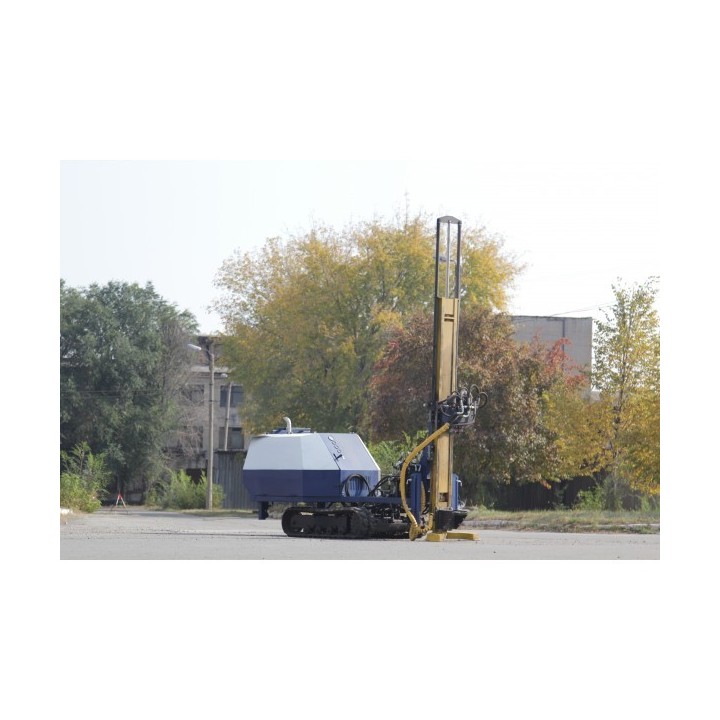

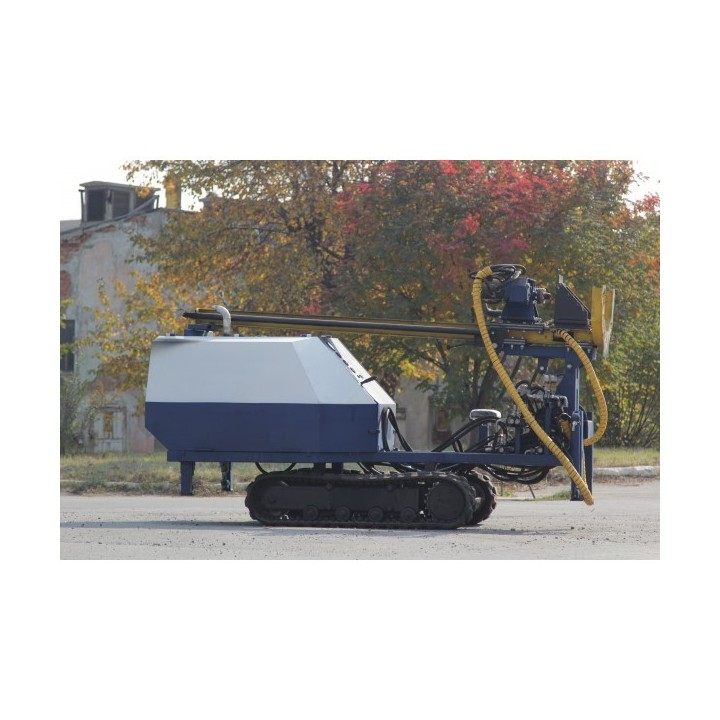

SBU-60XL

Machine power: 44,13 kW; 60 hp
The firmness of the rocks category: maximum
Initial maximum bit diameter: 300 mm.

Probing depth:
With wash - up to 200 meters;
Purge - 50 metres;
With spiral drill (diameter - 135)-up to 30 meters.

Max torque: 1500 N•m (according to specification can be increased up to 2000 N•m);
Frequency of revolutions of the head: 0-140 rpm;
Feed of the trolley head: cylinder
Effort of the rise: 5000 kg;
Effort of the descent: 3000 kg;
Engine: diesel, 60 hp;
Type of train - rubber Caterpillar chain
Dimensions: 3100/1420/1900
Weight: up to 1200 kg.
