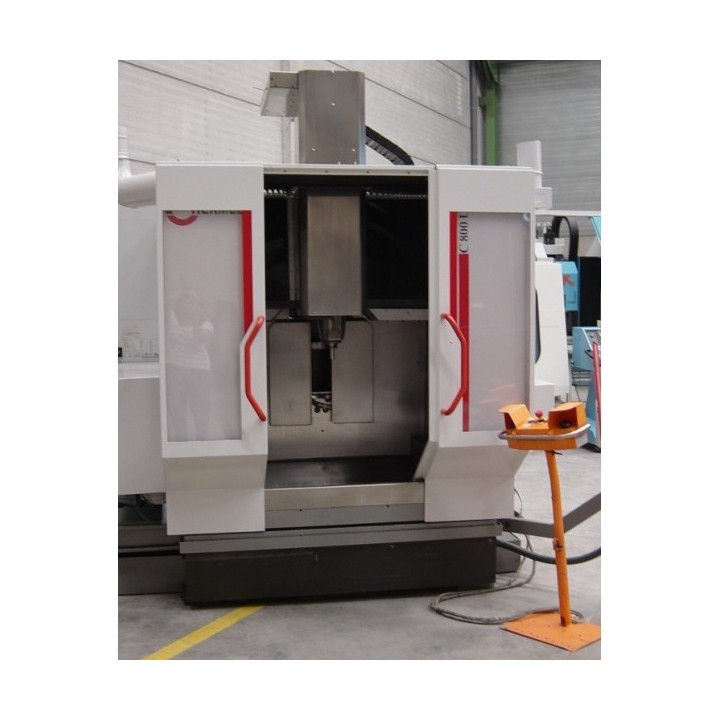

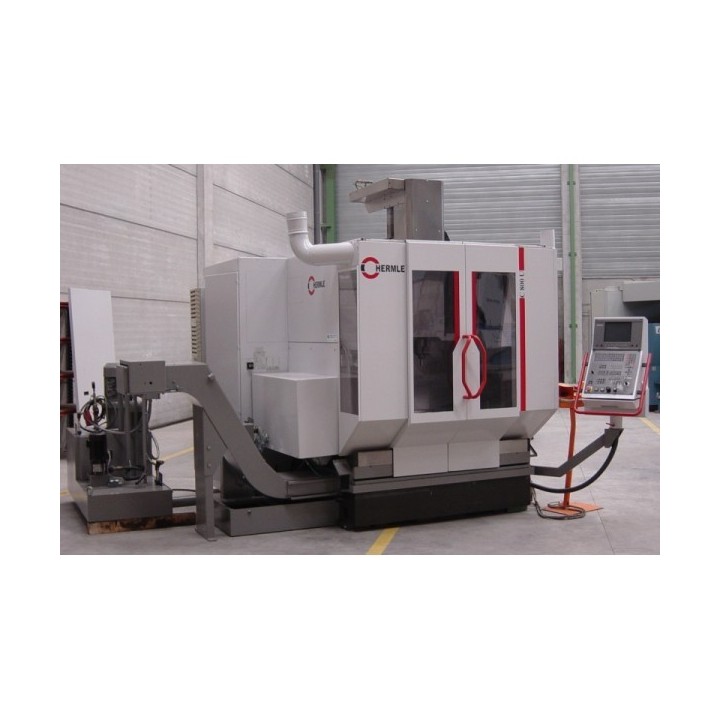

HERMLE C-800 U

HERMLE 4-axis vertical machining center
Model C-800 U
Table tilt with 360 ° (4 axes)
Tours:
•Ceramic shaft x 800 mm
•Ceramic shaft and 600 mm
•Ceramic z shaft 500 mm
Shafts speed 35 m/min
Chuck speed 15000 rpm.
70 mm. Chuck diameter
Cone HSK A63 equivalent (ISO 40)
Power 400 V, 50 Hz.
2700 x 2210 x 2930 mm machine dimensions
Weight 8500 kg
Year 1999

Equipped with:
•HEIDENHAIN TNC 430
•Cargador of 30 tools
•Refrigeracion internal 40 bars
•Grupo hydraulic clamping piece
•Refrigeracion integrated cupboard
Chips •Extractor
•Ethernet
•Preparado for:
SONDA break
SONDA centering tool
SONDA centering piece
