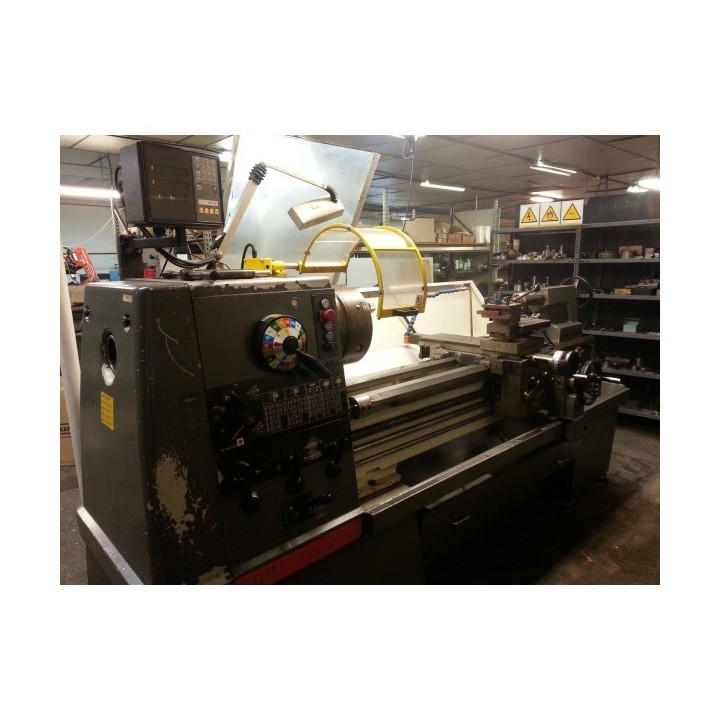

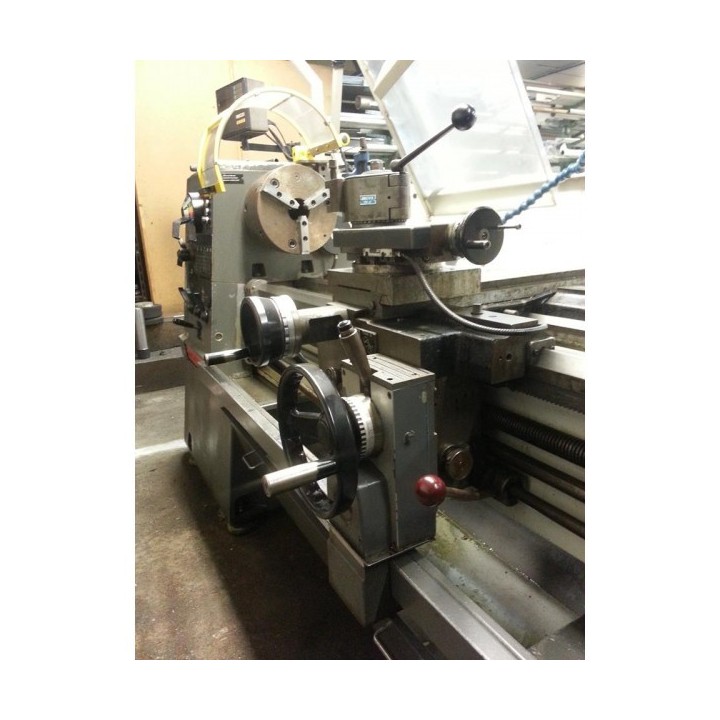

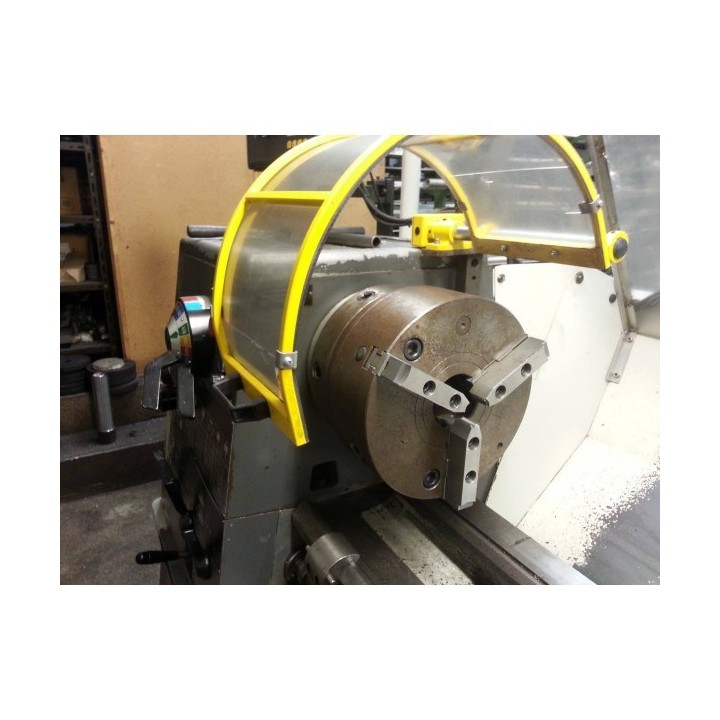

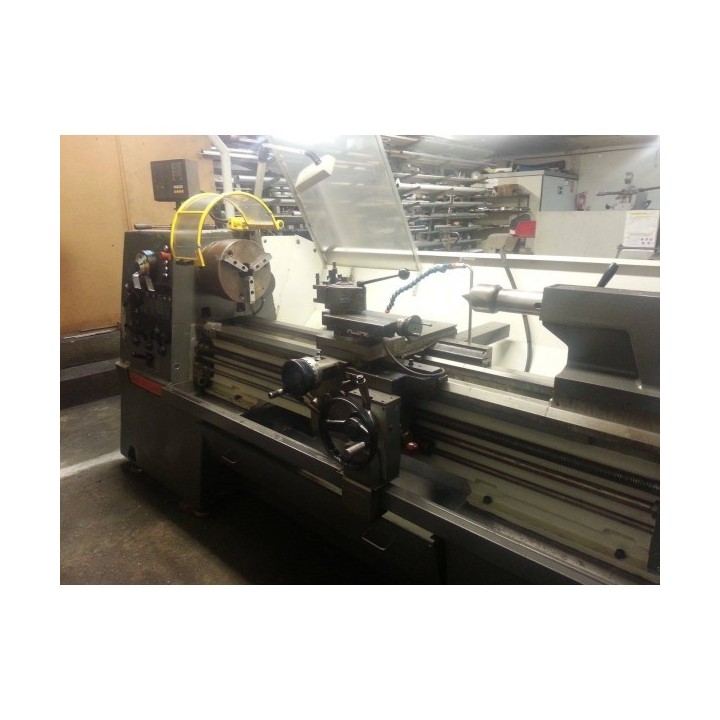

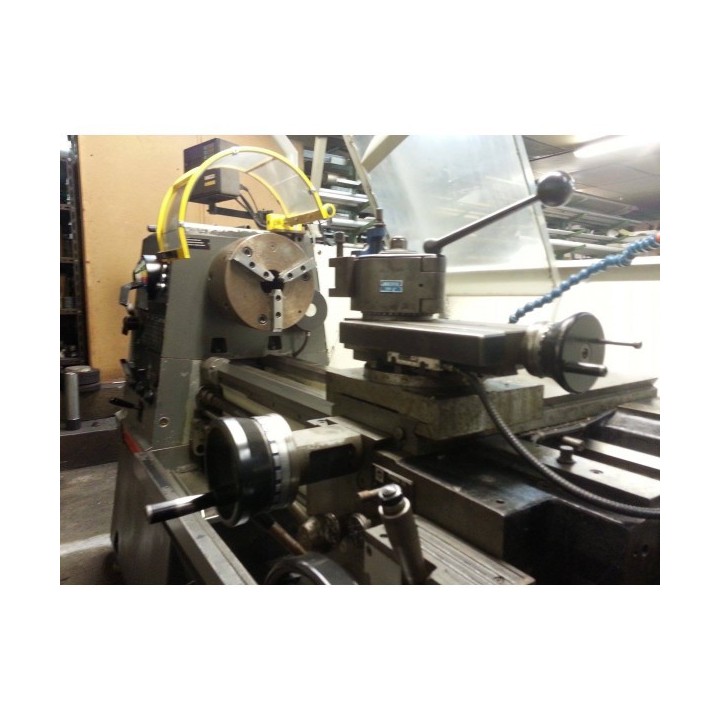

Colchester Mastiff 1400 lathe

Sold from particular to particular Colchester Mastiff 1400 lathe for renewal of machinery in the company.

Avoid buying and selling companies.

You can call us or come to see the machine without commitment.

Price: €8.000

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

CENTRES
Height: 270mm
Admits between: 1, 1.5, 2, 2.5, 3

SWING
Over bed: 535mm
over cross-slide: 370mm
In gap: 815mm
In front of the spindle nose length: 203mm

SPINDLE
Bored to pass: 90mm
Nose type: 11 D1
Morse taper in bush: No. 5

SPINDLE SPEEDS
Nº.off: 16

MOTOR (main)
1,000 rpm.
9.3Kw

BED
Width of ways: 343mm
Depth under headstock: 381mm
Type of ways: Vee and flat

CROSS-SLIDE
Width and lenght: 203x622mm
Travel: 279mm

TOP SLIDE
Width: 127mm
Travel: 152mm
Tool selection: 32x32mm
Quick change tooling: Dickson No. 3 X

TAILSTOCK
Quill diameter: 74, 61 mm
Set over: 12, 7 mm

LEADSCREW
Diameter: 38, 1mm
Thread: 6mm

THREADS
Metric pitches: 0.4-14.0mm
Imperial T.P.I.: 2-72
Module pitches: 0.3-3.5 MOD
Diametral pitches: 8-60

FEEDS
Metric 0.06-1. 0 mm
Imperial: 0.002-0.032 in

HEIGHT OF MACHINE
Floor to spindle centre: 1,172 mm

OVERALL LENGHT
1 metre machine: 2,520 mm
1.5 metre machine: 3.030mm
2 metre machine: 3,535 mm
2.5 metre machine: 4.045mm
3 metre machine: 4.600mm

WEIGHT
1 metre machine: 2,320 kg
1.5 metre machine: 2.470kg
2 metre machine: 2.620kg
2.5 metre machine: 2.880kg
3 metre machine: 3.250kg
