PUMA 400MB

Swing: 24"
Year of Manufacture: 2012
Manufacturer: Mazak
Model: PUMA 400MB
Condition: Used
Specifications
Maximum Swing: 24"
Maximum Turning Diameter: 14.75"
Maximum Turning Length: 21.7"
Hole in Spindle: 2.5"
Bar Capacity: 3" (3.15" Hole)
Maximum Spindle Speed: 4,000 RPM
Turret Positions: 12
X-Axis Travel: 9.05"
Z-Axis Travel: 22.63"

FANUC Oi-TD CNC CONTROL WITH MANUGUIDE

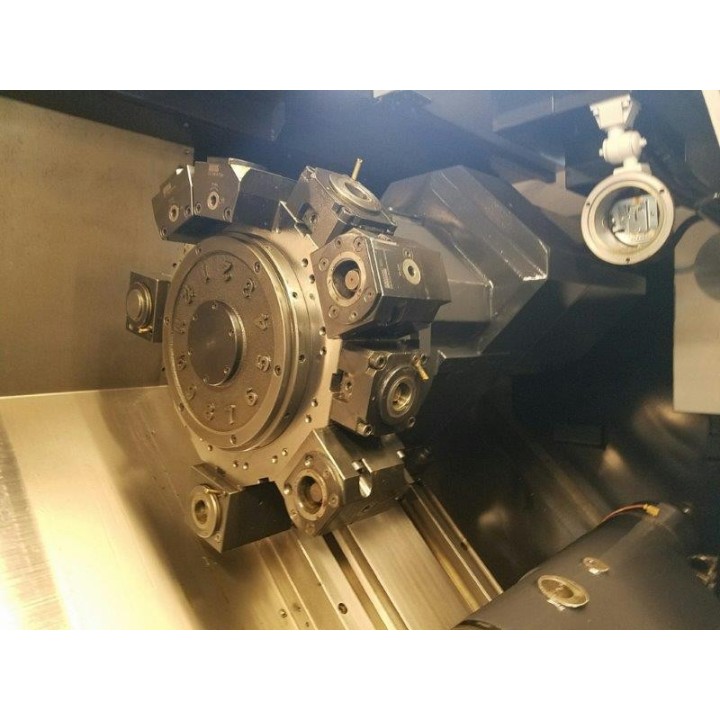

12 STATION LIVE TOOL TURRET (BMT75) WITH 15HP AND 3000RPM
STEADY REST BRACKET
PROGRAMMABLE HYDRAULIC TAIL STOCK WITH INTEGRATED ROTATION MT5
COOLANT SYSTEM WITH UPGRADED 145 PSI COOLANT PUMP
LNS SUPER HEAVY DUTY CHIP CONVEYOR
AUTOMATIC TOOL SETTER
PCMCIA CARD INTERFACE
FOOT SWITCH FOR CHUCK CLAMPING
FOOT SWITCH FOR TAILSTOCK QUILL
MICROIL MIST COLLECTOR
STATUS LIGHT

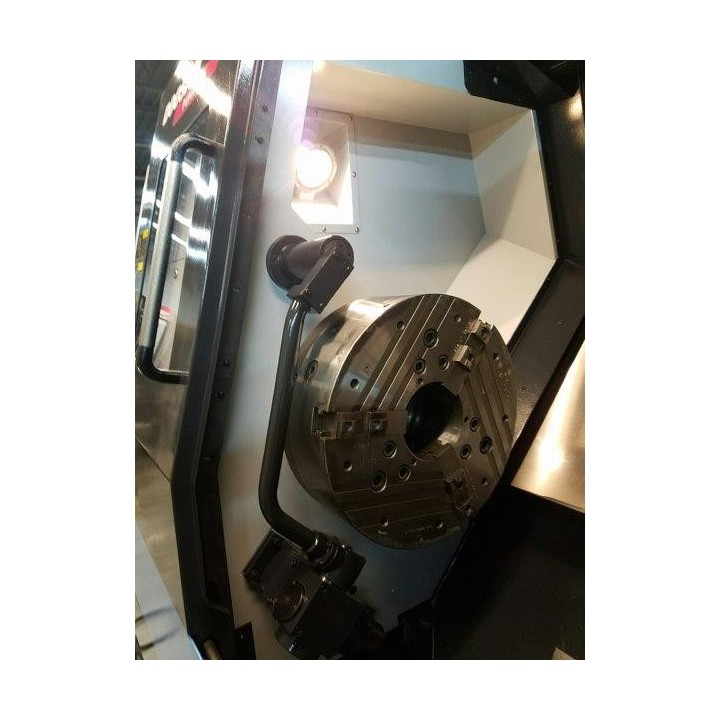

AUTOBLOK 18" BB-N-400-140 BIG BORE AIR CHUCK 5.51" BORE
