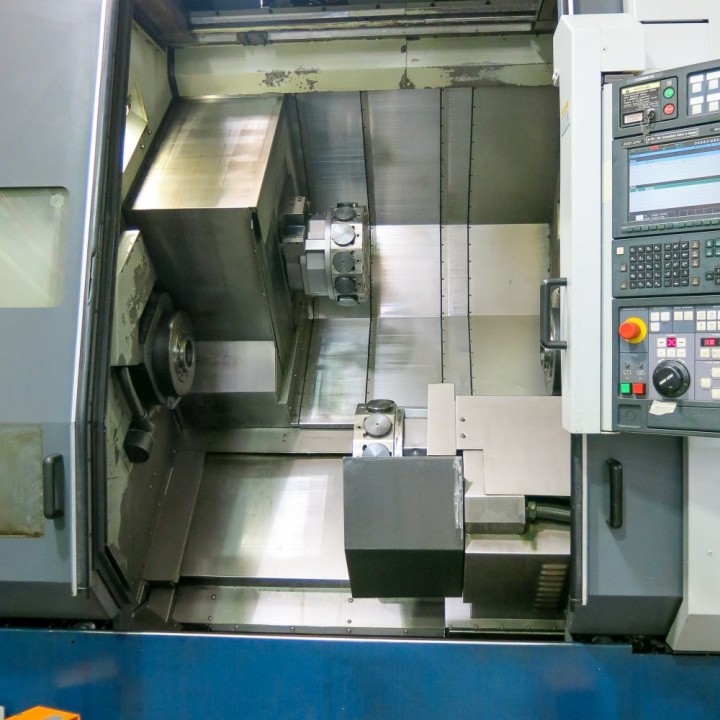

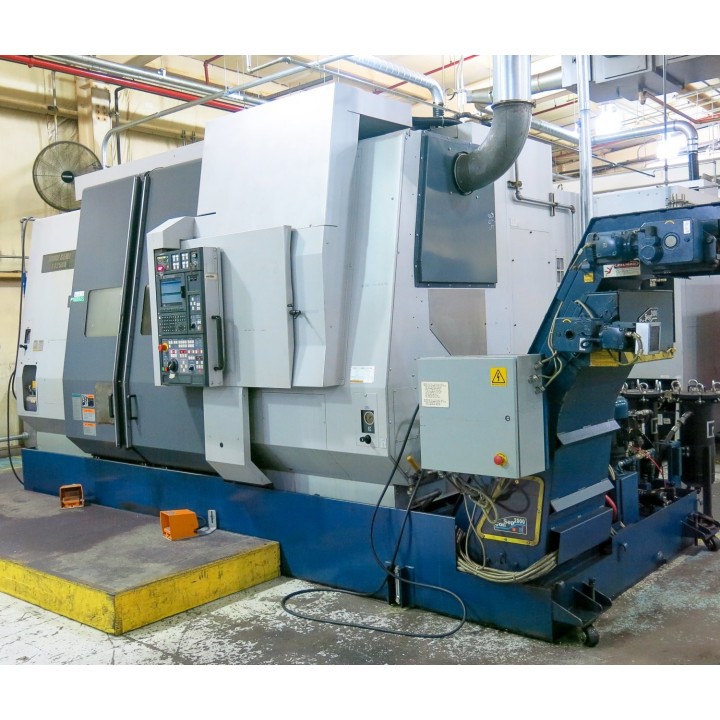

ZT2500MC

OPPOSING SPINDLE DUAL TURRET CNC LATHE WITH MILLING, live milling turning center, Max workpiece swing diameter 14.96”, Maximum distance between spindle noses. 51.18”, Maximum turning diameter. (turret) no.1 (14.96"), no.2 (14.17"), Max turning length 13.78”, Standard turning diameter 10.23"Travel:X-Axis Travel (no. 1/no. 2) 11.02" / 7.87”, Z-Axis Travel 37.8”, Spindle 2 travel (B-Axis) 38.78". Spindle 1 - Spindle speed range 40 to 4,000 RPM, through spindle hole diameter 3.46”, Min spindle indexing angle 0.001 Degrees, Spindle nose A2-8, Spindle motor 25 HP, Normal chuck size (Chuck not included). 10". Spindle 2 - Spindle speed range 40 to 4,000 RPM, through spindle hale diameter 3.46”, Min Spindle indexing angle 0.001 Degrees, Spindle nose A2-8, Spindle motor 25 HP, Normal chuck size (Chuck not included). 10". Turret 1 - Turret stations 12, Rotary tool spindle speed 4,000 RPM, Rotary tool motor 6.3 HP. Turret 2 - Turret stations 12, Rotary tool spindle speed 4,000 RPM, Rotary tool motor 6.3 HP. Floor space required: 165.5" x 108.9" x 109.3" tall, Machine weight: 29,700 lbs. Voltage: 220/3/60.

Equipped with: Mori MSC-501 CNC control (Fanuc 18) with Maps, Mayfran ConSep 2000 Chip conveyor system, Thru spindle coolant system, spindle one,8 Turning tool holders, 8 Boring bar holders, 2 Milling holders, Automatic double door, Includes transformer from 480 to 220 volts
