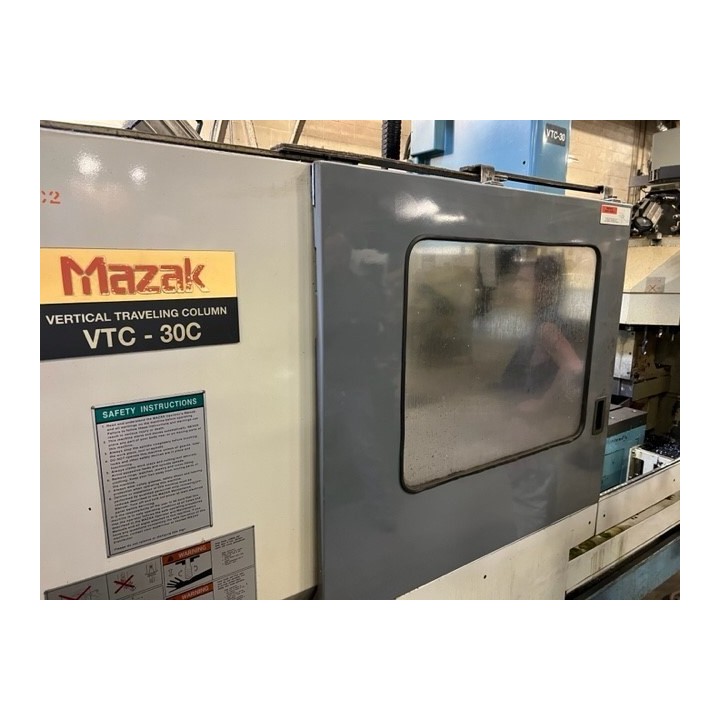

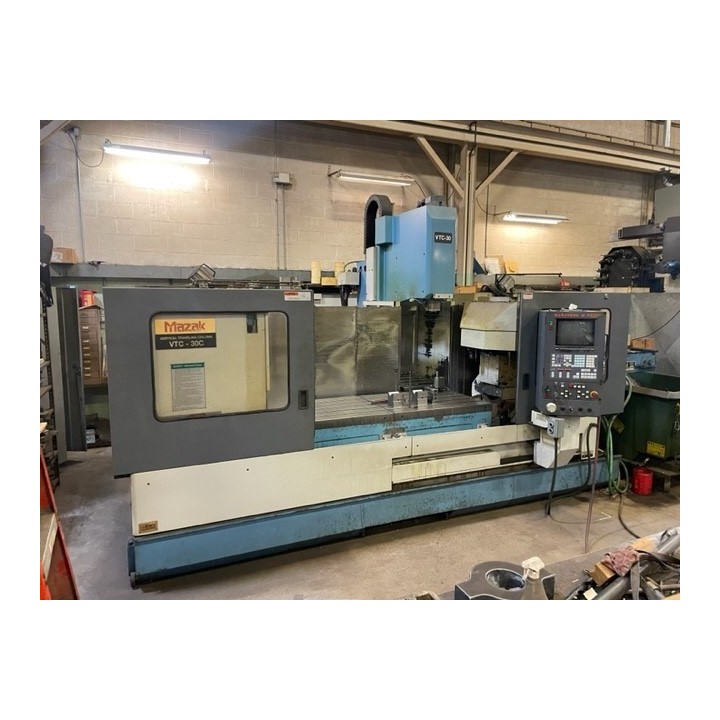

VTC 30C

Number Of Tables / Pallets 1, Table Size 78.74" X 30.01, Weight On Table 3,300 LBS, Spindle Nose To Table 4.3" ~ 30.3",X - Axis Travel 65.35", Y - Axis Travel 30", Z - Axis Travel 26", Rapid Traverse X, Y, Z 1181, 1181, 1181 IPM, Spindle Speed 8,000 RPM,Spindle Taper 40 TAPER , Main Motor 25 HP, Automatic Tool Changer 24, Tool Diameter 3.14", 4.3", Tool Length 13.78", Tool Weight 17.6 LBS, Machine Weight 26,OOO LBS, AUTOMATIC TOOL LENGTH MEASUREMENT TOOL BREAKAGE DETECTION, SYNCHRONIZED TAPPING ALL AVAILABLE MANUALS, 24 STATION ATC EIA, SHAPE COMPENSATION CORNER C/R, SHG CHIP CONVEYOR.
