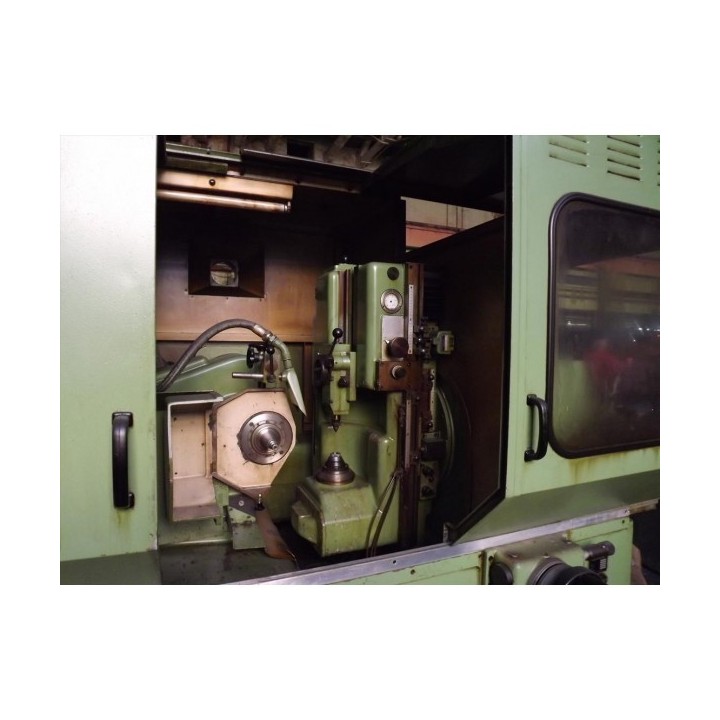

Gear grinder Reishauer AZO

Specification:
max. wheel diameter 330 mm
gear width 180 mm
max. module 6
min. module 0,5
root circle diameter 10 mm
slide stroke 180 mm
clamping length 145 - 420 mm
workpiece weight max. 60 kg
number of teeth 12 - 260
pressure angle 10 - 45 °
max. helix angle +/- 45 °
grinding worm dia. 270 - 350 mm
worm grinding width 62/84/104 mm
total power requirement 30 kW
weight of the machine ca. 4,8 t
dimensions of the machine ca. 4,0 x 2,5 x 2,1 m


Perfect completed condition,have worked very little.
