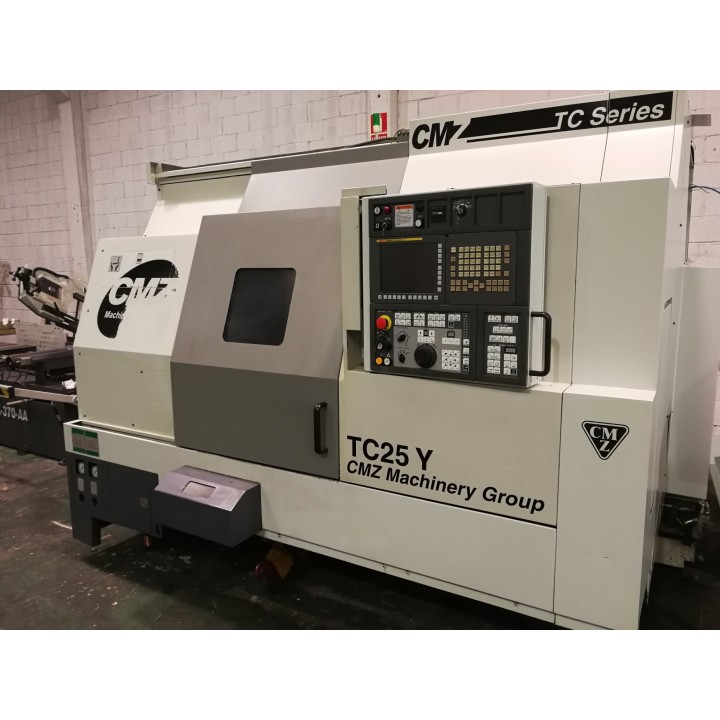

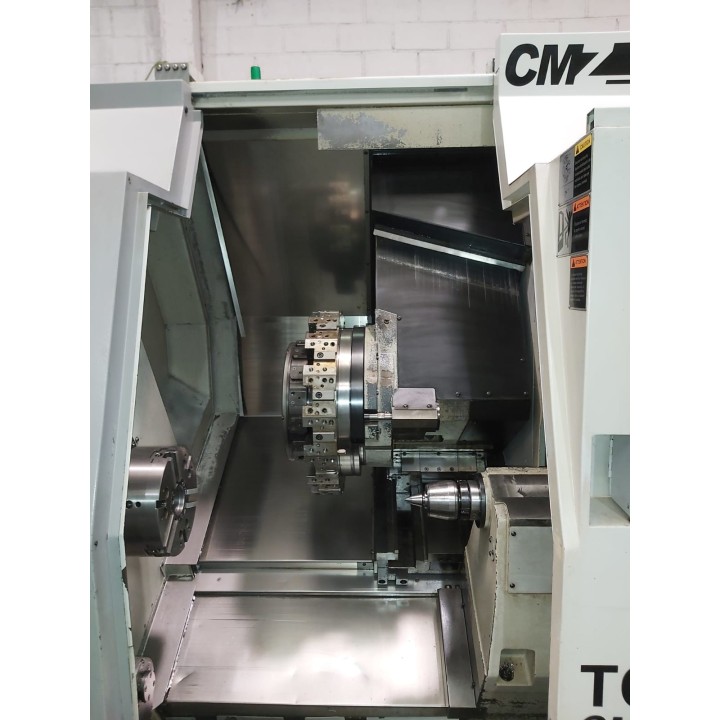

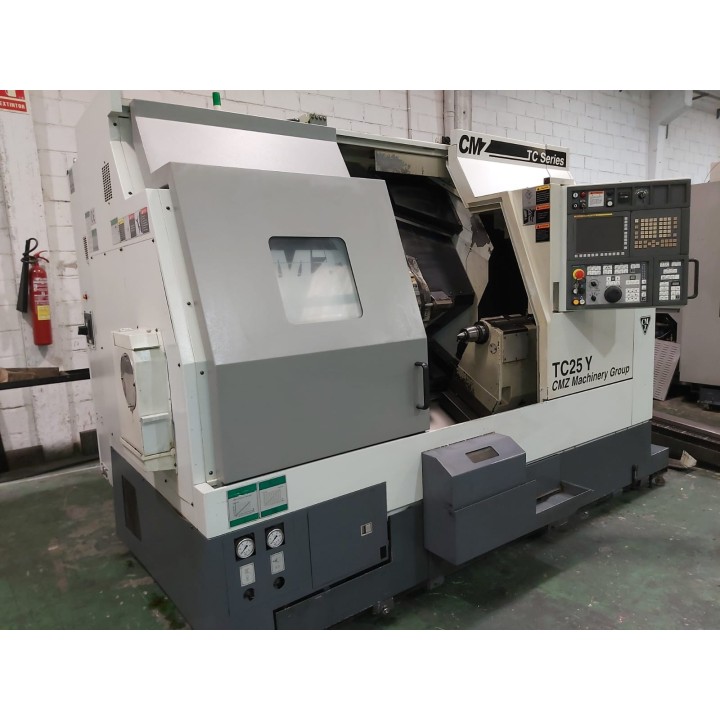

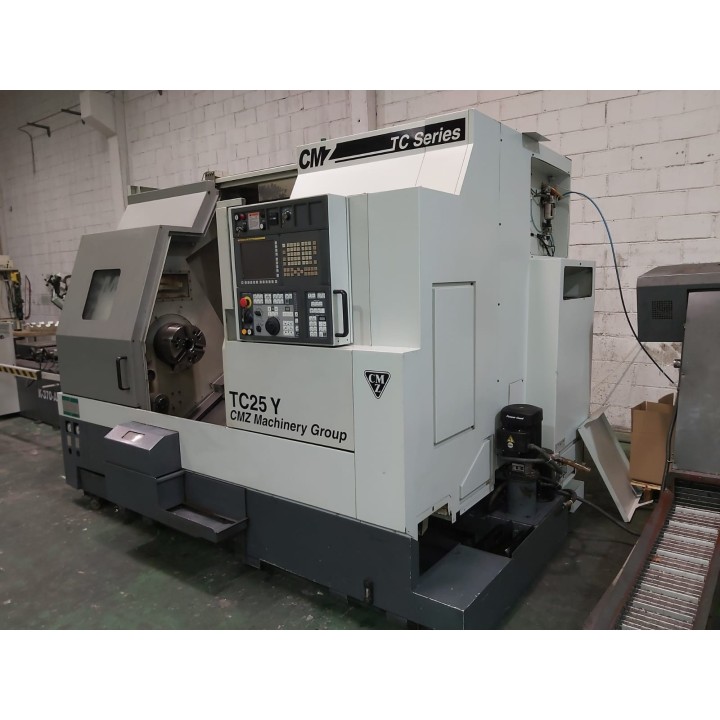

TC 25Y 800

CMZ TC 25 AND 800 LATHE
CNC FANUC 32 i
YEAR 2011
C axis and Y axis driven tools
CNC FANUC 32 i with manual guide and LC Color screen
Diameter over bed 920 mm.
Diameter over carriage 745 mm.
Turnable diameter between points 550 mm.
Maximum turning length 800 mm.
Bar passage 66 mm.
Axis travels: X- 315 mm. Z- 800 mm. Y- +80 --60 mm.
AXIS C: 360º (0.001º)
Head up to 4,000 r.p.m.
16-tool turret.
HIGH PRESSURE pump
Motor of motorized tools 16 Kw. and 4,000 r.p.m.
Hydraulic chuck, preseeter, chip extractor.
Programmable tailstock.
