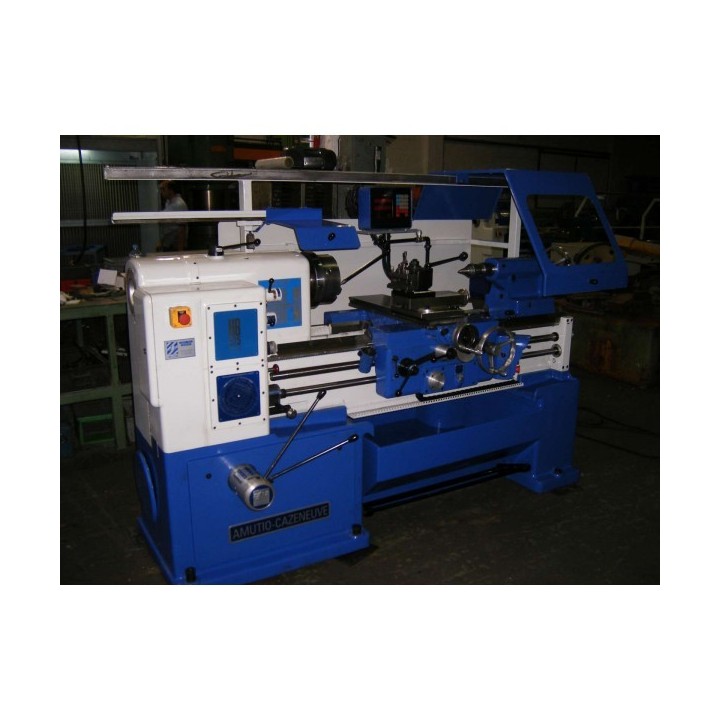

CAZENEUVE AMUTIO HB575x1000

Admitted on base diameter: 575 mm.
Diameter admitted on truck: 525 mm.
S/cross slide admitted diameter: 300 mm.
Height of points: 250 mm.
Distance between points: 1000 mm.
Inside of the head shaft diameter: 51 mm
Number of spindle head speeds: 18.
Cone of counterpoint: CM-5
Bed width: 400 mm.
Course maximum of the cross slide: 305 mm.
Course maximum of steerable carriage: 140 mm.
Course maximum of counterpoint shank: 150 mm.
Engine HP: 12, 5-10-7.
Weight of the machine: 1500Kgs.
Equipped with new dish.
Plate and truck and CE certified protections. (Optional fairing)
Display and optional bezel.
Warranty: 1 year.

18000 euros
