Fuera de stock

WD 130

tos

120.000,00 €

Impuestos excluidos

Finishing machine TOS WD 130. (Czechoslovakia) spindle Ø130

- Spindle Ø130
- Spindle carriage travel 450mm, horizontal.
- Vertical travel 2200mm, vertical.
- 1,200mm spindle outlet.
- Horizontal Travel 3,200mm.
- Travel in the rotating table bench 1,200mm.
- Load on rotating table 20,000 Kg.
- Load on fixed base 40,000 Kg.
- Machining Power 30Hp.
- Vertical Milling Head.
- Welding plate up to Ø2500mm.
- Adapter for conical alloys.
- Digital rulers in the 3 coordinate axes (centesimal precision)

Country

Argentina

Fuera de stock

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

They can be performed:

1. Plans of excellent completion over large areas.
2. High precision squaring, on blocks and various pieces.
3. Alloy up to Ø2500mm.
4. Allocation of concentric holes up to L = 4500mm, by means of the use of a mobile steady rest with a spindle extension bar.
5. Machining of radial grooves (by rotating the table and adapting the vertical milling head with variable inclination) and linear, with the use of different cylindrical or shaped milling cutters.
6. Drilled over 2000x3000mm areas with hundredth precision.
7. Drilled cooling dies from Ø11 onwards with long ends up to 2000mm.
8. Angle milling.

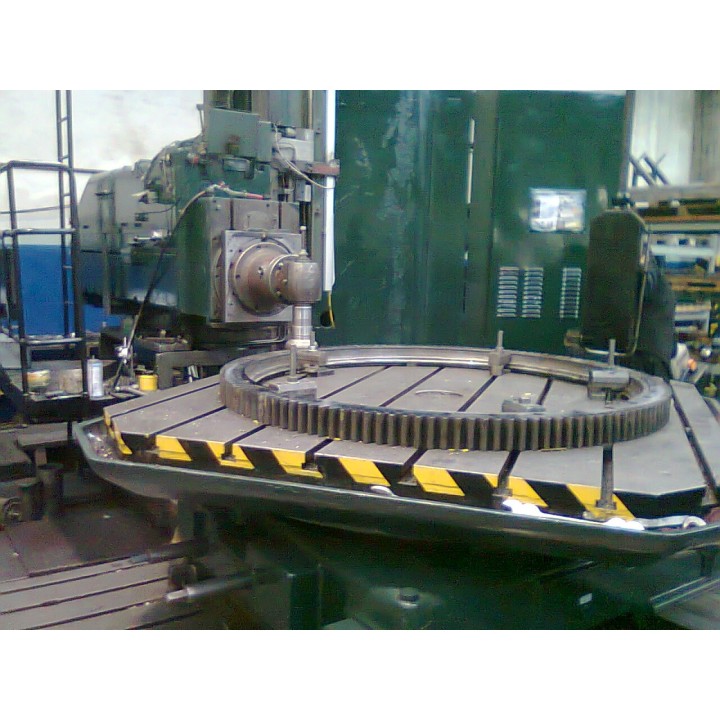

9. Milling of gears up to 20Tn. and Ø4000mm.
10. Alezado with large arms or connecting rods up to 40Tn.
11. Internal teeth of pinions or gears.
12. Alezado of pipes, elbows and accessories.

The equipment can be tested and / or see its operation (it is in perfect condition), we have a large amount of tooling.
We offer training course if necessary.
The price is in official dollars according to BNA.
