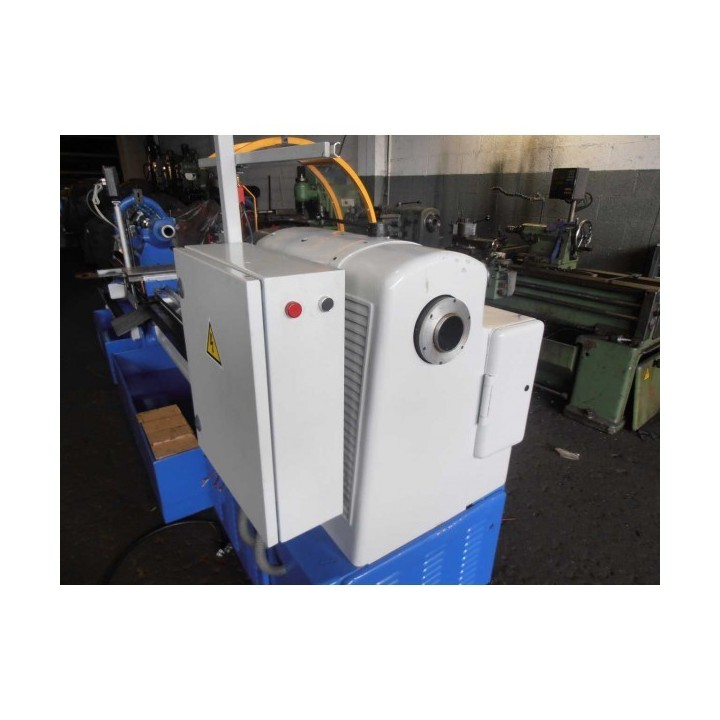

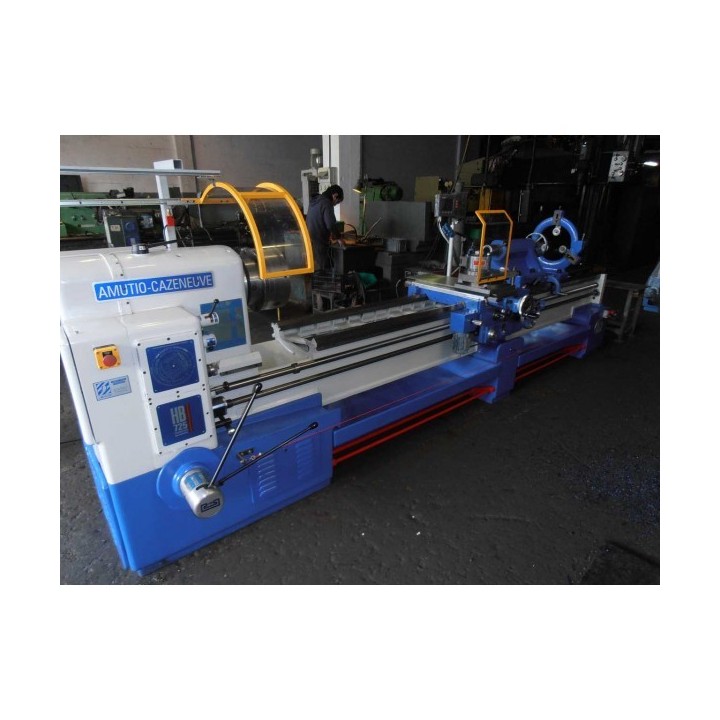

CAZENEUVE AMUTIO HB725x3000

Admitted on base diameter: 725 mm.
Diameter admitted on truck: 670 mm.
S/cross slide admitted diameter: 400 mm.
Height of points: 315 mm.
Distance between points: 3000 mm.
The tailstock spindle bore: 81 mm.
The head shaft Cone:
Cone of counterpoint: CM-6
Bed width: 505 mm
Course maximum of the cross slide: 400 mm.
Course maximum of steerable truck: 220 mm.
Course maximum of counterpoint shank: 235 mm.
Engine HP: 25-20-15.
Weight of the machine: 3700Kgs.
Dimensions of the machine: 4640 x 1450 x 1355.
Plate and truck and CE certified protections. (Optional fairing)
Equipped with new dish and bezel.
Warranty: 1 year.
Optional display.

34000 EUR
